Запчасти Case 1150D (346) - D78449 ANTICAVITATION VALVE (08) - HYDRAULICS

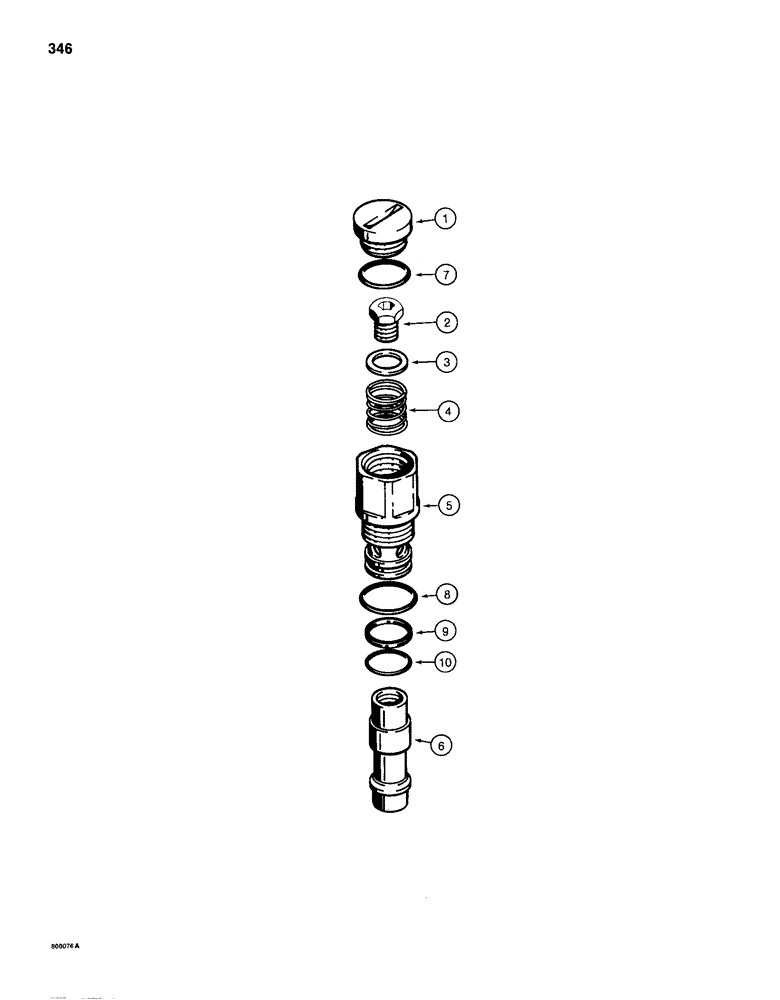

Схема запчастей Case 1150D - (346) - D78449 ANTICAVITATION VALVE (08) - HYDRAULICS
10
9
1
5
6
7
8
2
3
4

Артикул

Название

Примечание

Количество

D78449

VALVE

ANTICAVITATION VALVE ASSEMBLY - lift sections, Includes: Ref. 1 - 12

1шт.

1

R30182

PLUG

- anticavitation valve, large

1шт.

2

D78450

PLUG

- special, hex socket head

1шт.

3

D78444

WASHER

- special

1шт.

4

R30196

SPRING

- anticavitation valve

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - anticavitation valve

1шт.

6

D78451

VALVE POPPET

POPPET - anticavitation valve

1шт.

R30184

SEAL

KIT - seal, includes an O-ring and backup ring not used in this valve assembly, Includes: Ref. 7 - 12

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, valve

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- body, large

1шт.

9

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring, body

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - small, not used in this valve, not shown

1шт.

12

NSS

NOT SOLD SEPARAT

BACKUP RING - not used in this valve, not shown

1шт.

Выбрано товаров: 14
