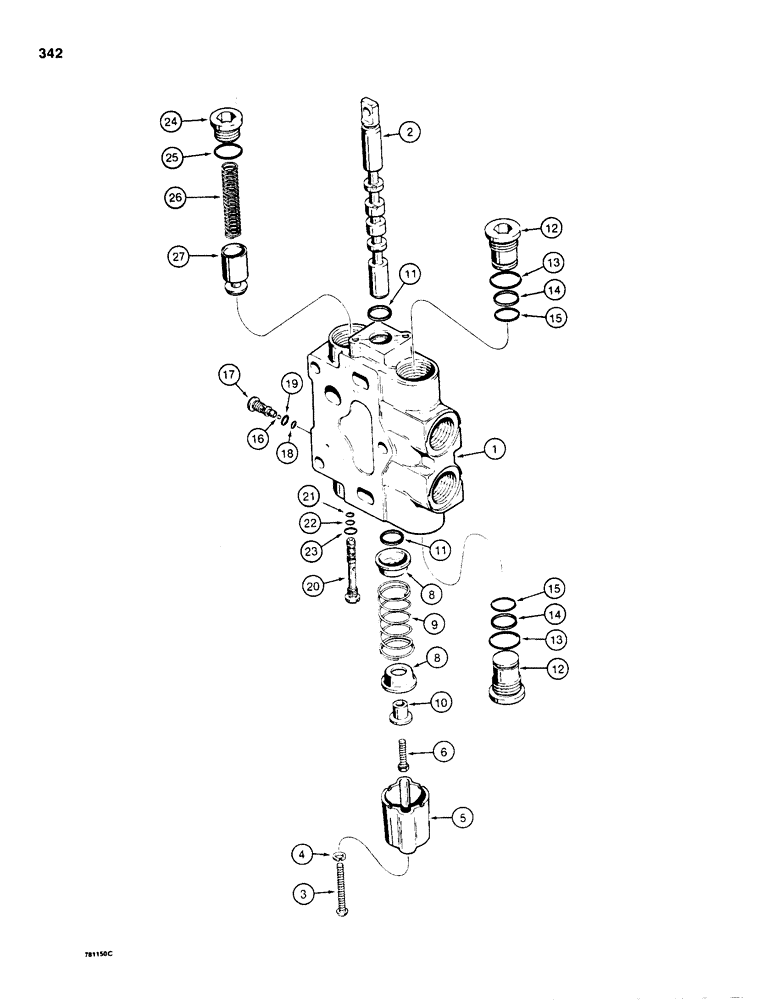

Запчасти Case 1150D (342) - D87073 CONTROL VALVE SECTION, DOZER TILT/PITCH AND ANGLE SECTION (08) - HYDRAULICS

D87073

SEGMENT

SECTION - dozer tilt/pitch and angle, identification No. 217, Includes: Ref. 1 - 27

1-2шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

D78454

HOUSING

- centering spring

1шт.

6

75-416

SCREW,Rd, 1/4" - 20 x 1"

MACHINE SCREW - round head, slotted, 1/4" - 20 NC x 1", Includes: Ref. 8 - 15

1шт.

8

R30191

WASHER

- centering spring

2шт.

9

R30192

SPRING

CENTERING SPRING - spool

1шт.

10

N7506

SPACER

- spool

1шт.

11

G46908

O-RING

- spool

2шт.

12

R30167

PLUG

- section body, Includes: P/N R30185 & Ref. 13 & 14

2шт.

R30174

GASKET KIT

KIT - seal, Includes: Ref. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

14

NSS

NOT SOLD SEPARAT

BACKUP RING - small O-ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-204

BALL

- 3/16", grade 25, chrome alloy steel, secondary shuttle

1шт.

A47210

PLUG

SHUTTLE - secondary, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 18 & 19

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

D87080

VALVE

SHUTTLE - primary, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

N6632

SEAL KIT

- seal, Includes: Ref. 21 - 23

1шт.

21

A47223

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

- inner, 7/32" (5 mm) ID

1шт.

22

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk (6 mm ID), center

1шт.

23

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- outer, 3/8" (9 mm) ID

1шт.

24

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 25 Hex Soc, 1 1/16"-12 ORB

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

26

R30189

SPRING

- load check

1шт.

27

D87082

VALVE POPPET

POPPET - load check

1шт.
