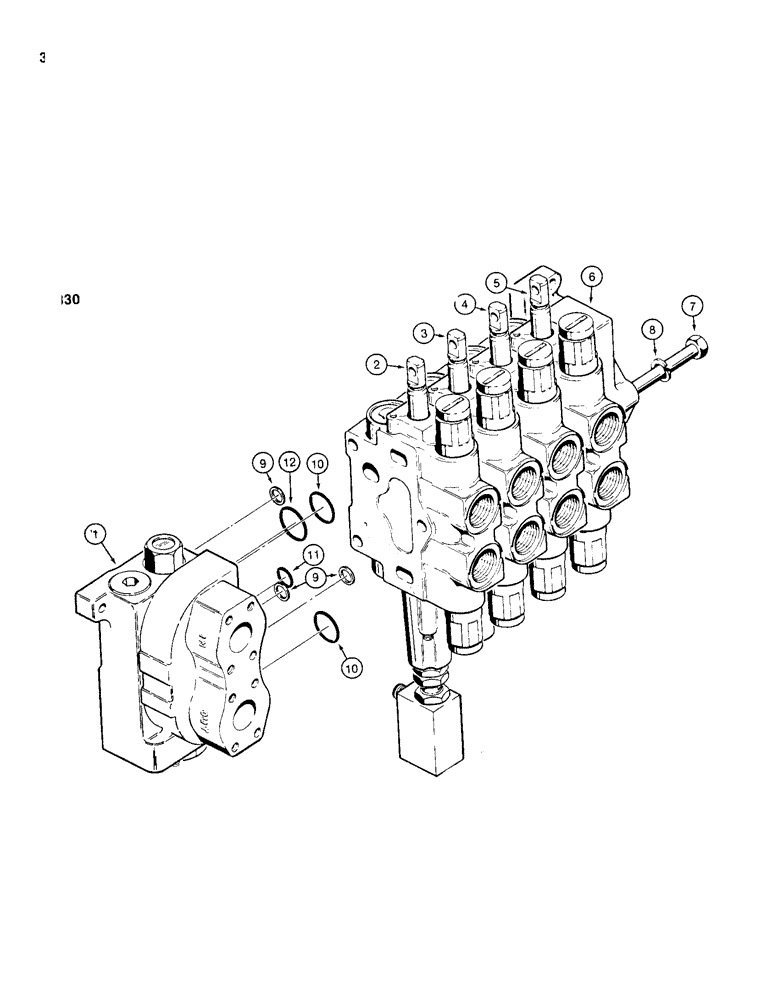

Запчасти Case 1150D (330) - R45492 4-SPOOL VALVE LOADER W/RIPPER & CLAM BUCKET (08) - HYDRAULICS

R45492

VALVE

CONTROL VALVE ASSEMBLY - four spool, loader models, Includes: Ref. 1 - 12

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification No. 106, parts list Fig. 332

1шт.

2

D87083

VALVE

SECTION - bucket tilt, identification No. 409, parts list Fig. 338

1шт.

3

D87084

VALVE

SECTION - lift, identification No. 311, parts list Fig. 336

1шт.

4

D87085

VALVE

SECTION - clam bucket, identification No. 218, parts list Fig. 334

1шт.

5

D87076

VALVE

SECTION - ripper, identification No. 216, parts list Fig. 334

1шт.

6

D87072

COVER ASSY

COVER - end

1шт.

7

D74375

BOLT

- special

3шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 10 - 12

5шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.
