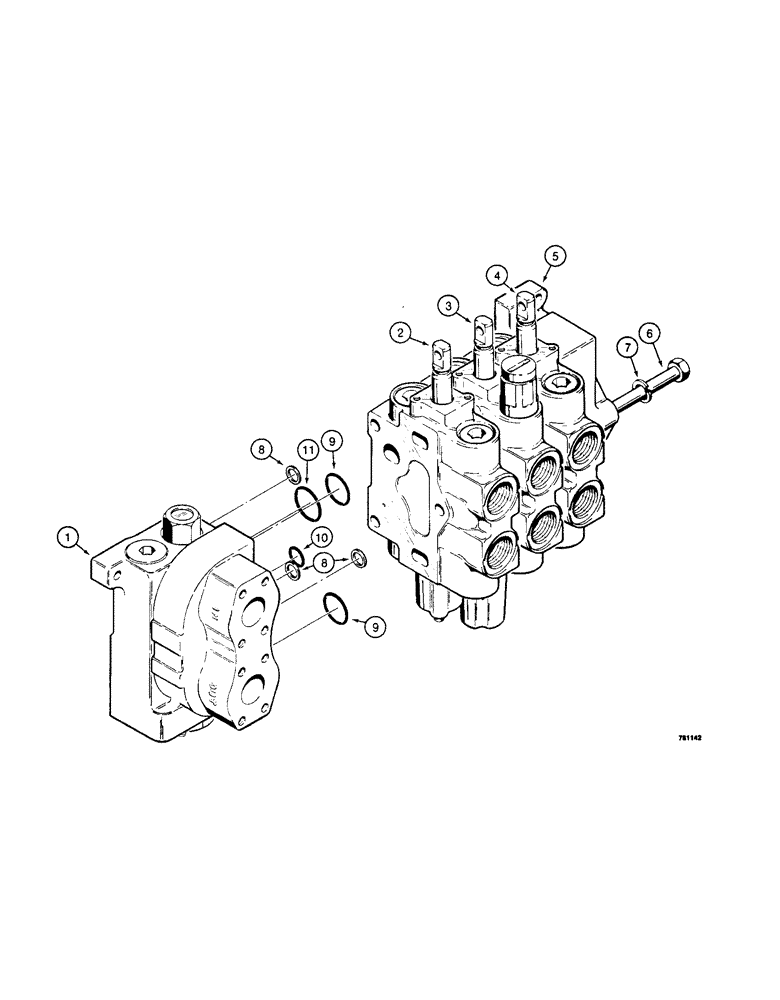

Запчасти Case 1150D (328[1]) - R45516 THREE SPOOL VALVE ANGLE TILT PITCH DOZER (08) - HYDRAULICS

R45516

VALVE

CONTROL VALVE ASSEMBLY - three spool, dozer models, Includes: Ref. 1 - 11

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification No. 106, parts list Fig. 332

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt and pitch, identification No. 217, parts list Fig. 342

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification No. 307, parts list Fig. 340

1шт.

4

D87073

SEGMENT

SECTION - dozer angle, identification No. 217, parts list Fig. 342

1шт.

5

D87072

COVER ASSY

COVER - end

1шт.

6

D74374

BOLT

- special

3шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections .0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.
