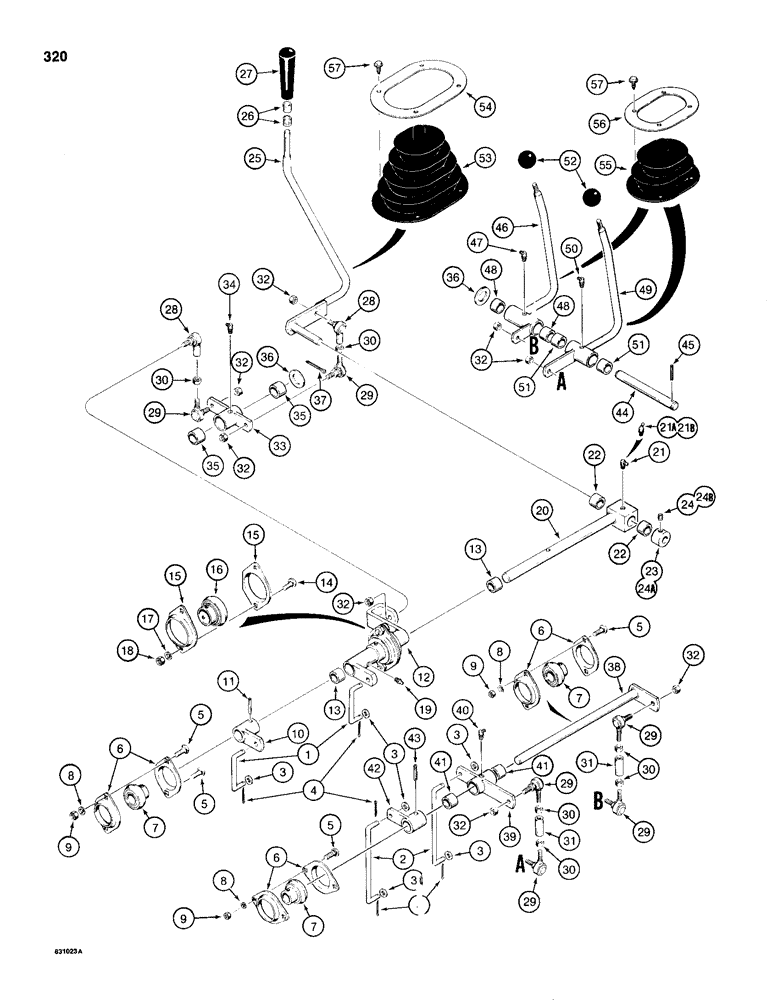

Запчасти Case 1150D (320) - EQUIPMENT CONTROL VALVE AND LEVERS, THREE CONTROL LEVERS -4 SPOOL VALVE (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components, Fig. 330, for mounting see Fig. 312

1шт.

1

R48770

LINK

- short, at control valve spool

2шт.

2

R48771

LINK

- long, at control valve spool

2шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

8шт.

5

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

6шт.

6

F13360

FLANGE

- ball bearing

6шт.

7

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

3шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

9

9635082

NUT,5/16" - 18, Gr 5

6шт.

10

R27331

ELECTRICAL WIRE

BELLCRANK - lower shaft, rear

1шт.

11

138-304

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

R52145

TUBE

BELLCRANK ASSEMBLY - with ball bearing, lower shaft, front, Includes: Ref. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - bellcrank

1шт.

13

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

14

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

15

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

16

NSS

NOT SOLD SEPARAT

BALL BEARING - bellcrank

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

20

R52147

SHAFT

- lower, Includes: Ref. 21 - 22

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

21a

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type, if used

1шт.

21b

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

if used 65º, 5/16" NPT x .70" lg, Drive

1шт.

22

R52130

BRONZE BUSHING

BUSHING - bronze, 1" long, replaces 3/4" long bushing used on some models

2шт.

23

D81756

COLLAR

ASSEMBLY - locking, includes 1/4" diameter set screw, no longer used, replace with R42435 collar assembly (items 24A and 24B)

1шт.

24

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket headless, 1/4" - 20 NC x 1/4", cup point, if used

1шт.

24a

R42435

COLLAR

ASSEMBLY - locking, includes 5/16" diameter set screw, Includes: Ref. 24B

1шт.

24b

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

25

R38652

LEVER

CONTROL LEVER - lift

1шт.

26

R38655

RING

BUSHING - knob, control lever

2шт.

27

R38654

KNOB

- control lever

1шт.

28

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - female

2шт.

29

R47939

ROD

BALL JOINT - male

6шт.

30

129-122

NUT,5/16"-24, G5

6шт.

31

R27647

LINK

- ball joints

2шт.

32

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

8шт.

33

R52151

LINKAGE YOKE

LEVER - ball joints, Includes: Ref. 34 & 35

1шт.

34

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

35

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4" long, replaces 1/2" long bushing used on some models

2шт.

36

D35268

SHIM,1/32" Thk

1шт.

37

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

38

R45645

SHAFT

- upper

1шт.

39

R52152

ROCKER

BELLCRANK - upper shaft, front, long link to control valve, Includes: Ref. 40 & 41

1шт.

40

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

41

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

42

R27689

LEVER

BELLCRANK - upper shaft, long link to control valve

1шт.

43

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

44

R47819

SHAFT

- auxiliary control levers

1шт.

45

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

46

R52153

LEVER

CONTROL LEVER - auxiliary, center, Includes: Ref. 47 & 48

1шт.

47

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

48

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

49

R52154

LEVER

CONTROL LEVER - auxiliary, right-hand, Includes: Ref. 50 & 51

1шт.

50

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

51

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

52

70213

KNOB

- control lever

2шт.

53

R47896

BOOT

- lift lever, if used

1шт.

54

R47893

ANCHOR

RETAINER - boot, lift lever, if used

1шт.

55

R47897

BELLOWS

BOOT - auxiliary control lever, if used

2шт.

56

R47894

ANCHOR

RETAINER - boot, auxiliary control lever, if used

2шт.

57

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 x 1/2", plated

12шт.
