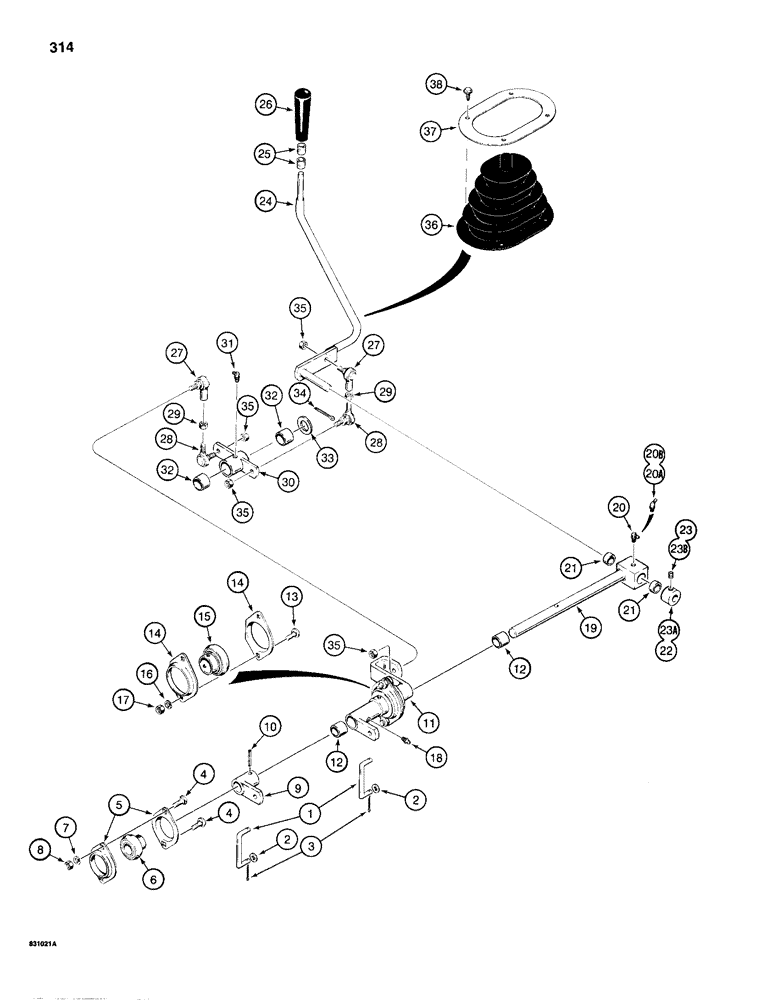

Запчасти Case 1150D (314) - EQUIPMENT CONTROL VALVE AND LEVERS, ONE LEVER - TWO SPOOL VALVE (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components , Fig. 324, for mounting see Fig. 312

1шт.

1

R48770

LINK

- at control valve spool

2шт.

2

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

3

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

4

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

5

F13360

FLANGE

- ball bearing

2шт.

6

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

R27331

ELECTRICAL WIRE

BELLCRANK - rear

1шт.

10

138-304

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

R52145

TUBE

BELLCRANK ASSEMBLY - with ball bearing, front, Includes: Ref. 11 - 18

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - bellcrank

1шт.

12

R52129

BRONZE BUSHING

BUSHING - bronze

2шт.

13

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

14

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

15

NSS

NOT SOLD SEPARAT

BALL BEARING - bellcrank

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

19

R52147

SHAFT

- bellcrank, Includes: Ref. 20 - 21

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

20a

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type, if used

1шт.

20b

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

if used 65º, 5/16" NPT x .70" lg, Drive

1шт.

21

R52130

BRONZE BUSHING

BUSHING - bronze, 1" long, replaces 3/4" long bushing used on some models

2шт.

22

D81756

COLLAR

ASSEMBLY - locking, includes 1/4" diameter set screw, no longer used, replace with R42435 collar assembly (Ref. 23A & 23B) Includes: Ref. 23

1шт.

23

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket headless, 1/4" - 20 NC x 1/4", cup point, if used

1шт.

23a

R42435

COLLAR

ASSEMBLY - locking, includes 5/16" diameter set screw, Includes: Ref. 23B

1шт.

23b

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

24

R38652

LEVER

CONTROL LEVER - lift

1шт.

25

R38655

RING

BUSHING - knob, control lever

2шт.

26

R38654

KNOB

- control lever

1шт.

27

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - female

2шт.

28

R47939

ROD

BALL JOINT - male

2шт.

29

129-122

NUT,5/16"-24, G5

2шт.

30

R52151

LINKAGE YOKE

LEVER - ball joints, Includes: Ref. 31 & 32

1шт.

31

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

32

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4" long, replaces 1/2" long bushing used on some models

2шт.

33

D35268

SHIM,1/32" Thk

1шт.

34

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

35

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

4шт.

36

R47896

BOOT

- control lever, if used

1шт.

37

R47893

ANCHOR

RETAINER - control lever boot, if used

1шт.

38

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 x 1/2", plated

4шт.
