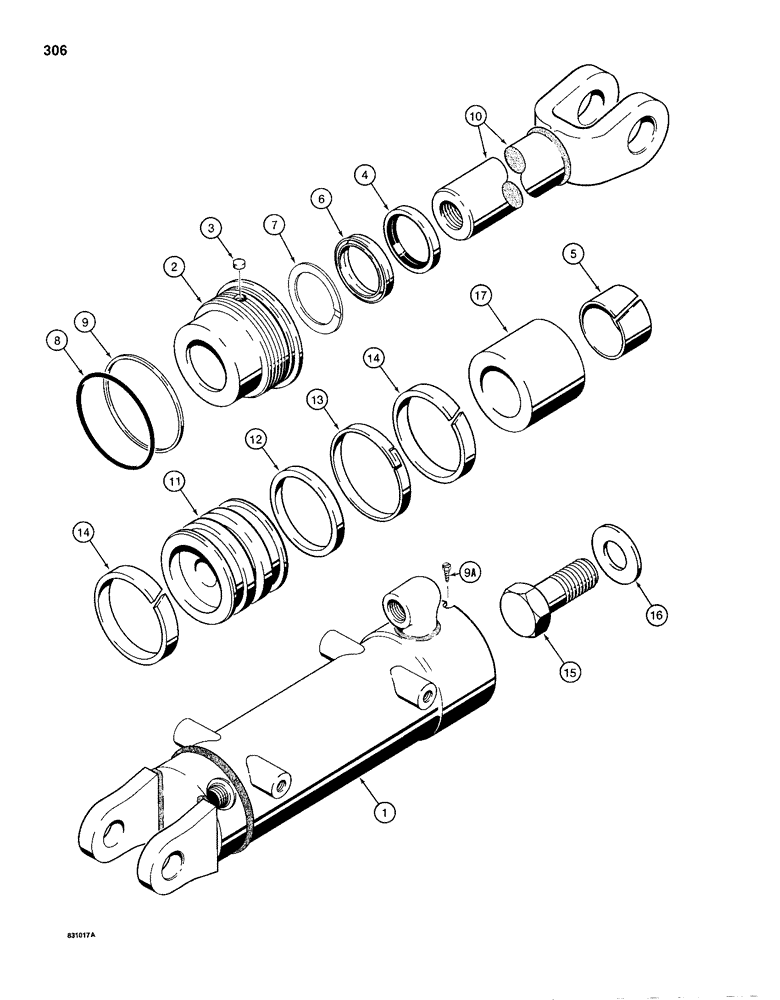

Запчасти Case 1150D (306) - G105458 DOZER TILT CYLINDERS, ANGLE TILT PITCH DOZER MODELS (08) - HYDRAULICS

G105458

CYLINDER ASSY.

CYLINDER ASSEMBLY - tilt, 4" (102 mm) ID x 5-3/16" (132 mm) stroke

2шт.

1

G105459

TUBE,17.96" L

- cylinder

1шт.

G104941

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N G109505

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N G109505

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109505

1шт.

6

G100779

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

7

G109086

RING

SEAL - piston rod, narrow

1шт.

Part of seal kit P/N G109505

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109505

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of seal kit P/N G109505

1шт.

9a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

10

G105466

PISTON ROD

ROD - piston, 2-1/4" (57 mm) diameter

1шт.

11

G100686

PISTON

- cylinder

1шт.

12

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109505

1шт.

13

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G109505

1шт.

14

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G109505

1шт.

15

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

16

G105980

WASHER

- hardened

1шт.

17

G34056

BUSHING

SPACER - piston and gland

1шт.

G109505

KIT

- seal, Includes: Refs. 4, 5, 6, 7, 8, 9, 12, 13 and 14

1шт.
