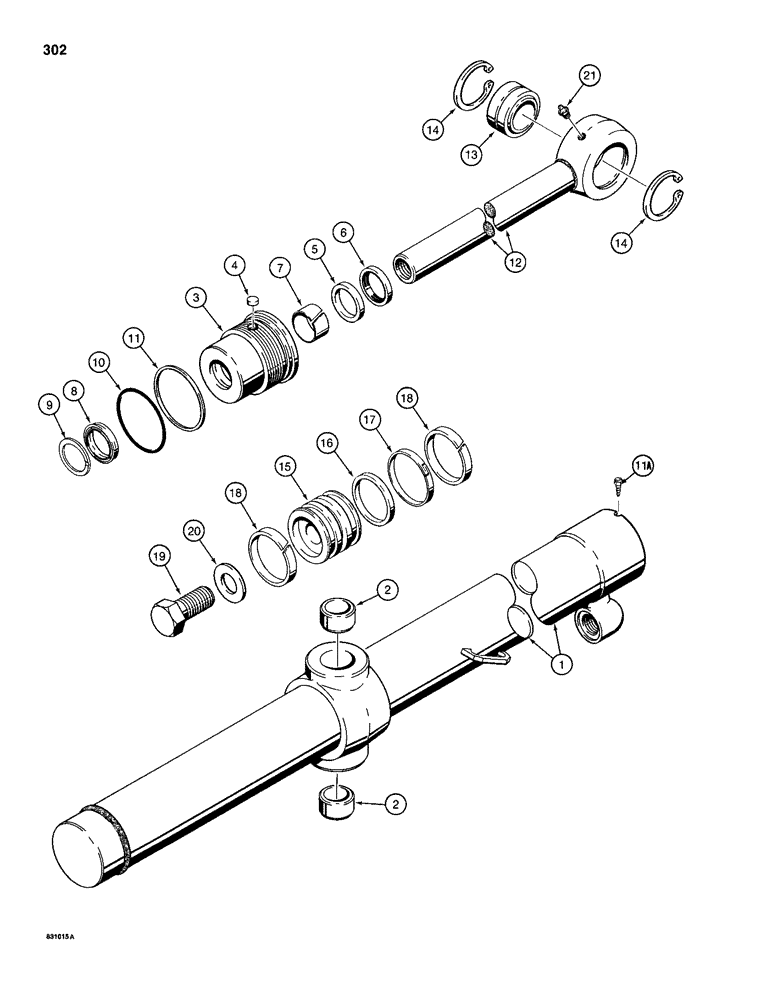

Запчасти Case 1150D (302) - G101270 AND G101271 DOZER LIFT CYLINDERS, ANGLE TILT PITCH DOZER MODELS (08) - HYDRAULICS

G101270

CYLINDER

ASSEMBLY - dozer lift, right-hand, 3-1/2" (89 mm) ID x 36-11/16" (932 mm) stroke, Includes: Ref. 1 - 21

1шт.

G101271

CYLINDER

ASSEMBLY - dozer lift, left-hand, 3-1/2" (89 mm) ID x 36-11/16" (932 mm) stroke, Includes: Ref. 1 - 21

1шт.

1

G34080

CYLINDER,43.83" L

TUBE - G101270 cylinder, right-hand

1шт.

1

G34081

TUBE,43.83" L

- G101271 cylinder, left-hand, Includes: Ref. 2

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube

2шт.

G104276

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

5

G34600

RING

RETAINING RING - gland (replaced NSS)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G109471

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G109471

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109471

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of seal kit P/N G109471

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109471

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G109471

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G34078

PISTON

ROD - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 13 & 14

1шт.

13

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod, self-aligning

1шт.

14

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , bushing 2.44", Int, #244

2шт.

15

G100698

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109471

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G109471

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of seal kit P/N G109471

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(super fine thread) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G109471

GASKET KIT

KIT - seal, Includes: Refs. 6, 7, 8, 9, 10, 11, 16, 17 and 18

1шт.
