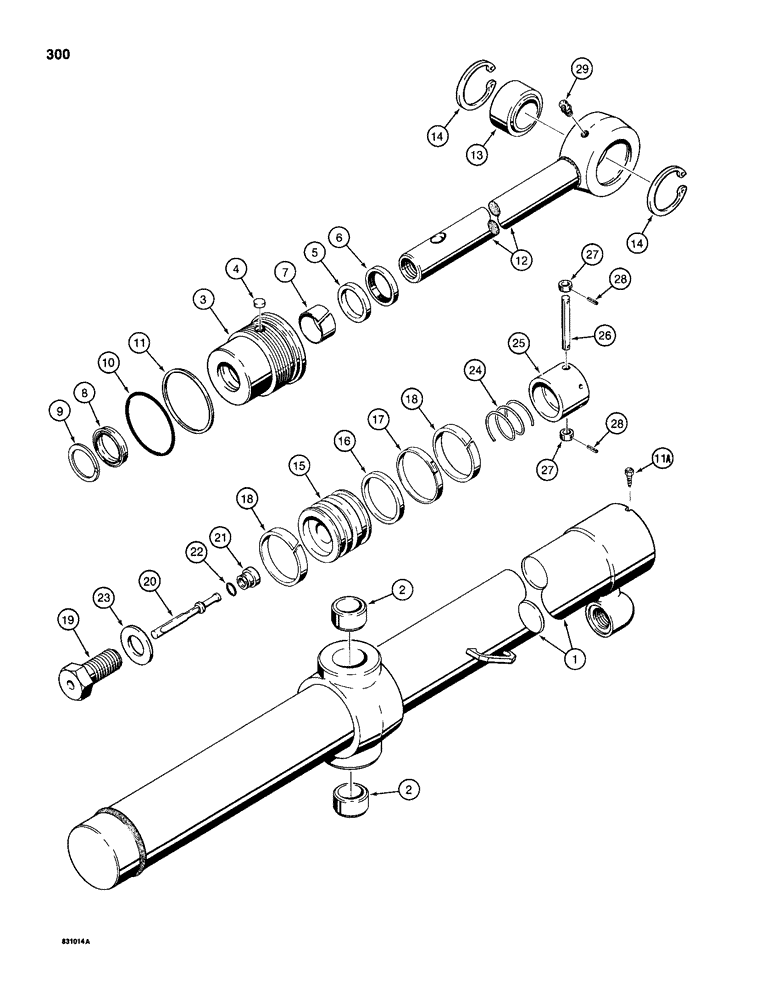

Запчасти Case 1150D (300) - G103102 AND G103103 DOZER LIFT CYLINDERS, TILT DOZER MODELS (08) - HYDRAULICS

G103102

CYLINDER

ASSEMBLY - lift, right-hand, 3-1/2" (89 mm) ID x 39-3/16" (996 mm) stroke, Includes: Ref. 1 - 29

1шт.

G103103

CYLINDER

ASSEMBLY - lift, left-hand, 3-1/2 (89 mm) ID x 39-3/16" (996 mm) stroke, Includes: Ref. 1 - 29

1шт.

1

G34070

TUBE,48.54" L

- G103102 cylinder, right-hand

1шт.

1

G34071

TUBE

- G103103 cylinder, left-hand

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube

2шт.

G104276

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 -11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

5

G34600

RING

RETAINING RING - gland (replaced NSS)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G109471

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G109471

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109471

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of seal kit P/N G109471

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109471

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G109471

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G34074

PISTON

ROD - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 13 & 14

1шт.

13

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

BUSHING - self-aligning

1шт.

14

F61018

SNAP RING,M73, Int

RING, Snap, , bushing 2.812", Int, #281

2шт.

15

G100696

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

BACKUP RING - piston seal

1шт.

Part of seal kit P/N G109471

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

SEAL - piston

1шт.

Part of seal kit P/N G109471

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of seal kit P/N G109471

1шт.

G103099

LOCK VALVE

BYPASS VALVE ASSEMBLY - cylinder, Includes: Ref. 19 - 22

1шт.

19

G32723

BOLT

- special

1шт.

20

G104187

SPOOL

PLUNGER - bypass valve

1шт.

21

G32722

BUSHING

SEAT - plunger

1шт.

22

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- plunger seat

1шт.

23

G32351

WASHER

- hardened

1шт.

24

G101523

SPRING

- cylinder

1шт.

25

G100086

BLOCK

RETAINER - spring

1шт.

26

G100087

PIN

- retainer

1шт.

27

G34976

BUSHING

COLLAR - pin

2шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G109471

GASKET KIT

KIT - seal, Includes: Refs. 6, 7, 8, 9, 10, 11, 16, 17 and 18

1шт.
