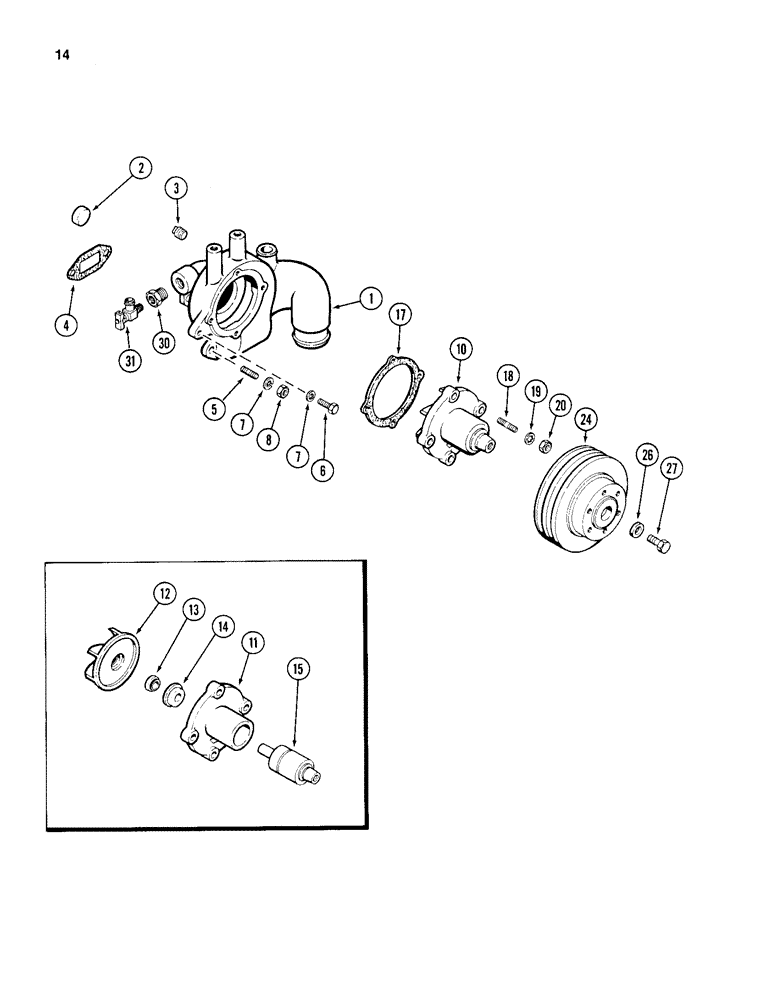

Запчасти Case 1150D (014) - WATER PUMP, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A148968
HOUSING
BODY ASSEMBLY - water pump, Includes: Ref. 2
1шт.
2
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - cup type, 1-3/8 inch (35 mm)
1шт.
3
221-5
DRAIN PLUG,Sq Hd, 1/4"-14 NPTF
PLUG - square head, 3/4 inch PT
1шт.
4
A58649
GASKET
GASKET -, Serial Range: body-block
1шт.
5
G102128
BOLT
STUD - pump body mounting, 3/8 NC x 1-17/32 inch
2шт.
6
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
7
92-6
LOCK WASHER,3/8"
LOCK WASHER, , plated 3/8"
4шт.
8
25-106
NUT,3/8"-16, G5
NUT - hex, 3/8 inch NC
2шт.
A48369
PUMP
KIT - water pump, remanufactured (Includes Ref 17)
1шт.
10
A157145
PUMP, WATER
PUMP ASSEMBLY - water, new, Includes: Ref. 11 - 15
1шт.
10
1342818C1R
REMAN-WATER PUMP
Remanufactured Water Pump
1шт.
10
A48335
CORE-WATER PUMP
Return Part Number - use this part no. to return water pump core for credit
1шт.
11
NSS
NOT SOLD SEPARAT
HOUSING - pump body (Reference No. A58642)
1шт.
12
A152126
IMPELLER
IMPELLER - water
1шт.
13
A34000
SEAL
SEAT - impeller
1шт.
14
A142499
SEAL
SEAL - pump shaft
1шт.
15
A156995
BEARING
BEARING ASSEMBLY - pump shaft
1шт.
17
A58646
GASKET
GASKET -, Serial Range: pump-body
1шт.
18
A166044
STUD
STUD - pump to body, 3/8 NC x 1-7/16 inch
4шт.
19
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
20
25-106
NUT,3/8"-16, G5
NUT - hex, 3/8 inch NC
4шт.
24
A65124
PULLEY
PULLEY - water pump (Natural Aspirated Loader and Dozer)
1шт.
24
A65124
PULLEY
PULLEY - water pump (Turbocharged Loader)
1шт.
24
A65833
PULLEY
PULLEY - water pump (Turbocharged Dozer)
1шт.
26
A155047
RING,13.08mm ID x 26.92mm OD x 8.69mm Thk
WASHER - pulley
1шт.
27
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
BOLT - hex, 1/2 NF x 1-1/4 inch
1шт.
30
221-1092
REDUCER,Hex, 3/4" x 3/8" NPT
REDUCER, , Bushing Hex, 3/4" x 3/8" NPT
1шт.
31
A16764
VALVE
VALVE ASSEMBLY - shut off
1шт.
Выбрано товаров: 28
