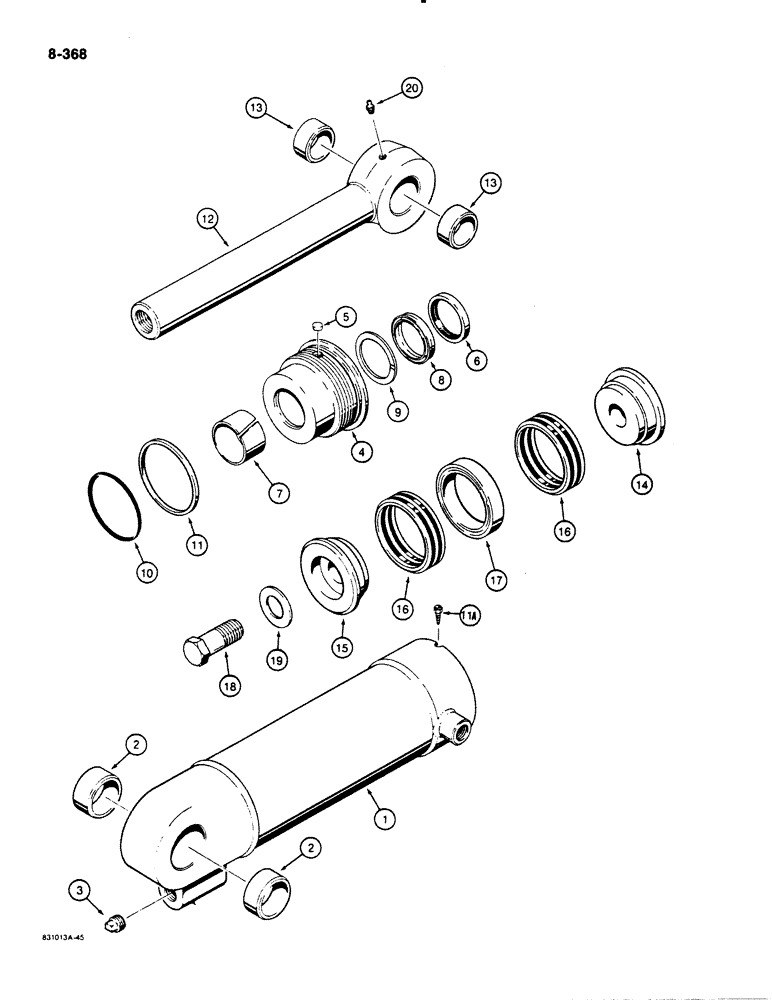

Запчасти Case 1150D (298) - G34638 AND G34639 CLAM BUCKET CYLINDERS (08) - HYDRAULICS

G34638

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/2" (114 mm) ID x 10-7/16" (265 mm) stroke, clam bucket, right-hand, Includes: Ref. 1 - 20

1шт.

G34639

CYLINDER

ASSEMBLY - 4-1/2" (114 mm) ID x 10-7/16" (265 mm) stroke, clam bucket, left-hand, Includes: Ref. 1 - 20

1шт.

1

G34640

TUBE,19.89" L

- G34638 cylinder, right-hand, Includes: Ref. 2 and 3

1шт.

1

G34641

JACK BODY,4.495" ID x 5.12" OD x 19.89" L

TUBE - G34639 cylinder, left-hand, Includes: Ref. 2 and 3

1шт.

2

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

3

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

1шт.

G104950

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G105520

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit P/N G105520

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G105520

1шт.

8

G100779

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G109086

RING

SEAL - piston rod, narrow

1шт.

Part of Seal Kit P/N G105520

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105520

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105520

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G34024

ROD

- piston, 2-1/4" (57 mm) diameter, Includes: Ref. 13

1шт.

13

D38478

BUSHING

- piston rod

2шт.

14

D46425

PISTON

- split, rod end

1шт.

15

D46931

PISTON

- split, bolt end

1шт.

16

D47205

PACKING

- piston

2шт.

Part of Seal Kit P/N G105520

1шт.

17

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - packing

1шт.

18

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8, Replaces 2-3/4" long bolt used in some cylinders

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, replaces 45 degree grease fitting used on some models

1шт.

G105520

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, Ref. 8 P/N G107924, Ref. 9, 10, 11 and 16

1шт.
