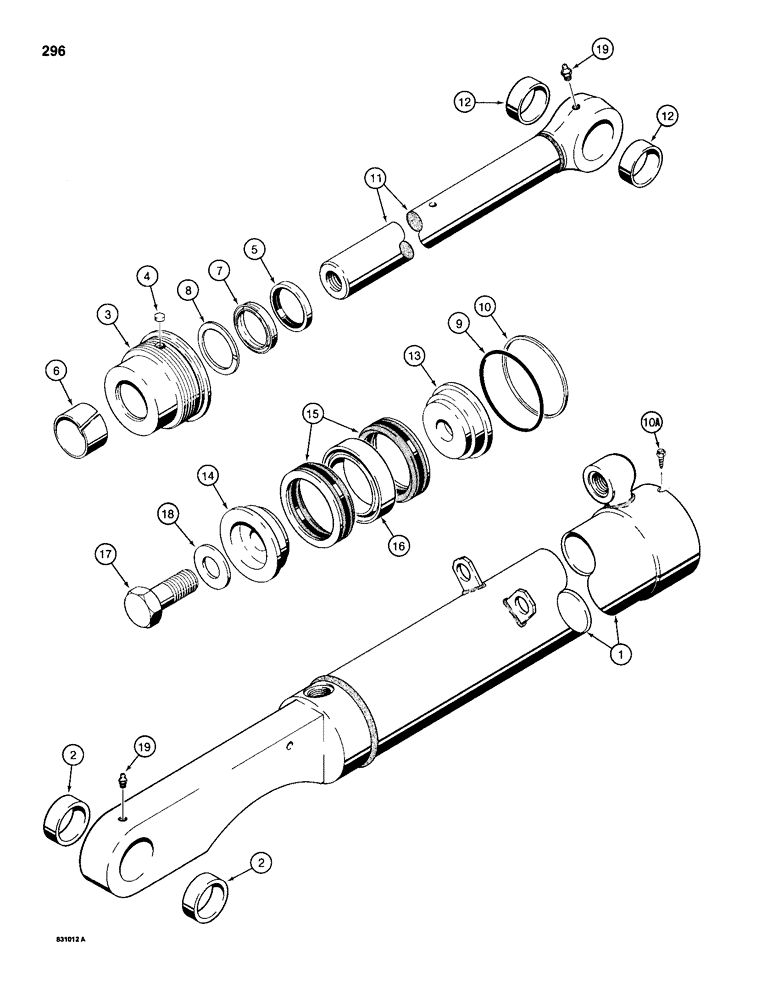

Запчасти Case 1150D (296) - G104587 LOADER BUCKET CYLINDER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G104587
CYLINDER ASSEMBLY - bucket, 4-1/2" (114 mm) ID x 32-1/4" (819 mm) stroke, Includes: Ref. 1 - 19
2шт.
1
G104692
TUBE
- cylinder, Includes: Ref. 2
1шт.
2
D33678
BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L
- tube
2шт.
G104950
GLAND
ASSEMBLY - cylinder, Includes: Ref. 3 - 10
1шт.
3
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
4
G102569
PLUG
- nylon, thread-locking, gland, if used
1шт.
5
D95145
WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W
WIPER - piston rod
1шт.
Part of seal kit P/N G105520
1шт.
6
G102426
BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L
- Center
1шт.
Part of seal kit P/N G105520
1шт.
7
G107924
SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk
U-CUP SEAL - piston rod, wide, with O-ring
1шт.
Part of seal kit P/N G105520
1шт.
7
G100779
SEAL
U-CUP SEAL - piston rod, service option - severe heat or cold
1шт.
8
G109086
RING
SEAL - piston rod, narrow
1шт.
Part of seal kit P/N G105520
1шт.
9
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
- gland
1шт.
Part of seal kit P/N G105520
1шт.
10
G32284
BACK-UP RING
BACKUP RING - gland O-ring
1шт.
Part of seal kit P/N G105520
1шт.
10a
187-1524
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used
1шт.
11
G34764
ROD
- piston, 2-1/4" (57 mm) diameter, Includes: Ref. 12
1шт.
12
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- piston rod
2шт.
13
D46425
PISTON
- split, rod end
1шт.
14
D46931
PISTON
- split, bolt end
1шт.
15
D47205
PACKING
- piston
2шт.
Part of seal kit P/N G105520
1шт.
16
D47210
BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk
RING - center, packing
1шт.
17
28-2052
BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8
- hex head, 1-1/4"-12 NF x 3-1/4", grade 8
1шт.
18
G105980
WASHER
- hardened
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
2шт.
G105520
GASKET KIT
KIT - seal, Includes: Refs. 5, 6, 7, 8, 9, 10 and 15
1шт.
