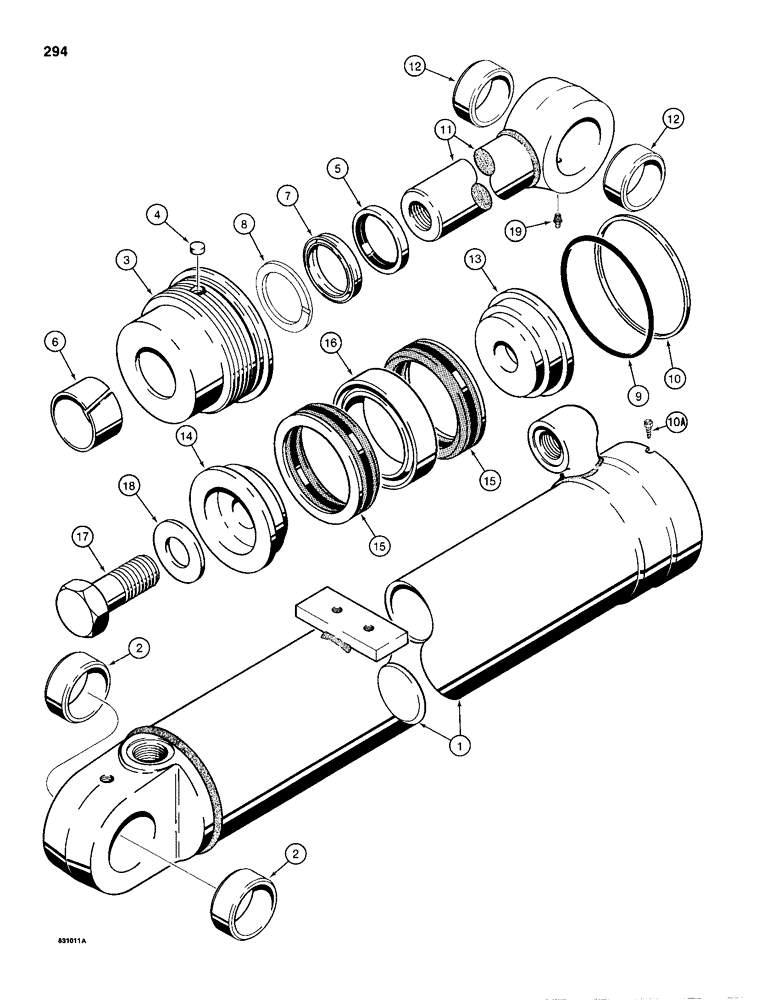

Запчасти Case 1150D (294) - G34836 AND G34837 LOADER LIFT CYLINDERS (08) - HYDRAULICS

G34836

CYLINDER

ASSEMBLY - lift, right-hand, 5" (127 mm) ID x 31-7/16" (799 mm) stroke, Includes: Ref. 1 - 19

1шт.

G34837

CYLINDER

ASSEMBLY - lift, left-hand, 5" (127 mm) ID x 31-7/16" (799 mm) stroke, Includes: Ref. 1 - 19

1шт.

1

G34838

TUBE,40.99" L

- G34836 cylinder, right-hand, Includes: Ref. 2

1шт.

1

G34839

TUBE

- G34837 cylinder, left-hand, not shown, Includes: Ref. 2

1шт.

2

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- tube

2шт.

G104336

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N G109501

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N G109501

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109501

1шт.

7

G100779

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

8

G109086

RING

SEAL - piston rod, narrow

1шт.

Part of seal kit P/N G109501

1шт.

9

39738

O-RING,4.609" ID x 0.139" Width

- gland

1шт.

Part of seal kit P/N G109501

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

BACKUP RING - Gland O-Ring

1шт.

Part of seal kit P/N G109501

1шт.

10a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

11

G34098

ROD

- piston, 2-1/4" (57 mm) diameter, Includes: Ref. 12

1шт.

12

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- piston rod

2шт.

13

D46426

PISTON

- split, rod end

1шт.

14

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split, bolt end

1шт.

15

D47206

PACKING

- piston

2шт.

Part of seal kit P/N G109501

1шт.

16

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center, packing

1шт.

17

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G109501

GASKET KIT

KIT - seal, Includes: Refs. 5, 6, 7, 8, 9, 10 and 15

1шт.
