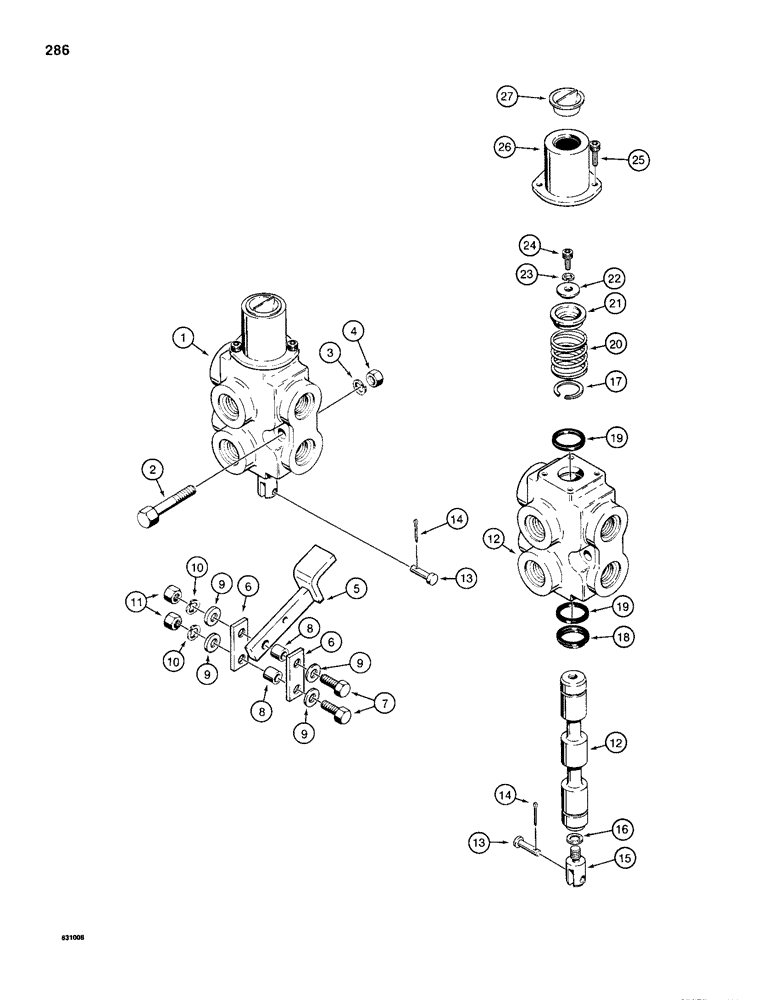

Запчасти Case 1150D (286) - SELECTOR VALVE AND CONTROLS, ANGLE TILT PITCH DOZER MODELS ONLY (08) - HYDRAULICS

1

R24819

VALVE

SELECTOR VALVE - parts list below

1шт.

2

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

5

R45993

CONTROL LEVER

CONTROL VALVE - valve

1шт.

6

R27514

LINK

- control lever to heel plate

2шт.

7

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

8

R30545

BUSHING

SPACER - control lever links

2шт.

9

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

R24819

VALVE

SELECTOR VALVE - tilt pitch hydraulic circuit, Includes: Ref. 12 - 27

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve, R24819 selector valve

1шт.

13

R24869

AXLE PIN

CLEVIS - spool eye, R24819 selector valve

1шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , R24819 selector valve 1/16" x 1/2"

1шт.

15

R24867

CLEVIS

- spool top, R24819 selector valve

1шт.

16

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , R24819 selector valve Int Tooth, 3/8"

1шт.

17

D23692

SNAP RING,#100, Ext, Crescent

RING, Snap, , spool, R24819 selector valve #100, Ext, Crescent

1шт.

18

R24871

SEAL

- dust, R24819 selector valve

1шт.

19

R24866

RING

SEAL - square section, spool, R24819 selector valve

2шт.

20

N8540

SPRING

- valve, R24819 selector valve

1шт.

21

R24872

SPRING SEAT

SEAT - spring R24819 selector valve

1шт.

22

R33483

WASHER

- special, R24819 selector valve

1шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , R24819 selector valve 1/4"

1шт.

24

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - hex socket head, 1/4" - 20 NC x 1/2", R24819 selector valve

1шт.

25

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT - hex socket head, 1/4" - 20 NC x 3/4", R24819 selector valve

2шт.

26

N6521

CAP

- end, R24819 selector valve

1шт.

27

N6522

PLUG

- dust, plastic, R24819 selector valve

1шт.
