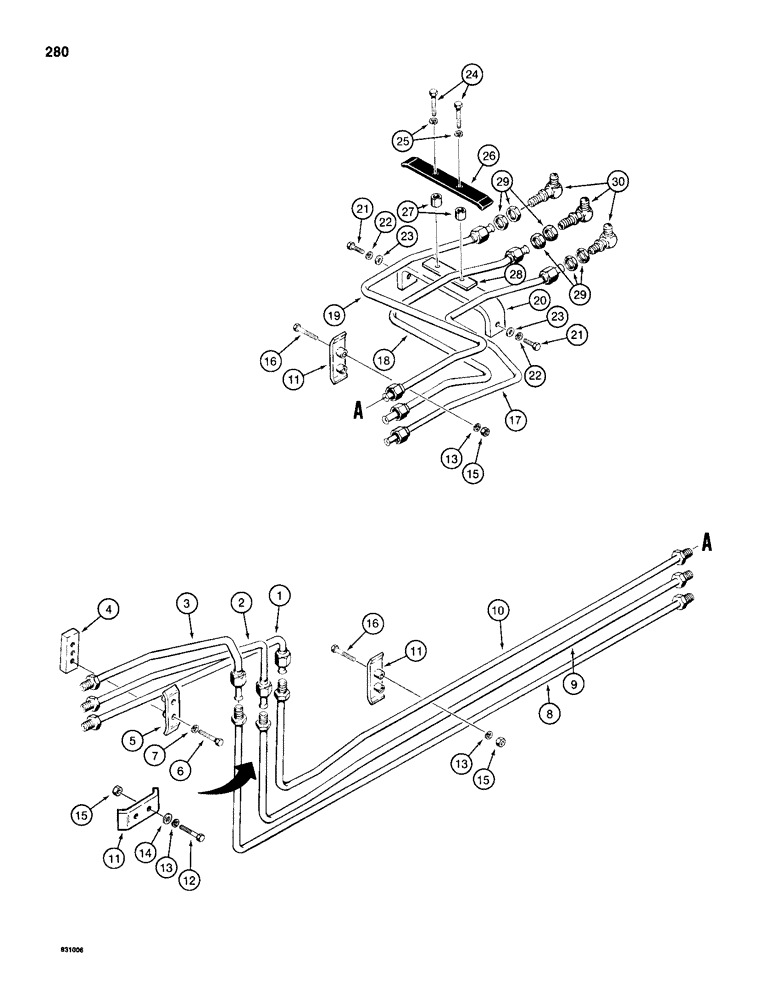

Запчасти Case 1150D (280) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT, ANGLE TILT PITCH DOZER MODELS TUBES TO GRILLE (08) - HYDRAULICS

1

R29932

TUBE,1/2" OD x 26.87, 3.5" L

- lower

1шт.

2

R29930

TUBE,0.5" OD

- center

1шт.

3

R30543

TUBE,0.5" OD

- upper

1шт.

4

R27517

BLOCK

- tube mounting

1шт.

5

R37957

CLAMP

- tube

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

R30541

TUBE,0.5" OD x 45.05, 7.45" L

- intermediate, lower

1шт.

9

R27428

PIPE,0.5" OD

TUBE - intermediate, center

1шт.

10

R27430

TUBE,0.5" OD

- intermediate, upper

1шт.

11

R37957

CLAMP

- tube

3шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

17

R37973

TUBE,0.5" OD

- lower, front

1шт.

18

R30759

TUBE,0.5" OD

- center, front

1шт.

19

R30761

TUBE,0.5" OD

- upper, front

1шт.

20

R35905

SUPPORT

- tube

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

R35910

CLAMP

- tubes

1шт.

27

C18330

SPACER

- tubes

2шт.

28

R35908

SPACER

SHIM - tubes

1шт.

29

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

6шт.

30

R33311

FITTING

ELBOW - 90 degree, special

3шт.
