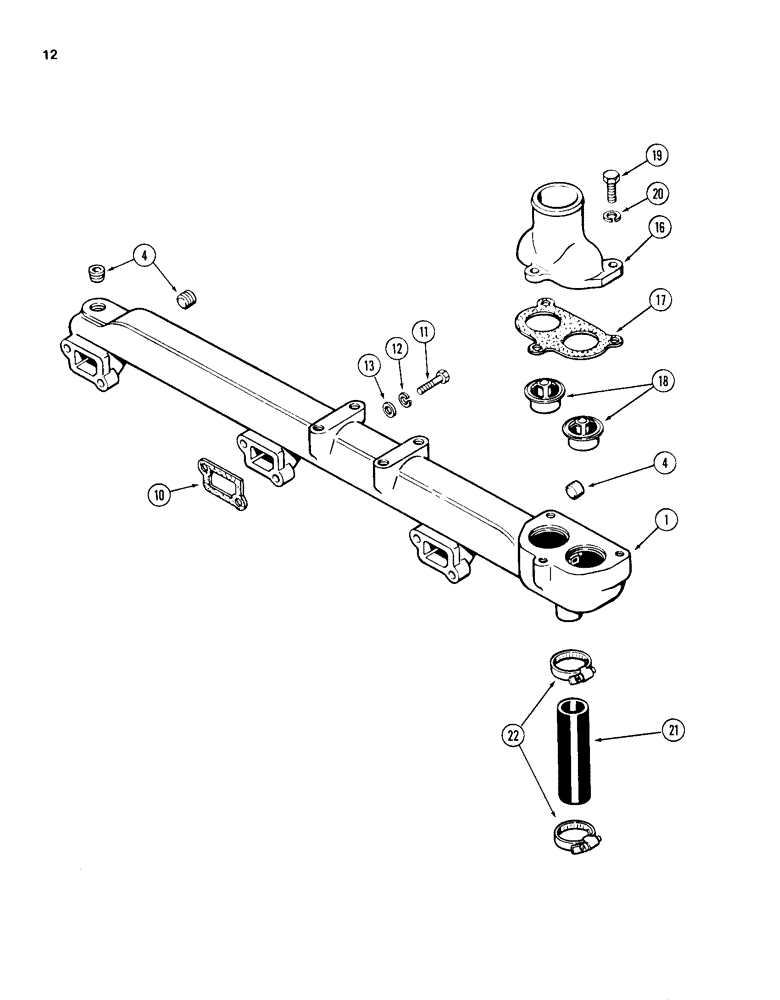

Запчасти Case 1150D (012) - WATER MANIFOLD AND THERMOSTAT, 504BD AND 504BDT DIESEL ENG (02) - ENGINE

1

A152742

MANIFOLD

- water

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

1шт.

10

A58637

MANIFOLD GASKET

-, Serial Range: manifold-head

3шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

12

92-6

LOCK WASHER,3/8"

plated 3/8"

6шт.

13

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

6шт.

16

A58638

HOUSING

- thermostat

1шт.

17

A58639

GASKET

-, Serial Range: housing-manifold

1шт.

18

A57641

THERMOSTAT

- water temperature, 180\(deF (82\(deC)

2шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

plated 3/8"

3шт.

21

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

-, Serial Range: manifold-pump

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 inch to 1-3/4 inch (30 to 46 mm)

2шт.
