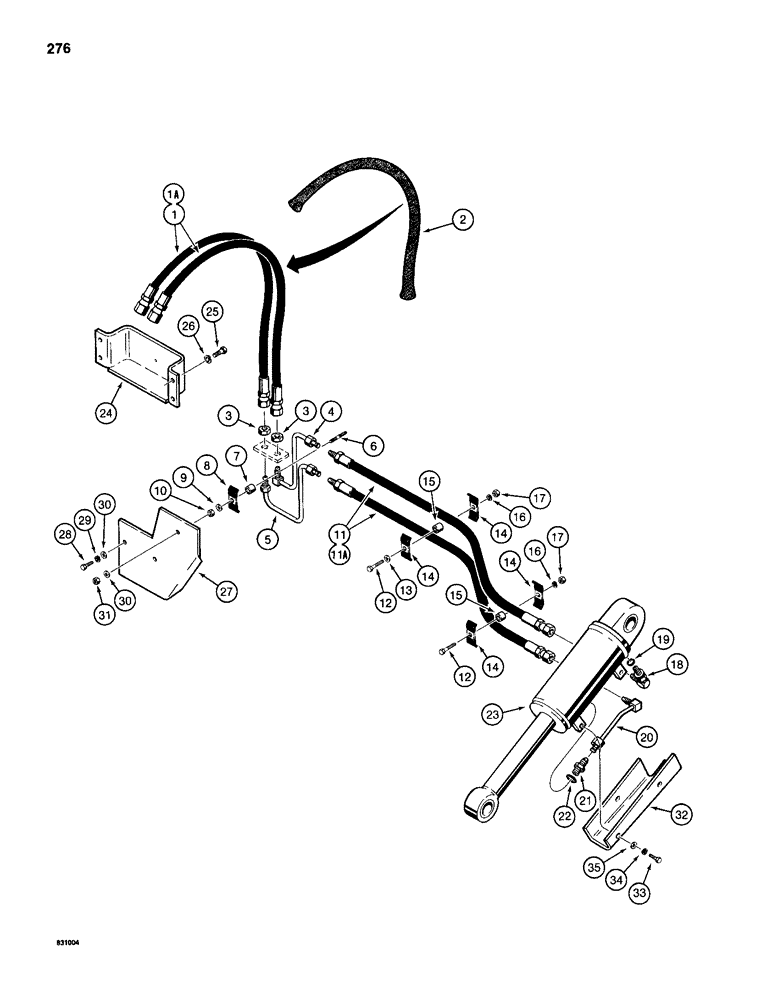

Запчасти Case 1150D (276) - TILT HYDRAULIC CIRCUIT - TILT DOZER MODELS, GRILLE TO CYLINDER (08) - HYDRAULICS

1

R31442

HOSE

- 46" (1168 mm) long, 105-1/2" (2680 mm) wide dozer blade only

2шт.

1a

R34010

HOSE

- 50" (1270 mm) long, 129-1/2" (3289 mm) wide dozer blade only

2шт.

2

R52542

HOSE PROTECTION

SLEEVE - nylon, hose protector

1шт.

3

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

4

R46398

PIPE,208, 175.35 mm L

TUBE - upper

1шт.

5

R46396

PIPE

TUBE - lower

1шт.

6

R49736

STUD

- clamp mounting

1шт.

7

C18330

SPACER

- tube

1шт.

8

D40236

CLAMP

- tube

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

11

R46151

HOSE ASSY.

HOSE - 42" (1067 mm) long, to cylinder, used with 105-1/2" (2680 mm) wide dozer blade only

2шт.

11a

R46152

HOSE

- 54" (1372 mm) long, to cylinder, used with 129-1/2" (3289 mm) wide dozer blade only

2шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

14

D40236

CLAMP

- hose

4шт.

15

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, closed end of cylinder, Includes: Ref. 19

1шт.

20

R46400

PIPE,12.7 mm OD x 202, 34.5 mm L

TUBE - to rod end of cylinder

1шт.

21

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, rod end of cylinder, Incl. Ref 22 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

23

G107405

CYLINDER

- tilt, parts list Fig. 304

1шт.

24

R41555

GUARD ASSY.

GUARD - hose, on grille

1шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

27

R46392

PROTECTION PLATE

GUARD - tubes, on blade

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

32

R46394

PROTECTOR

GUARD - tilt cylinder

1шт.

33

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 1", plated

3шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

195-533

WASHER,1/2", SAE

- flat, 3/8", plated

3шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
