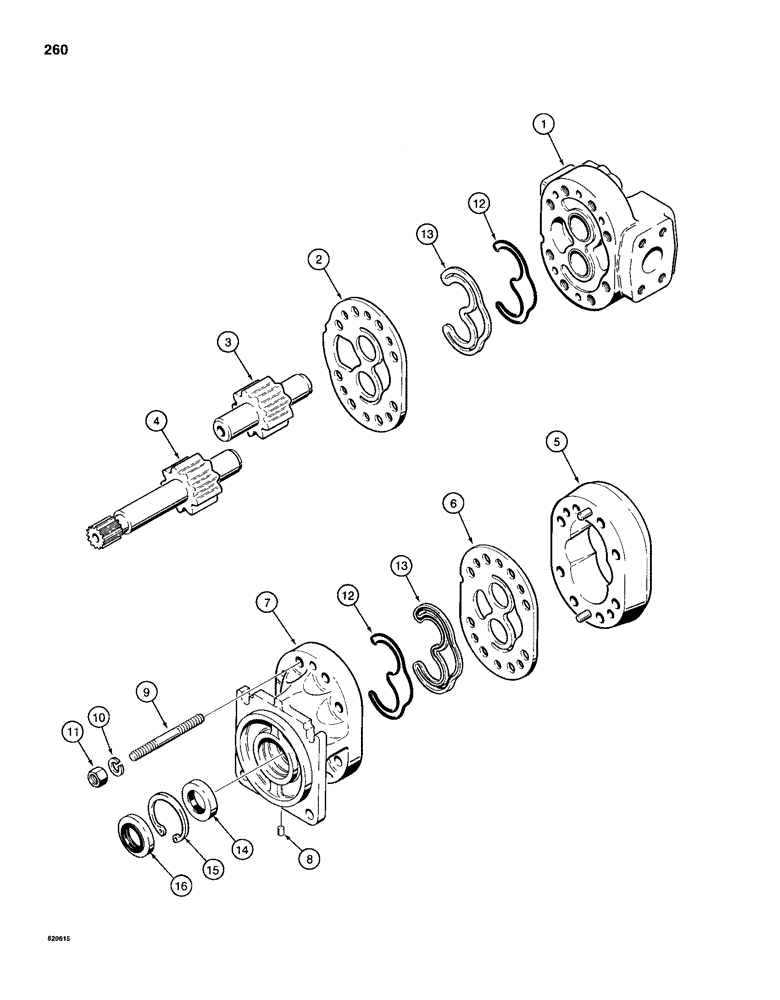

Запчасти Case 1150D (260) - EQUIPMENT HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

R45560

PUMP

ASSEMBLY - hydraulic equipment, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

2

N60191

PLATE

WEAR PLATE - port end

1шт.

3

N60189

GEAR

DRIVEN GEAR - pump

1шт.

4

N60190

GEAR

DRIVE GEAR - pump

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

6

N60187

PLATE

WEAR PLATE - shaft end

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - shaft end cover

1шт.

9

N60211

STUD

- 4-1/2" (114 mm) long

8шт.

10

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

11

129-106

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC, plated

8шт.

N7240

SEAL KIT

- pump seal, Includes: Ref. 12 - 16

1шт.

12

N60195

SEAL

- wear plate

2шт.

13

N60194

RETAINER

- seal

2шт.

14

N60213

SEAL

- drive gear shaft, inner

1шт.

15

D41419

RING

SNAP RING - seal retaining

1шт.

16

N60212

SEAL

SEAL - drive gear shaft, outer

1шт.
