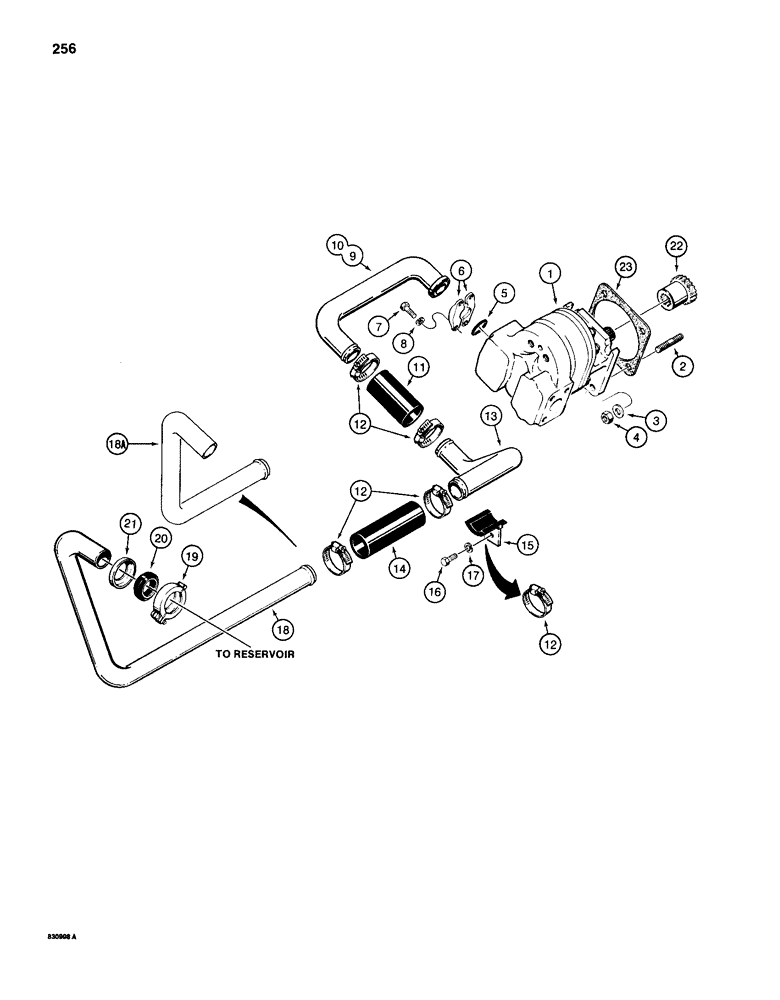

Запчасти Case 1150D (256) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

R45560

PUMP

ASSEMBLY - parts list Fig. 260

1шт.

2

R46073

STUD

- 1/2" - 13 NC x 2", short thread end into torque converter housing

4шт.

3

R24718

WASHER

- hardened, 1/2"

4шт.

4

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

5

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- tube, 1-1/2"

1шт.

6

A14157

FLANGE

CLAMP - split flange

2шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

R46557

PIPE,1.998" ID x 2 - 2.38" OD

TUBE - at pump, dozer and drawbar models, if used

1шт.

10

R43809

TUBE ASSY.

TUBE - at pump, loader models, if used

1шт.

11

R43919

HOSE

- 2" (51 mm) ID x 5-1/2" (140 mm) long, cut from R45493 hose (Ref. 14)

1шт.

12

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable 1.25/2.625 HD Worm

5шт.

13

R43814

TUBE,2" OD

- to pump

1шт.

14

R45493

HOSE,50.80 mm ID x 203.20 mm

1шт.

15

R38740

BRACKET

- tube

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

R38734

TUBE,2" OD

- from reservoir to pump, used on models with a horizontally-mounted transmission filter, if used

1шт.

18a

R49433

PIPE,2" OD

TUBE - from reservoir to pump, used on models with a vertically-mounted transmission filter, if used

1шт.

19

R30064

CLAMP

- tube, at hydraulic reservoir

1шт.

20

R30065

GASKET

- tube

1шт.

21

R30066

RETAINER

- gasket

1шт.

22

R46562

PINION

GEAR - equipment pump drive

1шт.

23

D32004

GASKET

- pump

1шт.
