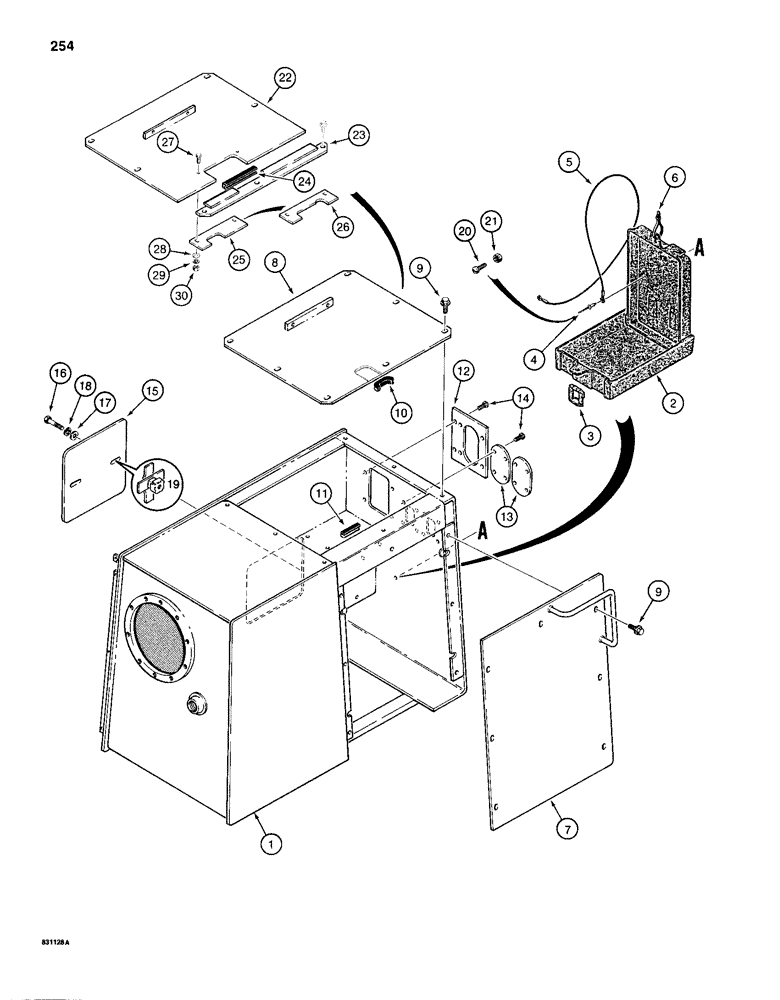

Запчасти Case 1150D (254) - HYDRAULIC RESERVOIR COVERS AND, OPERATORS MANUAL BOX (08) - HYDRAULICS

1

REF

INSTRUCTION

HYDRAULIC RESERVOIR - includes decals and operators manual box, Fig. 250 or 252 for correct reservoir and related parts, Includes: Ref. 2 - 6

1шт.

2

R46464

CASE

BOX - operators manual, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

LATCH - manual box

1шт.

5

D126821

CABLE

CORD - manual retaining

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - manuel box, 15 inch, nylon

1шт.

7

R29648

HOOD

COVER - side, outer

1шт.

8

R43215

LARGE PLATE

COVER - top, one-piece, includes decals, used on models without a cab or winch, if used

1шт.

8

R43217

LARGE PLATE

COVER - top, one-piece, includes decals, used on winch models without a cab, not shown, see Hyster Winch Parts Catalog D1251 for related parts, if used

1шт.

9

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

14шт.

10

REF

INSTRUCTION

TRIM - used on one-piece top cover (Ref. 8) at the cutout for heater hoses, cab models only, 3" (76 mm) long, cut from F42827

1шт.

P/N F42827, Trim, edge, 116" (2946mm) long

1шт.

11

REF

INSTRUCTION

TRIM - used on reservoir frame with one-piece top cover (Ref. 8), cab, models only, 2" (51 mm) long, cut from F42827

1шт.

P/N F42827, Trim, edge, 116" (2946mm) long

1шт.

12

R47892

PLATE

- adapter, control lever boot, used on cab models

1шт.

13

R47916

LARGE PLATE

PLATE - cover, used on cab models with no secondary control levers

1-2шт.

14

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head, slotted, self-tapping, No. 10 x 1/2", plated

6-14шт.

15

R30357

COVER

- hydraulic reservoir frame, inner, control valve access, if used

1шт.

16

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

R30355

STEEL SHEET NUT

RETAINER - cover

2шт.

20

182-562

SCREW,Slotted Pan Hd, #10-24 x 7/8"

MACHINE - pan head slotted, No. 10 - 24 NC x 7/8", plated, used on models with a noise reduction pad, see Ref. 4

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, , Used on models with a noise reduction pad, see Ref. 4 #10-24, GB

3шт.

22

N9111

PLATE

COVER - 2 piece top covers, cab models only

1шт.

23

N9112

BAR

PLATE - filler, 2 piece top covers, cab models only

1шт.

24

REF

INSTRUCTION

TRIM - filler plate, 4-1/4" (108 mm) long, cut from F42827, 2 piece top covers, cab models only

1шт.

P/N F42827, Trim, edge, 116" (2946mm) long

1шт.

25

R49865

LARGE PLATE

PLATE - guide, with heating system only, if used, 2 piece top covers, cab models only

1шт.

26

R49866

GUIDE

PLATE - with heating and air conditioning, if used, 2 piece top covers, cab models only

1шт.

27

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2 piece top covers, cab models only Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

28

95-6

WASHER,3/8"

- flat, , 2 piece top covers, cab models only 3/8"

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 2 piece top covers, cab models only 3/8"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 2 piece top covers, cab models only 3/8"-16, G5

2шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long, 2 piece top covers, cab models only

1шт.
