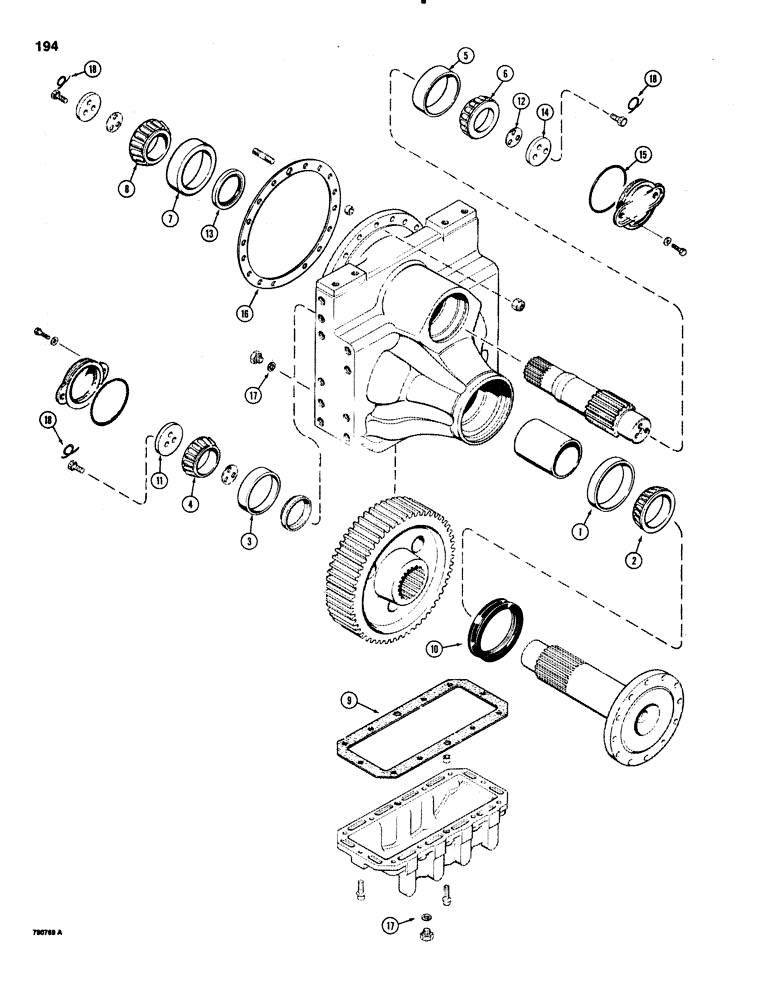

Запчасти Case 1150C (194) - TRANSMISSION SERVICE KIT, FINAL DRIVE OVERHAUL AND SEAL KITS (06) - POWER TRAIN

G101834

DRIVE

KIT - overhaul, final drive, Includes: Ref. 1 - 18

2шт.

G101834 kit contains two spacers not used on 1150C crawler tractors.

1шт.

1

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - tapered roller bearing, outer, lower shaft

1шт.

2

L33736

ROLLER BEARING

TAPERED ROLLER BEARING - outer, lower shaft

1шт.

3

A50324

BEARING CUP

CUP - tapered roller bearing, inner, lower shaft

1шт.

4

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

TAPERED ROLLER BEARING - inner, lower shaft

1шт.

5

L30821

BEARING CUP

- tapered roller bearing, outer, upper shaft

1шт.

6

1997116C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

TAPERED ROLLER BEARING - outer, upper shaft

1шт.

7

A50713

BEARING ASSY

CUP - tapered roller bearing, inner, upper shaft

1шт.

8

A50714

BEARING ASSY

TAPERED ROLLER BEARING - inner, upper shaft

1шт.

G101833

KIT

- seal, final drive, Includes: Ref. 9 - 18

1шт.

9

A50540

GASKET

- bottom cover, drive assembly

1шт.

10

A50547

SEAL

FACE SEAL - final drive shaft

1шт.

11

G102001

PLATE

- shaft end

1шт.

12

G101997

SHIM,.005" Thk

(0.127 mm), Shaft end plate .005" Thk

6шт.

12

G101998

SHIM,.007" Thk

(0.178 mm), Shaft end plate .007" Thk

6шт.

12

G101999

SHIM,.020" Thk

(0.508 mm), Shaft end plate .020" Thk

3шт.

13

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

OIL SEAL - pinion shaft

1шт.

14

G102106

PLATE

- pinion shaft end

2шт.

15

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- pinion shaft cover

2шт.

16

A50725

SHIM,.007" Thk

(0.178 mm), Housing to transmissionk .007" Thk

3шт.

16

A50726

SHIM,.005" Thk

(0.127 mm), Housing to transmission .005" Thk

3шт.

17

G102141

SEALING WASHER

WASHER - copper, gasket for plug

2шт.

18

391-804

ELECTRICAL WIRE

WIRE - tie, if used

3шт.
