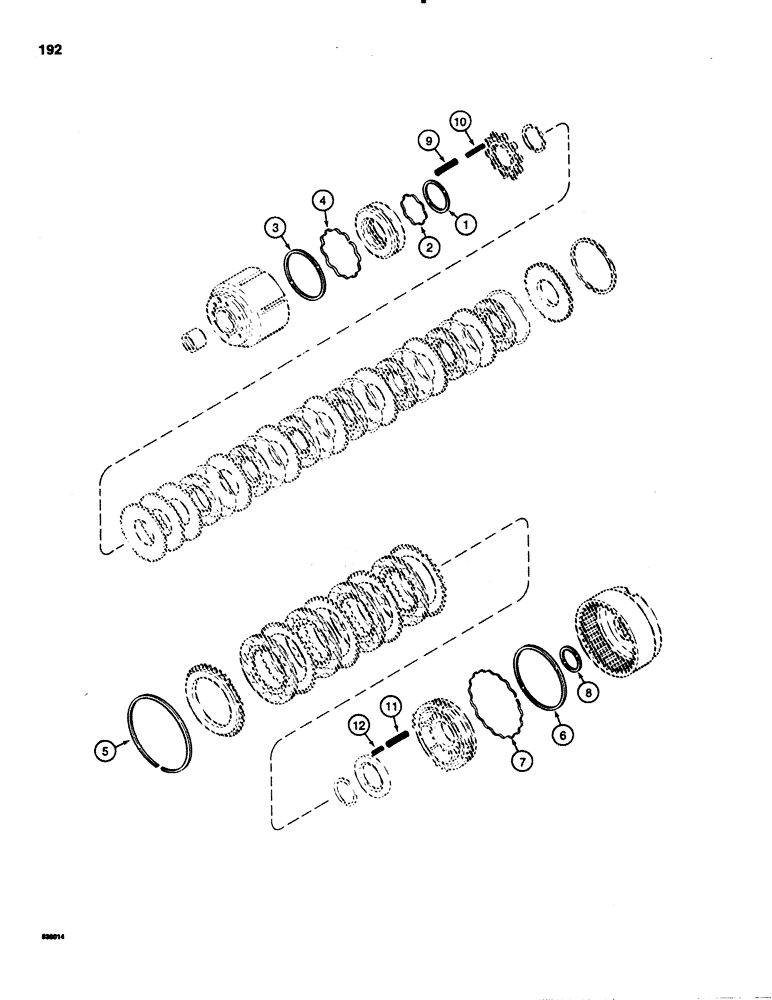

Запчасти Case 1150C (192) - TRANSMISSION SERVICE KIT, CLUTCH REPAIR (06) - POWER TRAIN

G101831

GASKET KIT

KIT - clutch repair, Includes: Ref. 1 - 12

1шт.

1

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- piston, inner

2шт.

2

G102093

SPRING

- wave, inner

2шт.

3

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - piston, outer

2шт.

4

G102094

SPRING

- wave, outer

2шт.

5

30785

RING

SNAP RING - clutch, large, .125" (3.17 mm) thick

4шт.

5

A51827

RING

SNAP RING - clutch, large, .110" (2.79 mm) thick

4шт.

5

A51828

RING

SNAP RING - clutch, large, .092" (2.34 mm) thick

4шт.

6

A50414

SEALING RING

RING - piston, large, forward and reverse clutches

8шт.

7

G102095

SPRING

- wave, large piston ring

8шт.

8

A50415

SEAL

RING - piston, small, forward and reverse clutches

8шт.

9

A50627

SPRING

- piston return, outer, low range clutch

20шт.

10

A50628

SPRING

- piston return, inner, low range clutch

20шт.

11

A51825

SPRING

- piston return, outer, left-hand and right-hand clutches

144шт.

12

A51826

SPRING

- piston return, inner, left-hand and right-hand clutches

144шт.
