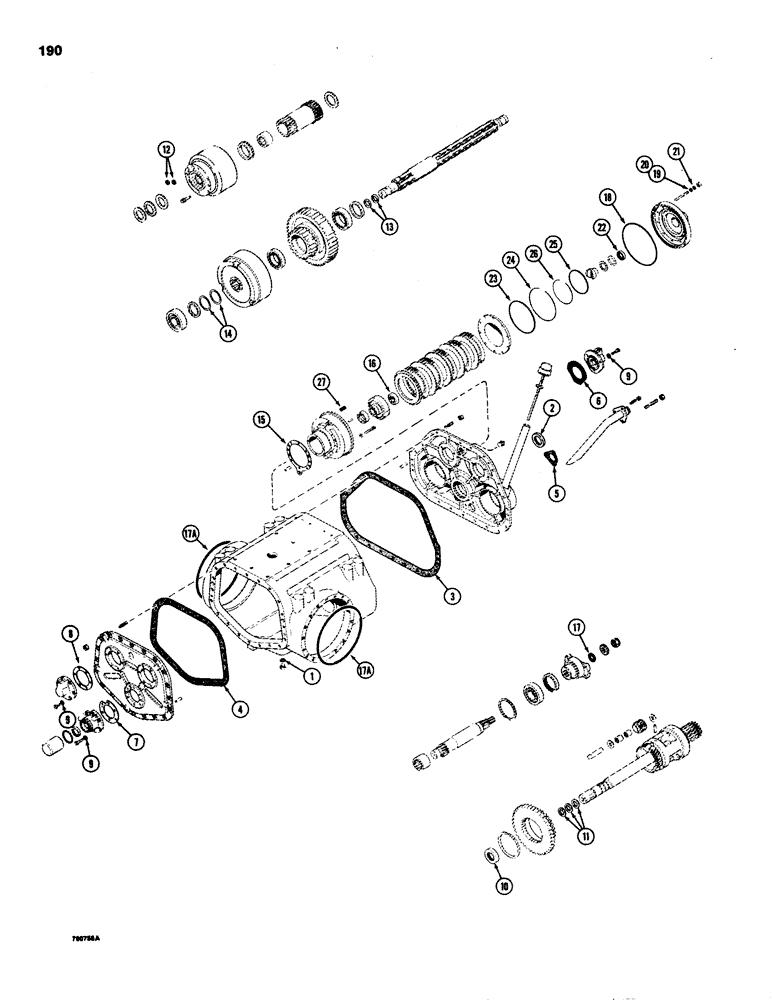

Запчасти Case 1150C (190) - TRANSMISSION SEAL KITS, HOUSING, COVERS, AND BRAKES (06) - POWER TRAIN

G101829

GASKET KIT

KIT - seal, transmission, Includes: Ref. 1 - 27

1шт.

1

G102141

SEALING WASHER

- drain plug, transmission housing

1шт.

2

A50420

SEAL

- oil, input shaft

1шт.

3

G35210

GASKET

- front cover, transmission housing

1шт.

4

G35211

GASKET

- rear cover, transmission housing

1шт.

5

A51732

GASKET

- oil suction tube

1шт.

6

R11428

GASKET

- front cap, upper shaft

2шт.

7

G102757

SHIM,.005" Thk

(0.127 mm), Rear cap, Input shaft .005" Thk

6шт.

7

G102758

SHIM,.007" Thk

(0.1778 mm), Rear cap, Input shaft .007" Thk

6шт.

8

1342255C1

SHIM

- rear cap, clutch shafts, .007" (0.1778 mm) thick

5шт.

8

1342256C1

SHIM

- rear cap, clutch shafts, .002" (0.0508 mm) thick

5шт.

9

D32117

COPPER WASHER

WASHER, COPPER

24шт.

10

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - PTO shaft

1шт.

11

A51841

RING

- seal, PTO shaft

3шт.

12

A50651

SEALING RING

SEAL - rubber, housing, low range clutch

2шт.

13

A50389

SEAL

RING - seal, clutch shafts

8шт.

14

A50668

SHIM,.032" Thk

(0.787 mm), Clutch, Rear spacer .032" Thk

8шт.

15

A50687

SHIM,.007" Thk

(0.178mm), Brake housing .007" Thk

6шт.

15

A50688

SHIM,.005" Thk

(0.127 mm), Brake housing .005" Thk

6шт.

16

131-468

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF

2шт.

17

A50608

WASHER

- input shaft

1шт.

17a

S5871

O-RING,11.984" ID x 12.262" OD x 0.139"

- housing to final drive

2шт.

G101830

GASKET KIT

KIT - brake seal, Includes: Ref. 18 - 27

1шт.

18

A50698

SEAL,Square, 3.4mm Thk x 240.89mm ID

GASKET - brake cover

2шт.

19

D32117

COPPER WASHER

WASHER, COPPER, Brake cover, Use as required

20шт.

20

A50694

DISC

WASHER - with rubber insert, brake cover, use as required

20шт.

21

195-25

WASHER,3/8"

- flat, , brake cover, use as required 3/8"

20шт.

22

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- brake cover

2шт.

23

A50707

SEAL,182.78mm ID x 191.64mm OD x 3.23mm Thk

- Teflon, large, inner

2шт.

24

A50708

ELECTRICAL WIRE

WIRE - inner seal

2шт.

25

A50709

SEAL,122.45mm ID x 131.32mm OD x 3.23mm Thk

- Teflon, small, outer

2шт.

26

A50710

ELECTRICAL WIRE

WIRE - outer seal

2шт.

27

A50692

COIL SPRING

SPRING - brake piston return

20шт.
