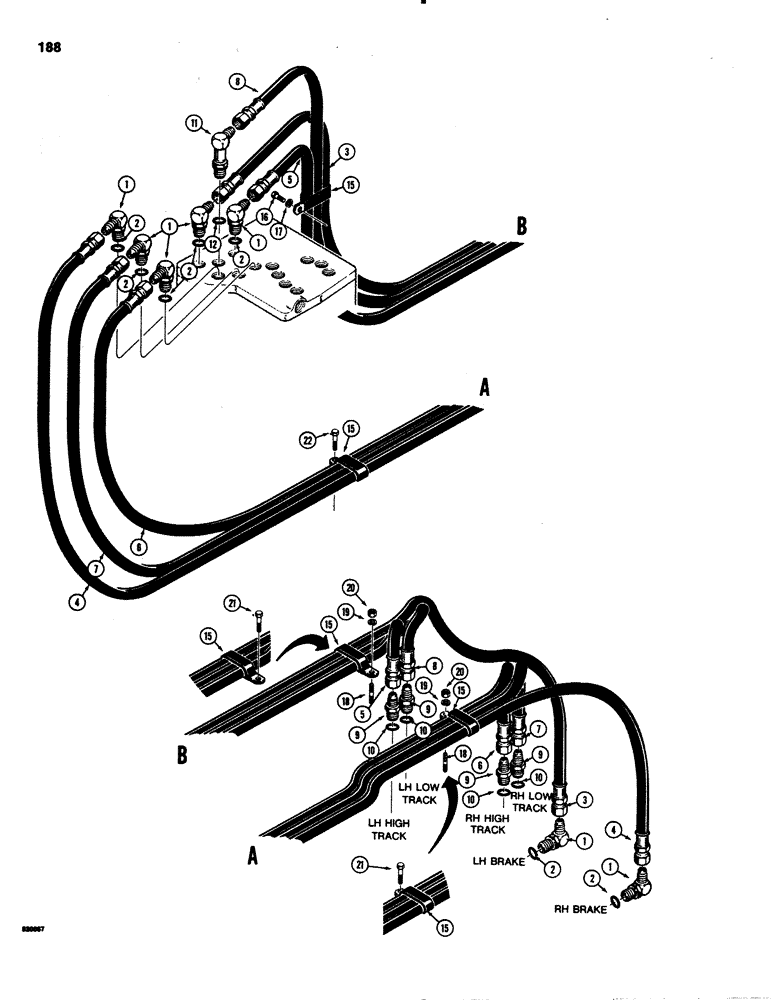

Запчасти Case 1150C (188) - TRANSMISSION HYDRAULIC CIRCUITS, VALVE TO FRONT OF TRANSMISSION (06) - POWER TRAIN

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, male, Includes: Ref. 2

7шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

3

A51458

HYDRAULIC HOSE

HOSE - brake, left-hand, 40" (1016 mm) long

1шт.

4

A51457

HOSE

- brake, right-hand, 52" (1321 mm) long

1шт.

5

G100425

HYDRAULIC HOSE,6.35 mm ID x 635.00 mm, SAE 100R1

6.35 mm ID x 635.00 mm, SAE 100R1

1шт.

6

G35433

HOSE

- 38" (965 mm) long

1шт.

7

G35433

HOSE

- 38" (965 mm) long

1шт.

8

G100424

HYDRAULIC HOSE,6.35 mm ID x 660.40 mm, SAE 100R1

6.35 mm ID x 660.40 mm, SAE 100R1

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 10

4шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

R20739

FITTING

ELBOW - 90 degree, special, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

15

G100534

CLAMP

- hose

4шт.

16

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

G102128

BOLT

- 3/8" - 16 NC x 7/8", no longer used, order 13-616 bolts

2шт.

19

92-6

LOCK WASHER,3/8"

used with G102128 stud only 3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used with G102128 stud only

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.
