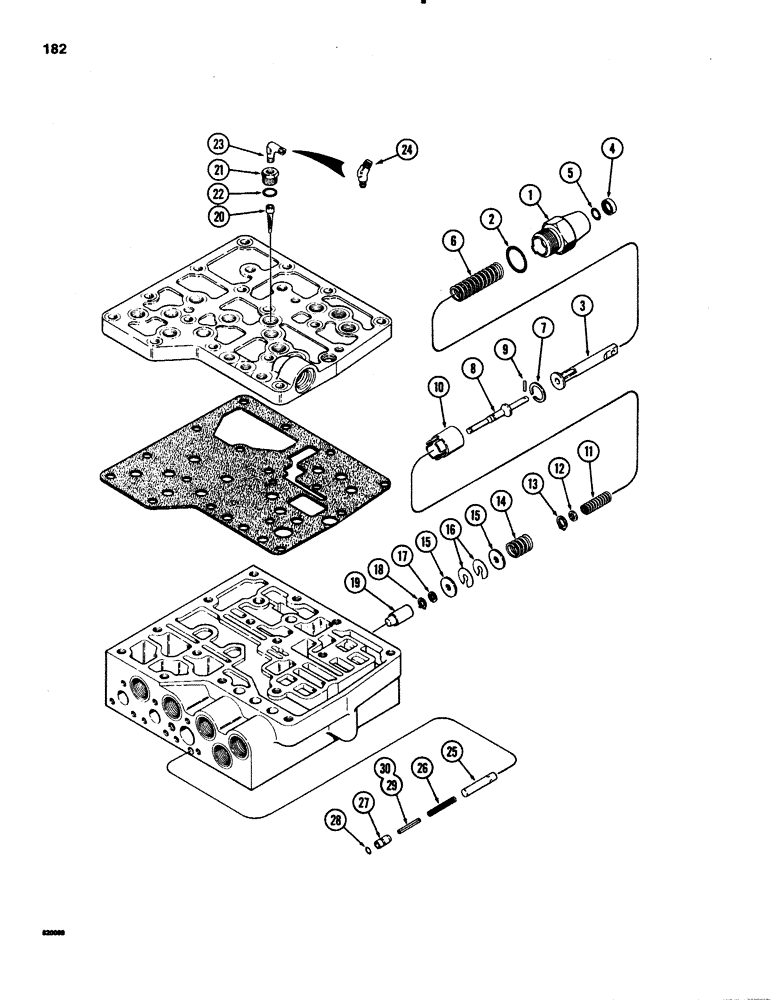

Запчасти Case 1150C (182) - TRANSMISSION CONTROL VALVE, A140795 MODULATOR VALVE ADJUSTING PLUG (ITEM 1) SINGLE FORMED PIECE (06) - POWER TRAIN

A140795

VALVE

ASSEMBLY - modulator, see ref. 1 for identification, assembly no longer available, order G103916 valve assembly, see Figure 184, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG - adjusting

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adjusting plug, large

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - actuator

1шт.

4

A50768

WIPER SEAL

OIL SEAL - actuator rod

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

5

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- adjusting plug, small

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

6

A50770

SPRING

- actuator rod

1шт.

7

49481

SNAP RING,0.866", Int, #87

Ring, Snap, , actuator rod, large 0.866", Int, #87

1шт.

8

A50825

VALVE

PLUNGER - valve

1шт.

9

138-37

LOCK PIN,3/32" x 1/2", Slotted

PIN, 3/32" x 1/2", Slotted

1шт.

10

A50777

PISTON

- modulator

1шт.

11

A50826

SPRING

- modulator

1шт.

12

A50773

WASHER

- spring seat

1шт.

13

G10659

SNAP RING,#31, Ext

Ring, Snap, , plunger, large, center #31, Ext

1шт.

14

G104417

SPRING

- piston

1шт.

15

A142605

WASHER

- spring seat

2шт.

16

A142027

SHIM

- 0.005" (0.127 mm) thick

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

16

A142028

SHIM

- 0.007" (0.178 mm) thick

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

17

A50778

WASHER

- piston retaining

1шт.

18

A7111

SNAP RING,#25, Ext

Ring, Snap, , plunger, small, inner #25, Ext

1шт.

19

A50771

PISTON

POPPET - modulator

1шт.

20

A50763

VALVE

FILTER - modulator

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

21

A50762

PLUG

- filter port

1шт.

23

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male, 1/8" NPT, no longer used, order 218-531 elbow

1шт.

24

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, male, 18" NPT

1шт.

25

A51285

SPOOL

- range orifice

1шт.

26

A51837

SPRING

- range orifice spool

1шт.

Part of control valve overhaul kit P/N G101836 plus G101835 kit for complete kit page 197

1шт.

A51283

PLUG

ASSEMBLY - sealing, uses 1-1/2" (38 mm) long roll pin, if used

1шт.

G105100

PLUG

- sealing, uses 1-1/8" (28 mm) long roll pin, if used, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - plug

1шт.

28

A51274

O-RING,0.145" ID x 0.285" OD

- plug, A51283 and G105100 plugs

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

29

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Part of A51283 plug assembly, if used 1/8" x 1 1/2", Slotted

1шт.

30

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Order separately to use with G105100 plug, if used 1/8" x 1 1/8", Slotted

1шт.

G101835

GASKET KIT

KIT - control valve seal, Includes: ref. nos. 2, 4, 5, all 16's, 20, 22, and 28, for complete kit see Figure 196

1шт.

Part of control valve overhaul kit P/N G101836 plus G101835 kit for complete kit page 197

1шт.

G101836

VALVE

KIT - control valve overhaul, Includes: ref. no. 26 plus G101835 kit, for complete kit see Figure 196

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.
