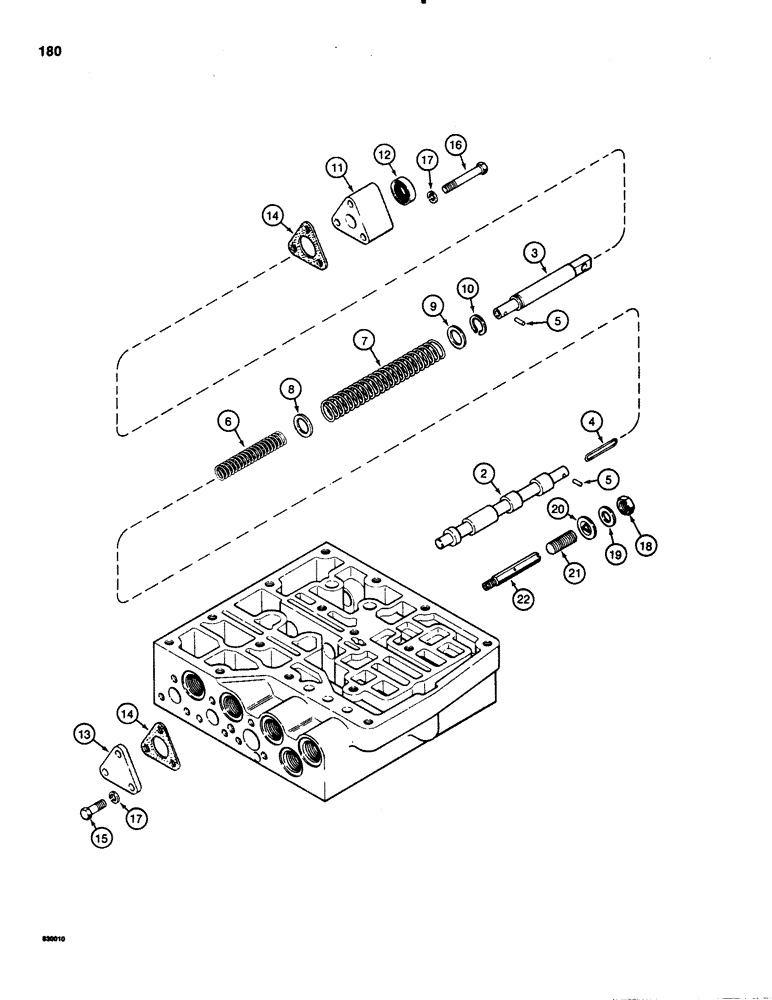

Запчасти Case 1150C (180) - TRANSMISSION CONTROL VALVE, BRAKE SPOOL (06) - POWER TRAIN

1

A51833

SPOOL

ASSEMBLY - brake, not shown, Includes: Ref. 2 - 10

2шт.

2

A51834

SPOOL

brake

1шт.

3

A51835

ROD

brake actuator

1шт.

4

A51836

BRACKET

LINK - brake spool return

1шт.

Part of Overhaul Kit, P/N G101836

1шт.

5

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, 3/32" x 3/8", Slotted

2шт.

Part of Overhaul Kit, P/N G101836

1шт.

6

A51839

SPRING

brake actuator

1шт.

Part of Overhaul Kit, P/N G101836

1шт.

7

A50743

SPRING

brake spool return

1шт.

Part of Overhaul Kit, P/N G101836

1шт.

8

A50741

WASHER

spring retaining, inner

1шт.

9

A50740

WASHER

spring retaining, outer

1шт.

10

L42909

SNAP RING,#62, .586", Ext

SNAP - rod

1шт.

11

A50751

HOUSING

actuator rod

2шт.

12

G105700

OIL SEAL

OIL - actuator rod

2шт.

Part of Seal Kit, P/N G101835

1шт.

13

A50752

PLATE

brake spool cover

2шт.

14

A50753

GASKET

cover plate and rod housing

4шт.

Part of Seal Kit, P/N G101835

1шт.

15

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

17

92-5

LOCK WASHER,5/16"

12шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM - hex, 1/2" - 20 NF, retard valve

1шт.

19

195-33

WASHER,1/2"

flat, , retard valve 1/2"

1шт.

20

A50733

SEAL

retard valve

1шт.

Part of Seal Kit, P/N G101835

1шт.

21

176-396

SET SCREW,1/2"-13 x 1 1/4", Slotted

SET - slotted, 1/2" - 20 NF x 1-1/4", retard valve

1шт.

22

A142437

FITTING

MODULATOR - orifice, retard valve

1шт.

G101835

GASKET KIT

seal, Includes: ref. nos. 12, 14, and 20, for complete kit see Figure 196, retard valve

1шт.

Part of Overhaul Kit, P/N G101836

1шт.

G101836

VALVE

KIT - overhaul, Includes: ref. nos. 4, 5, 6, and 7 plus G101835 kit, for complete kit see Figure 196, retard

1шт.
