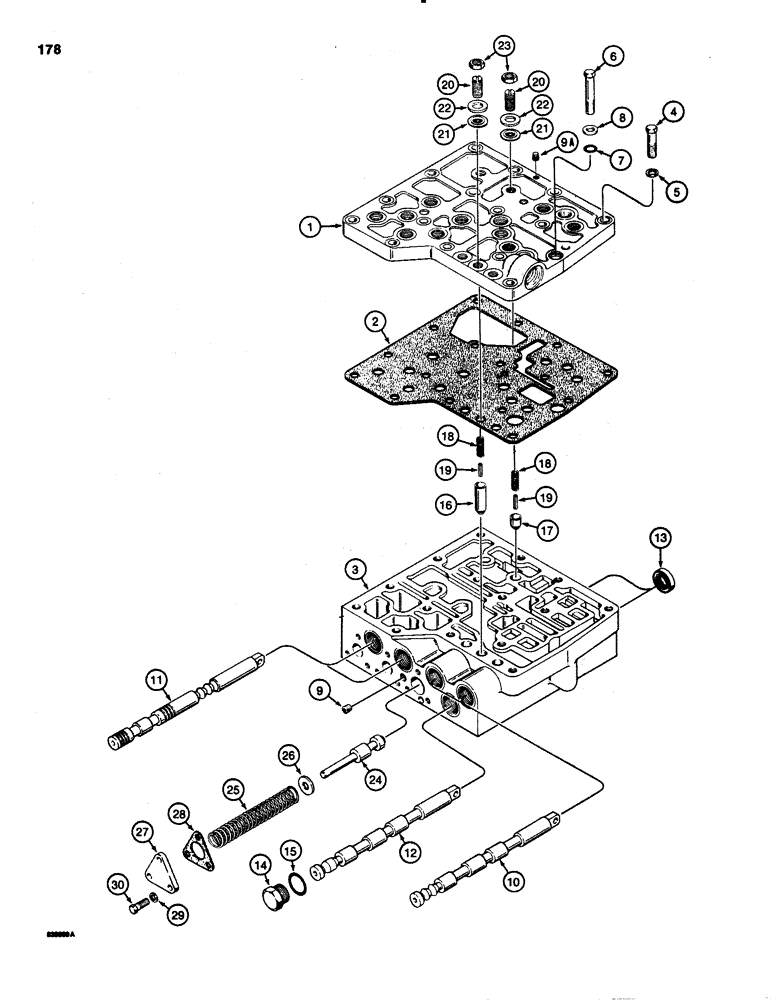

Запчасти Case 1150C (178) - TRANSMISSION CONTROL VALVE, COVER AND BASE, HIGH-LOW & FOR.-REV. SPOOL, PRESSURE REGUALATOR SPOOL (06) - POWER TRAIN

1

A50729

COVER

- valve

1шт.

2

G107278

GASKET

-, Serial Range: cover-body

1шт.

Part of Seal Kit, P/N G101835

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

15шт.

5

92-6

LOCK WASHER,3/8"

15шт.

6

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

1шт.

7

30825

COUPLING

O-RING - bolt seal

1шт.

Part of Seal Kit, P/N G101835

1шт.

8

A50820

WASHER

- hardened

1шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- socket head, 1/8" NPT

1шт.

9a

221-661

PLUG,Hex Hd, 1/8"-27

- valve cover, hex head, 1/8" NPT

1шт.

10

A140775

SPOOL

- forward and reverse

2шт.

11

A50737

SPOOL

- high-low, track

2шт.

12

A140955

SPOOL

- high-low, range

1шт.

13

G105118

OIL SEAL

- spool, double lip

5шт.

Part of Seal Kit, P/N G101835

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 15 Hex Hd, 7/8"-14 ORB

5шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

Part of Seal Kit, P/N G101835

1шт.

16

A50821

VALVE

PIN - detent, long

1шт.

17

A50822

PIN

- detent, short

4шт.

18

G100767

SPRING

- detent

5шт.

Part of Overhaul Kit, P/N G101836

1шт.

19

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

5шт.

20

176-396

SET SCREW,1/2"-13 x 1 1/4", Slotted

- slotted, 1/2" - 20 NF x 1-1/4"

5шт.

21

A50733

SEAL

- adjusting screw

5шт.

Part of Seal Kit, P/N G101835

1шт.

22

195-33

WASHER,1/2"

- flat, 1/2"

5шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - hex, 1/2" - 13 NC

5шт.

24

A51136

SPOOL

- pressure regulator

1шт.

25

A50755

SPRING

- pressure regulator

1шт.

Part of Overhaul Kit, P/N G101836

1шт.

26

A51138

RETAINER

- spring

1шт.

27

A50752

PLATE

- cover

1шт.

28

A50753

GASKET

- cover plate

1шт.

Part of Seal Kit, P/N G101835

1шт.

29

92-5

LOCK WASHER,5/16"

3шт.

30

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

G101835

GASKET KIT

KIT - seal, Includes: ref. nos. 2, 7, 13, 15, 21, and 28, for complete kit see Figure 196

1шт.

G101836

VALVE

KIT - overhaul, Includes: ref. nos. 18 and 25 plus G101835 kit, for complete kit see Figure 196

1шт.
