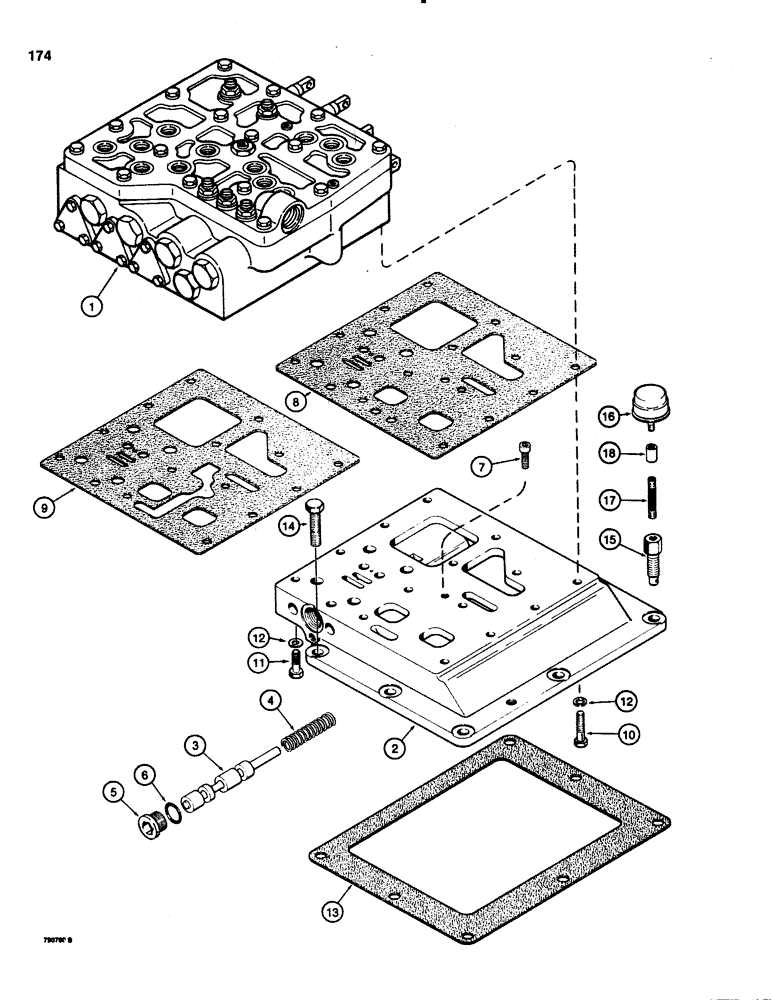

Запчасти Case 1150C (174) - TRANSMISSION CONTROL VALVE AND BASE (06) - POWER TRAIN

G105225

VALVE

CONTROL VALVE AND BASE ASSEMBLY - transmission, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL VALVE ASSEMBLY - parts list Figures 178 - 184

1шт.

A136287

BASE

ASSEMBLY - control valve, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BASE - valve

1шт.

3

A50782

SPOOL

- equalizer

1шт.

4

A50783

SPRING

- equalizer spool

1шт.

Part of control valve overhaul kit P/N G101836 plus G101835 kit for complete kit page 197

1шт.

5

86625138

PLUG,7/18" - 14

Spool port, Includes Ref. 6 Hex Soc, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

7

A51838

LOCK BOLT,1/4" - 20 x 0.75", Gr 8

SCREW - hex socket head, self-locking, 1/4" - 20 NC x 3/4"

1шт.

Part of control valve overhaul kit P/N G101836 plus G101835 kit for complete kit page 197

1шт.

8

G103502

GASKET

- control valve to base, no longer used, order G105098 gasket

1шт.

9

G105098

GASKET

- control, Serial Range: valve-base

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

10шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

12

92-6

LOCK WASHER,3/8"

14шт.

13

A50717

GASKET

- control valve base to transmission housing

1шт.

Part of control valve seal kit P/N G101835 and page 197

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Valve base to transmission housing Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6-7шт.

15

A51601

BOLT

- breather, if used, see note below

1шт.

16

A27173

BREATHER

- transmission housing

1шт.

17

221-137

PIPE,Nipple, 1/4" NPT x 2"

NIPPLE - 1/4" NPT x 2", if used, see note below

1шт.

18

221-336

COUPLING,Pipe, 1/4" NPT

- breather to nipple Pipe, 1/4" NPT

1шт.

G101835

GASKET KIT

KIT - control valve seal, includes ref. nos. 6, 9, 13, for complete kit see Figure 196

1шт.

G101836

VALVE

KIT - control valve overhaul, includes ref. nos. 4, 7 plus G101835 kit, for complete kit see Figure 196

1шт.
