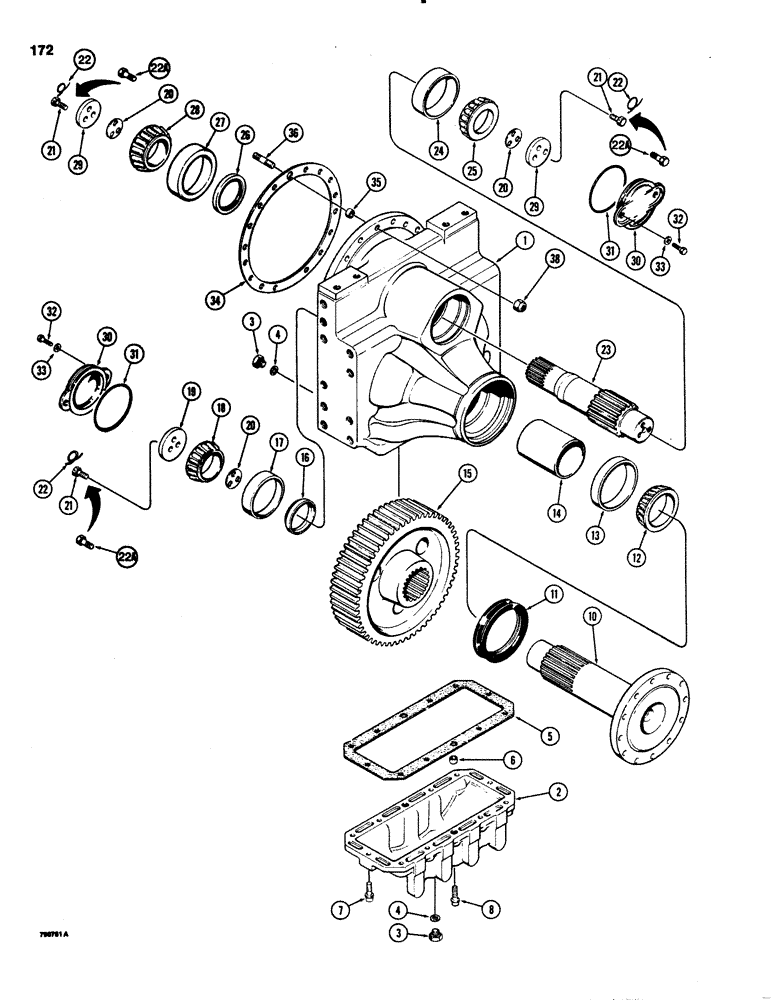

Запчасти Case 1150C (172) - TRANSMISSION FINAL DRIVE (06) - POWER TRAIN

G101538

DRIVE

FINAL DRIVE ASSEMBLY - transmission, Includes: Ref. 1 - 33

2шт.

Replaced by: G101310 housing, G1025211covers, G49404 washers, 238-5252 O-rings, 413-816 bolts

1шт.

1

G101310

HOUSING

- final drive assembly

1шт.

2

A51632

COVER

- bottom

1шт.

3

A140222

PLUG

- fill and drain

2шт.

4

G102141

SEALING WASHER

WASHER - copper

2шт.

Part of Seal Kit, P/N G101833

1шт.

5

A50540

GASKET

- bottom cover

1шт.

Part of Seal Kit, P/N G101833

1шт.

6

A50011

SLEEVE

DOWEL -, Serial Range: cover-housing

2шт.

7

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry head, 1/2" - 13 NC x 1-1/2", grade 8

10шт.

8

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - Ferry head, 1/2" - 13 NC x 1-3/4", grade 8

2шт.

9

RESERVED

1шт.

10

G50468

FILTER BOWL

- final drive

1шт.

11

A50547

SEAL

OIL SEAL - shaft

1шт.

Part of Seal Kit, P/N G101833

1шт.

12

L33736

ROLLER BEARING

TAPERED ROLLER BEARING - shaft, outer

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

13

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - tapered roller bearing

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

14

A50720

SPACER

- front

1шт.

15

G100294

GEAR

DRIVE GEAR - final drive

1шт.

16

A50721

SPACER

- rear

1шт.

17

A50324

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

18

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

TAPERED ROLLER BEARING - shaft, inner

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

19

G102001

PLATE

- end, shaft

1шт.

Part of Seal Kit, P/N G101833

1шт.

20

G101997

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Seal Kit, P/N G101833

1шт.

20

G101998

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of Seal Kit, P/N G101833

1шт.

20

G101999

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

Part of Seal Kit, P/N G101833

1шт.

21

R19888

SCREW

BOLT - hex drilled head, 9/16" - 18 NF x 1-1/4", if used

9шт.

22

391-804

ELECTRICAL WIRE

WIRE - tie, used with R19888 bolt, if used

3шт.

Part of Seal Kit, P/N G101833

1шт.

22a

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

may replace R19888 bolt and 391-804 tie wire Hex, 9/16"-18 x 1 1/4", G8, Full Thd

9шт.

22b

B17423

LOCTITE

- stud lock, No. 271, 2 oz. (50 ml), used with 28-920 bolt, if used, not shown

1шт.

23

G35217

SHAFT

PINION SHAFT - final drive

1шт.

24

L30821

BEARING CUP

- tapered roller bearing, pinion shaft, outer

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

25

1997116C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

- pinion shaft, outer

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

26

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

OIL SEAL - pinion shaft

1шт.

Part of Seal Kit, P/N G101833

1шт.

27

A50713

BEARING ASSY

CUP - tapered roller bearing, pinion shaft, inner

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

28

A50714

BEARING ASSY

TAPERED ROLLER BEARING - pinion shaft, inner

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

29

G102106

PLATE

- end, pinion shaft

2шт.

Part of Seal Kit, P/N G101833

1шт.

30

G102521

COVER

- pinion shaft

2шт.

31

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- cover

2шт.

Part of Seal Kit, P/N G101833

1шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

33

G49404

WASHER

- hardened

4шт.

34

A50726

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Seal Kit, P/N G101833

1шт.

34

A50725

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of Seal Kit, P/N G101833

1шт.

35

A50727

SLEEVE

- if used

2шт.

36

A50592

STUD

- 5/8" - 11 NC x 2-3/4"

34шт.

37

RESERVED

1шт.

38

232-41110

NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC

34шт.

G101833

KIT

- seal, Includes: ref. nos. 4, 5, 11, 19, 20, 22, 26, 29, 31, and 34, for complete kit see Figure 194

1шт.

Part of Overhaul Kit, P/N G101834

1шт.

G101834

DRIVE

KIT - overhaul, Includes: G101833 kit and ref. nos. 12, 13 17, 18, 24, 25, 27, and 28, for complete kit see Figure 194

1шт.
