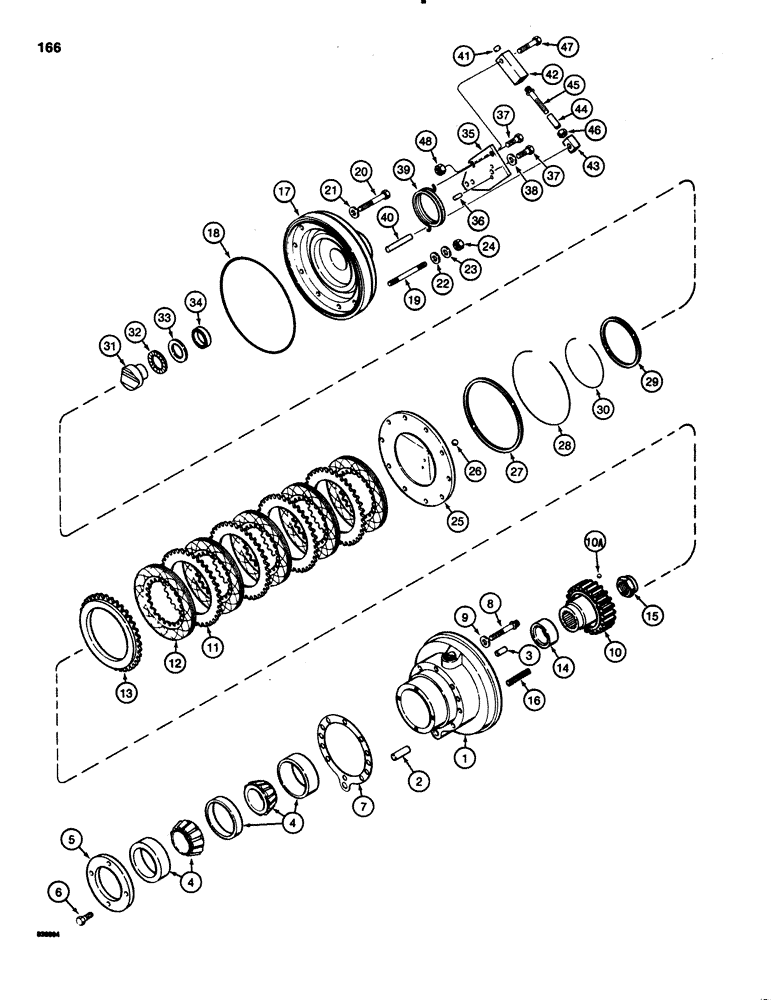

Запчасти Case 1150C (166) - TRANSMISSION BRAKES (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - brake, see Figure 156

2шт.

2

S64319

CALIPER

DOWEL - 1/2 x 1-1/2"

4шт.

3

A50801

TUBE

- oil

1шт.

4

A50685

BEARING ASSY,2.1255" ID x 4.126" OD x 2.891"

TAPERED ROLLER BEARING ASSEMBLY - brake

2шт.

5

A50686

RETAINER

- tapered roller bearing assembly

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

7

A50688

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

7

A50687

SHIM,.007" Thk

(0.178mm) .007" Thk

1шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

8

166-70

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

SCREW - Ferry head, 7/16" - 14 x 2-1/4"

16шт.

9

A50689

WASHER

- screw

16шт.

10

G103288

HUB CAP

HUB - brake disc, 29 external and 27 internal teeth, Includes: Ref. 10A

2шт.

10a

NSS

NOT SOLD SEPARAT

BALL - steel, 9/32" diameter

4шт.

11

A50028

PLATE

DISC - steel, used with A50030 pressure plate, 5/32" (2.29 mm) steel core, if used

8шт.

11

G101711

PLATE

DISC - steel, used with G103391 pressure plate, 1/8" (3.05 mm) steel core, if used

8шт.

12

A50029

PLATE

FRICTION DISC - used with A50030 pressure plate, if used

10шт.

12

G102354

PLATE

FRICTION DISC - used with G103391 pressure plate, if used

10шт.

13

A50030

PLATE

- pressure, .4375" thick, used with A50028 steel discs and A50029 friction discs, not stamped with part number, if used

2шт.

13

G103391

PLATE

- pressure, .406" thick, used with G101711 steel discs and G102354 friction discs, part number is stamped on outer side of plate, if used

2шт.

14

A50691

SPACER

- brake disc hub

2шт.

15

131-468

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - NF

2шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

16

A50692

COIL SPRING

SPRING - return, piston

20шт.

Part of Brake Seal Kit, P/N G101830

1шт.

17

A50695

COVER

- brake

2шт.

18

A50698

SEAL,Square, 3.4mm Thk x 240.89mm ID

GASKET - rubber

2шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

19

A51467

STUD

- 3/8" - 16 x 4-3/8"

7шт.

20

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

13шт.

21

D32117

COPPER WASHER

WASHER, COPPER

13шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

22

A50694

DISC

WASHER - with rubber insert

7шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

23

195-25

WASHER,3/8"

- flat, 3/8"

7шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

7шт.

A50705

PISTON

ASSEMBLY - brake, Includes: Ref. 25 and 26

2шт.

25

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

26

211-13

BALL,1/2" Dia

- steel 1/2" Dia

2шт.

27

A50707

SEAL,182.78mm ID x 191.64mm OD x 3.23mm Thk

- Teflon, large, inner

2шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

28

A50708

ELECTRICAL WIRE

WIRE - inner seal

2шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

29

A50709

SEAL,122.45mm ID x 131.32mm OD x 3.23mm Thk

- Teflon, small, outer

2шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

30

A50710

ELECTRICAL WIRE

WIRE - outer seal

2шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

G101829

GASKET KIT

KIT - transmission seal, Includes: P/N's A506687, A50688, and ref. no. 15, and G101830 kit, for complete kit see Figure 190

1шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

G101830

GASKET KIT

KIT - brake seal

1шт.

31

A50699

CAM

- brake actuating

2шт.

32

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

- cam

2шт.

33

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

RACE - thrust bearing

2шт.

34

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - cam

2шт.

Part of Brake Seal Kit, P/ N G101830

1шт.

35

A50700

LEVER

- brake actuating

2шт.

35

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

4шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

38

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

39

A50701

SPRING

- return, brake lever

2шт.

40

135-653

GROOVED PIN,1/2" x 3", Type D, Hardened

PIN, Grooved, 1/2" x 3", Type D, Hardened

2шт.

G100621

ADJUSTER

ASSEMBLY - brake, Includes: Ref. 41 - 45

2шт.

41

41-1008

PLUG,Cup, 1/2"

- adjuster block, 1/2"

1шт.

42

NSS

NOT SOLD SEPARAT

BLOCK - large

1шт.

43

NSS

NOT SOLD SEPARAT

BLOCK - small

1шт.

44

138-320

LOCK PIN,7/16" x 1 3/8", Slotted

ROLL PIN - 7/16 x 1-3/4"

1шт.

45

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

SCREW - Ferry head, 1/4"-20 NC x 2-1/2"

1шт.

46

25-104

NUT,1/4"-20, G5

1шт.

47

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

48

25-146

JAM NUT,Jam, 3/8"-16, G5

JAM NUT - 3/8" - 16 NC

2шт.

G101830

GASKET KIT

KIT - brake seal, Includes: ref. nos. 16, 18, 21, 22,23, 27, 28, 29, 30, and 34, for complete kit see Figure 190

1шт.
