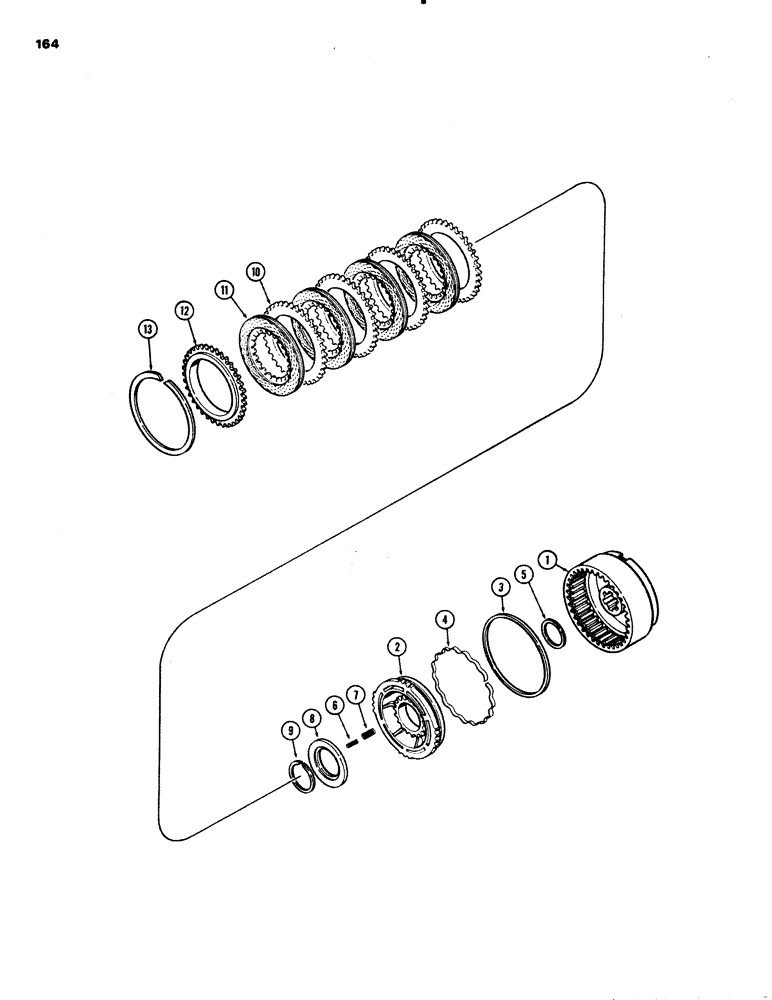

Запчасти Case 1150C (164) - TRANSMISSION CLUTCHES (06) - POWER TRAIN

G102377

CLUTCH

ASSEMBLY - transmission, Includes: Ref. 1 - 13

8шт.

1

A50670

DRUM

HOUSING - clutch assembly

1шт.

2

A50571

PISTON

- clutch assembly

1шт.

3

A50414

SEALING RING

RING - seal, large

1шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

4

G102095

SPRING

- wave type

1шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

5

A50415

SEAL

RING - seal, small

1шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

6

A51826

SPRING

- inner, piston return

18шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

7

A51825

SPRING

- outer, piston return

18шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

8

R11016

RETAINER

- spring

1шт.

9

A27233

RING

SNAP RING - retainer

1шт.

G102416

KIT

- clutch plates, Includes: Ref. 10 and 11

1шт.

10

G101711

PLATE

DISC - steel, external teeth

4шт.

11

G102354

PLATE

FRICTION DISC - internal teeth

4шт.

12

G103391

PLATE

- pressure, has part number on outer side

1шт.

13

30785

RING

SNAP RING - .125" (3.17 mm) thick

1шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

13

A51827

RING

SNAP RING - .110" (2.79 mm) thick

1шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

13

A51828

RING

SNAP RING - .092" (2.34 mm) thick

1шт.

Part of Clutch Seal Kit, P/N G101831

1шт.

G101831

GASKET KIT

KIT - clutch repair, Includes: ref. nos. 3, 4, 5, 6, 7, 30785, A51827, and A51828, for complete kit see Figure 192

1шт.
