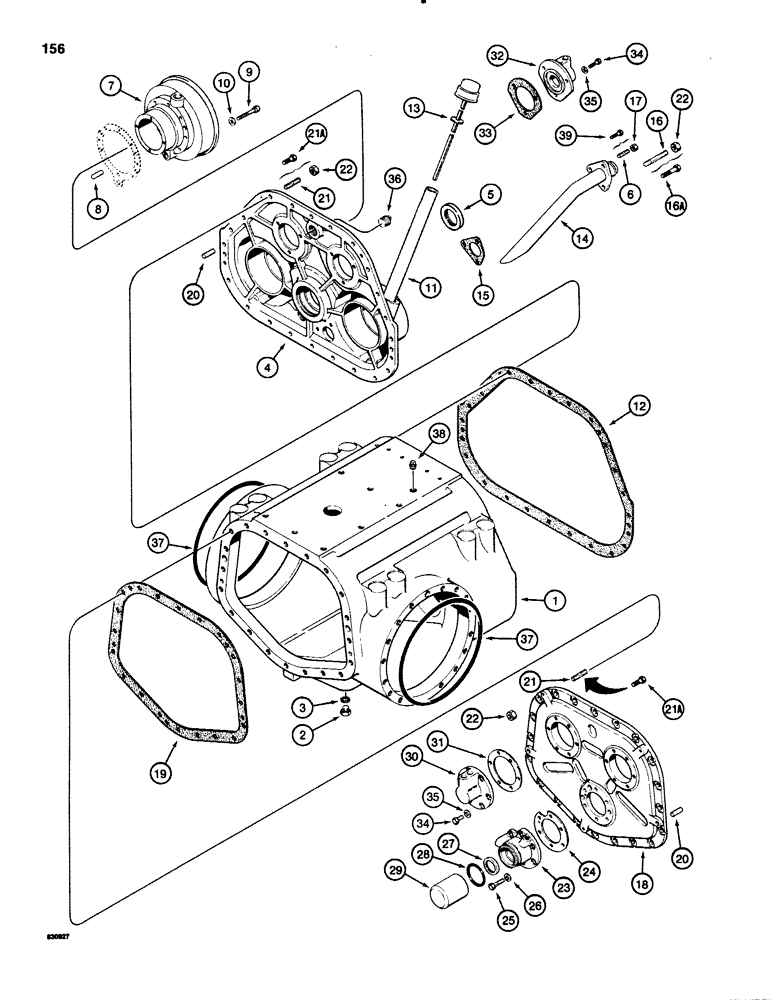

Запчасти Case 1150C (156) - TRANSMISSION HOUSING, COVERS AND DIPSTICK (06) - POWER TRAIN

G100422

TRANSMISSION

ASSEMBLY - before transmission SN 2863141, parts list Figures 156 - 188

1шт.

G103020

TRANSMISSION ASSEMBLY - transmission SN 2863141 and after, parts list Figures 156 - 188

1шт.

1

A51169

HOUSING

- transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

A136583

HOUSING - transmission, order G130460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

G102756

HOUSING

- transmission, order G103460 housing, (2) G106157 pins, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

1

G103460

HOUSING

- transmission, when ordered as a replacement for any of the above, also order (2) G106157 pins, see Figure 170, (2) S5871 O-rings, and (1) 221-12 pipe plug

1шт.

2

A50014

PLUG

DRAIN PLUG - transmission housing

1шт.

3

A58608

GASKET

- nylon, no longer used, order G102141 copper washer

1шт.

3

G102141

SEALING WASHER

WASHER - copper, drain plug

1шт.

Part of seal kit P/N G101829.

1шт.

G100419

SCRAPER

COVER ASSEMBLY - front, uses 217-177 barb fitting, see Figure 138, no longer used, order G104174 cover and 217-393 barb fitting, Includes: Ref. 4 - 11

1шт.

G104174

COVER

ASSEMBLY - front, uses 217-393 barb fitting, see Figure 138, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

5

A50420

SEAL

OIL SEAL - input shaft

1шт.

Part of seal kit P/N G101829.

1шт.

6

A50362

STUD

- oil suction tube, no longer used, order Ref. 39 bolt

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - brake

2шт.

8

S64319

CALIPER

DOWEL - cover mounting

4шт.

9

166-70

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

SCREW - Ferry head, 7/16" - 14 NC x 2-1/4"

16шт.

10

A50689

WASHER

- flat, hardened

16шт.

11

A50596

TUBE

- oil filler

1шт.

12

G35210

GASKET

- front cover

1шт.

Part of seal kit P/N G101829.

1шт.

13

A50600

DIPSTICK

- transmission

1шт.

14

A51515

TUBE

- oil suction

1шт.

15

A51732

GASKET

- oil suction tube

1шт.

Part of seal kit P/N G101829.

1шт.

16

G102127

STUD

- 1/2" - 13 NC x 3-3/8", if used

1шт.

16a

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex head, 1/2" - 13 NC x 2-1/2", grade 8, may be used in place of ref. 16 stud and ref. 22 nut, if used

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used with ref. 6 stud, if used

2шт.

18

A136169

COVER

- rear, no longer available, order G102759 cover

1шт.

18

G102759

COVER

- rear

1шт.

19

G35211

GASKET

- rear cover

1шт.

Part of seal kit P/N G101829.

1шт.

20

S64319

CALIPER

DOWEL - cover mounting

4шт.

21

G102110

BOLT

- 1/2" - 13 NC x 1-7/8", if used

41шт.

21a

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

May be used in place of ref. 21 stud and ref. 22 nut, if used Hex, 1/2"-13 x 1 1/4", G8, Full Thd

41шт.

22

88871

NUT,1/2"-13, GC

NUT, LOCK, , Used with Ref. 21 stud only, if used 1/2"-13, GC

42шт.

23

G102240

CAP

- rear, input shaft

1шт.

24

G102757

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit P/N G101829.

1шт.

24

G102758

SHIM,.007" Thk

(0.1778 mm) .007" Thk

1шт.

Part of seal kit P/N G101829.

1шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

26

D32117

COPPER WASHER

WASHER, COPPER

6шт.

Part of seal kit P/N G101829.

1шт.

27

A54107

OIL SEAL,38.1mm ID x 8mm Thk

OIL SEAL - PTO shaft

1шт.

Part of seal kit P/N G101829.

1шт.

28

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- cover, winch models only

1шт.

29

G101696

PROTECTIVE COVER

COVER - PTO shaft

1шт.

30

A50672

CAP

COVER - rear, clutch shafts

2шт.

31

72223

BLOCK

SHIM - .002" (0.0508 mm) thick

1шт.

Part of seal kit P/N G101829.

1шт.

31

1342255C1

SHIM

- .007" (0.1778 mm) thick

1шт.

Part of seal kit P/N G101829.

1шт.

32

A50671

CAP

COVER - front, clutch shafts

2шт.

33

R11428

GASKET

- front cover, clutch shafts

2шт.

Part of seal kit P/N G101829.

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

35

D32117

COPPER WASHER

WASHER, COPPER

18шт.

Part of seal kit P/N G101829.

1шт.

36

221-6

X,Sq Hd, 1"-11 1/2 NPTF

PLUG - square head, 1" NPT, if used, used before transmission SN 2806173

1шт.

37

S5871

O-RING,11.984" ID x 12.262" OD x 0.139"

- housing to final drive, used with G130460 housing

2шт.

Part of seal kit P/N G101829.

1шт.

38

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT, may be used with G103460 housing only

1шт.

Part of seal kit P/N G101829.

1шт.

39

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex head, 3/8" - 16 NC x 1", grade 8, replaces A50362 stud (ref. 6) and 25-106 nut (ref. 17)

2шт.

G101829

GASKET KIT

KIT - seal, Includes: Refs. 3 (P/N G102141), 5, 12, 15, 19, 24, 24, 26, 27, 31, 31, 33, 35, 37 and 38, for complete kit see Figure 190

1шт.
