(154) - R42732 DRIVE SHAFT-DOZER AND DRAWBAR MODELS, R42733 DRIVE SHAFT-LOADER MODELS, SEE ITEM 8 FOR I.D.

Запчасти Case 1150C (154) - R42732 DRIVE SHAFT-DOZER AND DRAWBAR MODELS, R42733 DRIVE SHAFT-LOADER MODELS, SEE ITEM 8 FOR I.D. (06) - POWER TRAIN

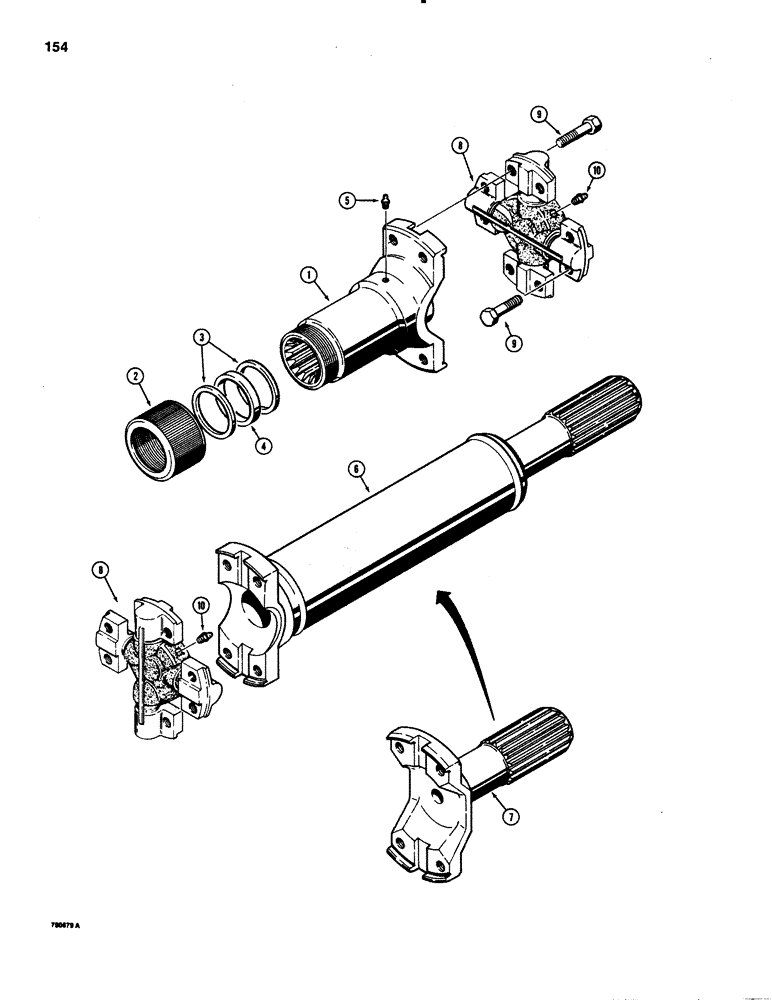

Схема запчастей Case 1150C - (154) - R42732 DRIVE SHAFT-DOZER AND DRAWBAR MODELS, R42733 DRIVE SHAFT-LOADER MODELS, SEE ITEM 8 FOR I.D. (06) - POWER TRAIN
8
2
4
9
1
8
3
7
10
6
10
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R42732

DRIVE SHAFT

ASSEMBLY - dozer and drawbar models, if used, see also Figure 152, Includes: Ref. 1 - 10

1шт.

R42733

DRIVE SHAFT

ASSEMBLY - loader models, if used, see also Figure 152, Includes: Ref. 1 - 10

1шт.

A47519

YOKE

ASSEMBLY - drive shaft, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

2

A18388

CAP

- yoke

1шт.

3

A47521

WASHER

- felt retaining

2шт.

4

A18390

WASHER

- felt

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" NPT

1шт.

6

N6169

SHAFT

- drive shaft, R42732 dirve shaft only

1шт.

7

N6162

YOKE

SHAFT - drive shaft, R42733 drive shaft only

1шт.

N6168

DRIVE

UNIVERSAL JOINT ASSEMBLY - drive shaft, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

9

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special

8шт.

10

219-417

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" NPT

1шт.
