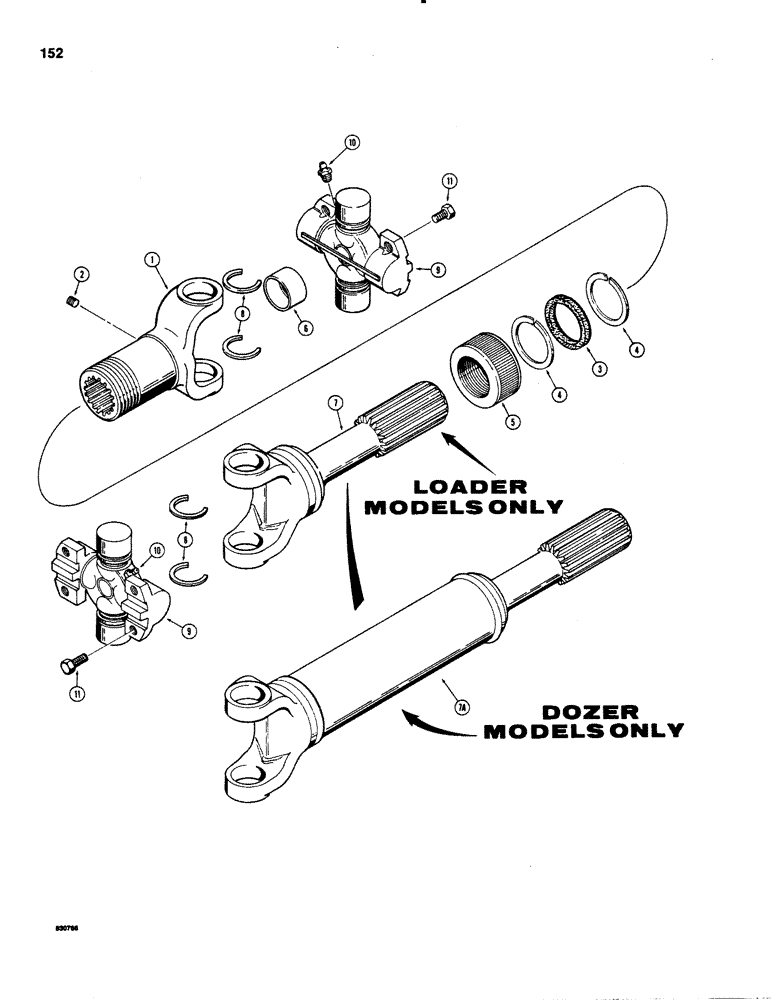

(152) - DRIVE SHAFT - DOZER AND DRAWBAR MODELS, SEE ITEM 9 FOR I.D.

Запчасти Case 1150C (152) - DRIVE SHAFT - DOZER AND DRAWBAR MODELS, SEE ITEM 9 FOR I.D. (06) - POWER TRAIN

Схема запчастей Case 1150C - (152) - DRIVE SHAFT - DOZER AND DRAWBAR MODELS, SEE ITEM 9 FOR I.D. (06) - POWER TRAIN
2
6
7a
5
9
4
7
3
8
11
4
10
8
10
9
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R37956

LUG

DRIVE SHAFT ASSEMBLY - dozer and drawbar models, no longer available, order R42732 drive shaft assembly (see Figure 154), R42731 torque converter yoke, and G103021 transmission yoke, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

square socket head, 1/8" NPT

1шт.

3

A18390

WASHER

felt

1шт.

4

A18387

WASHER

felt retaining

2шт.

5

A18388

CAP

yoke

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - cup

1шт.

7a

R30070

TUBE

SHAFT - dozer and drawbar models

1шт.

D76949

U-JOINT SPIDER

UNIVERSAL JOINT ASSEMBLY - drive shaft, Includes: Ref. 8 - 11

2шт.

8

D31440

RING

retaining

2шт.

9

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE - straight, 1/4" - 28 NF

1шт.

11

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

R37955

SHAFT

DRIVE ASSEMBLY - loader models, no longer available, order R42733 drive shaft assembly (see Figure 154), R42731 torque converter yoke, and G103021 transmission yoke

1шт.

R30067

YOKE

ASSEMBLY - drive shaft loader models, see ref. 9, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - drive shaft loader models, see ref. 9

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

square socket head, 1/8" NPT, drive shaft loader models, see ref. 9

1шт.

3

A18390

WASHER

felt, drive shaft loader models, see ref. 9

1шт.

4

A18387

WASHER

felt retaining, drive shaft loader models, see ref. 9

2шт.

5

A18388

CAP

yoke, drive shaft loader models, see ref. 9

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - cup, drive shaft loader models, see ref. 9

1шт.

7

R30069

YOKE

SHAFT - drive shaft loader models, see ref. 9

1шт.

D76949

U-JOINT SPIDER

UNIVERSAL JOINT ASSEMBLY - drive shaft loader models, see ref. 9, Includes: Ref. 8 - 11

2шт.

8

D31440

RING

retaining, drive shaft loader models, see ref. 9

2шт.

9

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft loader models, see ref. 9

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE - straight, 1/4" - 28 NF, Drive shaft loader models, See Ref. 9

1шт.

11

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

drive shaft loader models, see Ref 9 Hex, 3/8"-24 x 1", G8, Full Thd

8шт.
