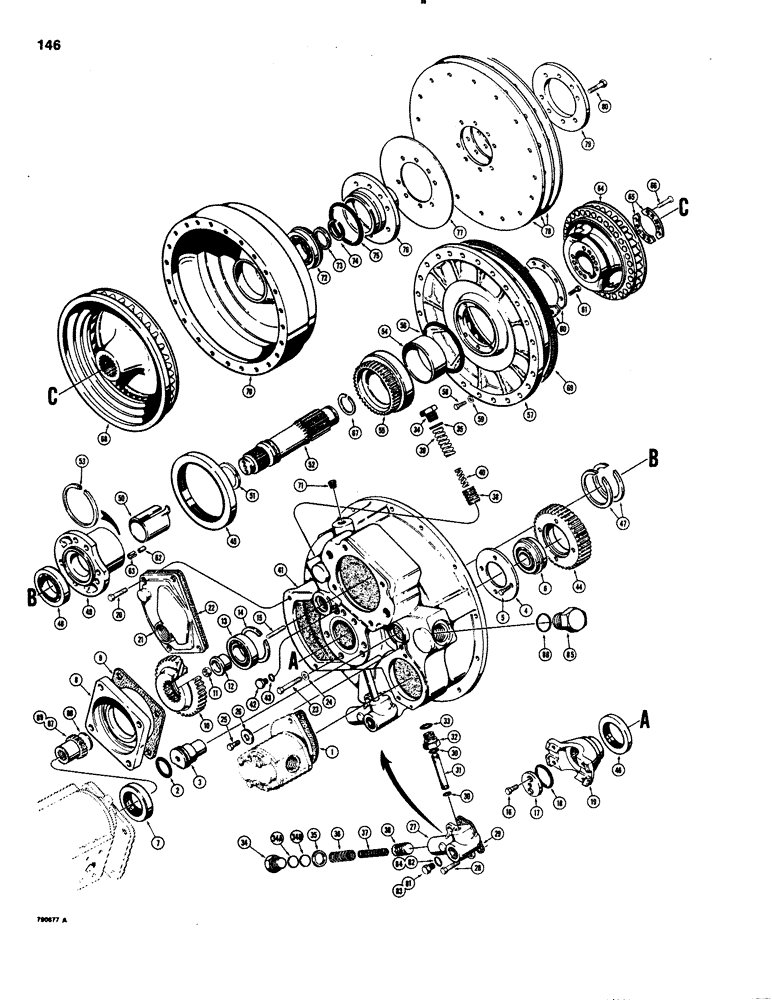

Запчасти Case 1150C (146) - TORQUE CONVERTER (06) - POWER TRAIN

R27300

CONVERTER

TORQUE CONVERTER - dozer and drawbar models, Twin Disc Spec. No. N62768, used before tractor SN 7307688, Includes: Ref. 1 - 86

1шт.

R27301

CONVERTER

TORQUE CONVERTER - loader models, Twin Disc Spec. No. N62767, used before tractor SN 7307691, Includes: Ref. 1 - 86

1шт.

R42734

CONVERTER

TORQUE CONVERTER - dozer and drawbar models, Twin Disc Spec. No. N64898, used on tractor SN 7307688 thru tractor SN 7308950, Includes: Ref. 1 - 86

1шт.

R42735

CONVERTER

TORQUE CONVERTER - loader models, Twin Disc Spec. No. N64897, used on tractor Sn 7307691 thru tractor SN 7308950, Includes: Ref. 1 - 86

1шт.

R49324

CONVERTER

TORQUE CONVERTER - dozer and drawbar models, Twin Disc Spec. No. N65943, used on tractor Sn 7308951 and after, Includes: Ref. 1 - 86

1шт.

R49325

CONVERTER

TORQUE CONVERTER - loader models, Twin Disc Spec. No. N65944, used on tractor SN 7308951 and after, Includes: Ref. 1 - 86

1шт.

1

D32000

GASKET

- pump, for pump and mounting see Figure 138

1шт.

2

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- idler gear shaft

1шт.

3

R29100

SHAFT

- idler gear

1шт.

4

R29099

PLATE

- retaining

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

R29093

BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W

- idler gear

1шт.

7

D51517

SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk

OIL SEAL - equipment pump, used before tractor SN 7308951 only, see Figure 232 for parts used after serial number

1шт.

8

D31938

CARRIER

- oil seal, used before tractor SN 7308951 only, see Figure 232 for parts used after serial number

1шт.

9

D32004

GASKET

- carrier, not part of torque converter assembly after tractor Sn 7308951, order separately

1шт.

10

D32003

GEAR

DRIVEN GEAR - torque converter

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

12

D32032

BEARING,1.3782" OD x 1.03

RETAINER - ball bearing

1шт.

13

R29094

BEARING, ROLLER, CYL,34.99mm ID x 72mm OD x 17mm W

BALL BEARING - driven gear

1шт.

14

D32069

RING

SNAP RING - driven gear

1шт.

15

D32067

STUD

- 3/8" - 24 NF x 1-1/2"

1шт.

16

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

17

D32018

PLATE

- yoke retaining

1шт.

18

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- plate

1шт.

19

D31315

YOKE

- used with R37955 or R37956 drive shaft, see Figure 152, if used

1шт.

REF. 19 HAS 27TEETH WITH 4 THREADED HOLES D31315 AND R42731

1шт.

19

R42731

YOKE

- used with R42732 or R42733 drive shaft, see Figure 154, if used

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

21

R29098

PLATE

- cover, housing

1шт.

22

D32005

GASKET

- cover

1шт.

23

15-640

SCREW,Hex, 3/8" - 16 x 2 1/2"

BOLT - hex head, 3/8" - 16 NC x 2-1/2"

6шт.

24

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

6шт.

25

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

26

D32118

WASHER

- special

1шт.

27

D37378

HOUSING

BODY - pressure regulator valve, stamped 206002E, no longer available, order N6952 body and 218-5156 plug

1шт.

27

N6952

HOUSING

BODY - pressure regulator valve, stamped 206002K

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

D32002

GASKET

- pressure regulator valve

1шт.

30

D32114

O-RING,0.75" ID x 0.875" OD

- tube

2шт.

31

R30090

TUBE,0.62" ID x 0.87" OD x 3.62" L

- pressure regulator valve

1шт.

32

D37379

CONNECTOR, ELEC

ADAPTER - straight, not used, no longer required

1шт.

33

D37371

OIL SEAL

O-RING - adapter, not used, no longer required

1шт.

34

D32013

PLUG

- pressure regulator valve

2шт.

34a

N6953

SHIM,.0359" Thk

Pressure regulator valve, Used with N6915 spring only (item 36), if used .0359" Thk

1шт.

34b

N6954

SHIM,.0239" Thk

Pressure regulator valve, Used with N6915 spring only (item 36), if used .0239" Thk

1шт.

35

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- pressure regulator valve

2шт.

36

D72857

SPRING

- outer, orange, 3-3/16" (80 mm) free length, if used

1шт.

36

N6915

SPRING

- outer, blue, 2-15/16" (75 mm) free length, if used

1шт.

37

D72856

SPRING

- inner

1шт.

38

D32014

PISTON

- pressure regulator valve

2шт.

39

D32031

SPRING

- outer, relief valve

1шт.

40

D32021

SPRING

- inner, relief valve

1шт.

41

D77622

HOUSING

- torque converter

1шт.

42

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 43 Hex Hd, 7/16"-20 ORB

1шт.

43

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- plug

1шт.

44

R29096

GEAR

IDLER GEAR - torque converter

1шт.

45

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

OIL SEAL - gear

1шт.

46

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

OIL SEAL - drive shaft yoke

1шт.

47

D32070

RING

SNAP RING - carrier

2шт.

48

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

- output shaft, inner

1шт.

49

D75861

GUIDE

CARRIER - gear

1шт.

50

D32027

SLEEVE

- split

1шт.

51

A20229

RING

RETAINING RING - shaft

1шт.

52

D32026

SHAFT

OUTPUT SHAFT - torque converter

1шт.

53

A20231

RING

SNAP RING - carrier

1шт.

D75862

GEAR

ASSEMBLY - pump drive, Includes: Ref. 54 and 55

1шт.

54

NSS

NOT SOLD SEPARAT

BUSHING - steel backed, must order D75862 gear assembly

1шт.

55

NSS

NOT SOLD SEPARAT

GEAR - pump drive

1шт.

56

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- impeller, Latch Hook Weld Assy.

1шт.

57

D31934

IMPELLER

- loader models only

1шт.

57

D37376

TURBINE

IMPELLER - dozer and drawbar models only

1шт.

58

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

59

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- special

24шт.

60

D32016

PLATE

- clamp

2шт.

61

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

8шт.

62

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

63

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

64

D37377

GUIDE

WHEEL - dozer and drawbar models only

1шт.

64

D31936

GUIDE

WHEEL - loader models only

1шт.

65

D32010

PLATE

- clamp

2шт.

66

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 1"

6шт.

67

A22889

RING

SNAP RING - shaft

1шт.

68

D31935

TURBINE

- torque converter

1шт.

69

D31998

GASKET

- rotating housing

1шт.

70

N8410

HOUSING

- rotating

1шт.

71

221-841

PLUG

- square socket, 1/4" NPT

1шт.

72

A63271

BALL BEARING,1.5748" ID x 3.799" OD x 0.9055"

- output shaft, outer

1шт.

73

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

SPACER - ball bearing

1шт.

74

A26946

RING

SNAP RING - ball bearing

1шт.

75

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- flywheel pilot

1шт.

76

D32015

WHEEL

PILOT - flywheel

1шт.

77

D32025

SHIM

- flex plate

1шт.

78

D32017

PLATE

FLEX PLATE - converter

3шт.

79

D32028

WASHER

- support

1шт.

80

121-421

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 1 1/4", Gr 8

BOLT - hex, self-locking, 1/2" - 13 NC x 1-1/4", grade 8

6шт.

81

76349

PLUG,9/16" - 18 ORB

Used with D37378 valve body only, Incl. Ref. 82 Hex Hd, 9/16"-18 ORB

1шт.

82

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 218-5155 plug

1шт.

83

214389

PLUG,3/4" - 16 ORB

Used with N6952 valve body only, Includes Ref. 84 Hex Hd, 3/4"-16 ORB

1шт.

85

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes: Ref. 86 Hex Hd, 1 5/16"-12 ORB

1шт.

86

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5160 plug

1шт.

87

D37030

HUB

GEAR - equipment pump drive, 3" (76 mm) total length, used before tractor SN 7308951, Includes: Ref. 88

1шт.

88

41-44

PLUG

EXPANSION PLUG - D37030 gear, 2-3/4"

1шт.

89

R46562

PINION

GEAR - equipment pump drive, 2" (51 mm) total length, used on tractor SN 7308951 and after

1шт.

R38109

KIT

- overhaul, includes: Ref. 6, 13, 14, 34A, 34B, 36, 37, 38, 39, 40, 47, 48, 50, 67, 72, 74 & 76, plus R38108 seal kit

1шт.

R38108

GASKET KIT

KIT - seal, includes: Ref. 1, 2, 7, 9, 18, 22, 24, 29, 30, 33, 35, 43, 45, 46, 51, 53, 56, 69, 75, 77, 84 & 86

1шт.

84

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 218-5156 plug

1шт.
