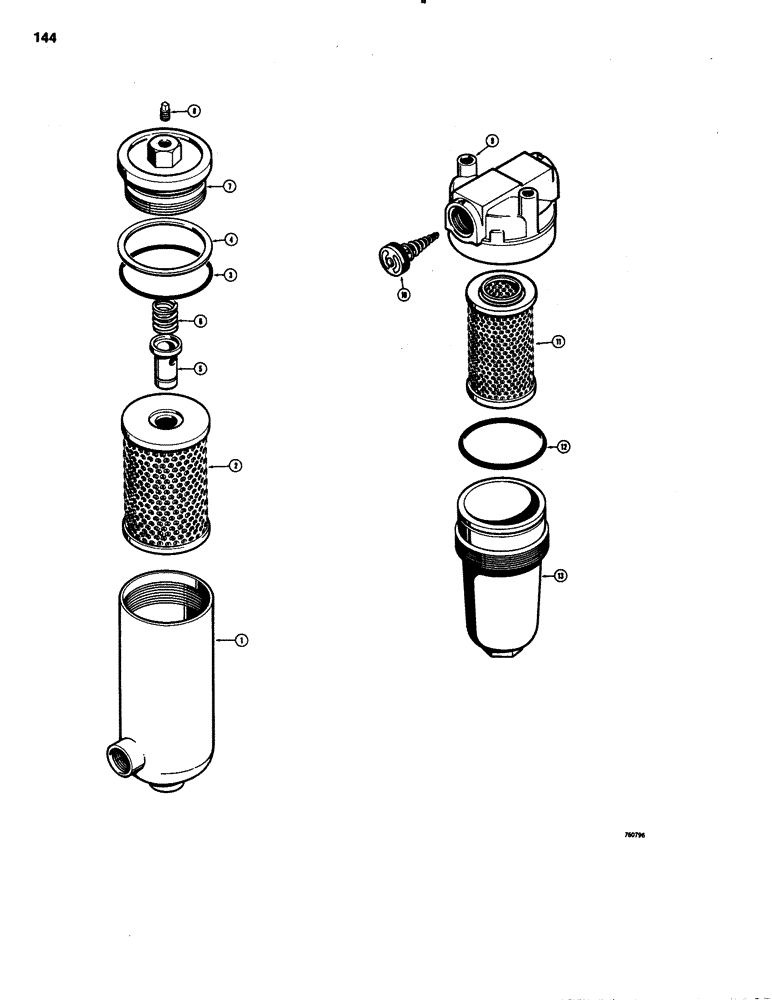

Запчасти Case 1150C (144) - OIL FILTERS, G102705 TRANSMISSION OIL FILTER (06) - POWER TRAIN

G102705

FILTER

ASSEMBLY - transmission oil, Includes: Ref. 1 - 8

2шт.

1

G100002

TUBE,7.89" L

BODY - oil filter

1шт.

G102111

HYDRAULIC OIL FILTER

KIT - oil element, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (6 Micron)

1шт.

3

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

filter

1шт.

4

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Filter O-Ring

1шт.

5

D37207

VALVE

BYPASS - filter

1шт.

6

D31212

SPRING

bypass valve

1шт.

7

A60765

CAP

filter

1шт.

8

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

square head, 1/8" NPT

1шт.

R36416

FILTER

ASSEMBLY - suction line, Includes: Ref. 9 - 13

1шт.

D73719

HEAD

ASSEMBLY - R36416 trans oil filter- suction line, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - R36416 trans oil filter- suction line

1шт.

10

D49376

VALVE

RELIEF - R36416 trans oil filter- suction line

1шт.

11

R30103

FILTER

ELEMENT - R36416 trans oil - suction line

1шт.

12

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

R36416 trans oil filter- suction line

1шт.

13

D61948

HOUSING

R36416 trans oil filter- suction line

1шт.
