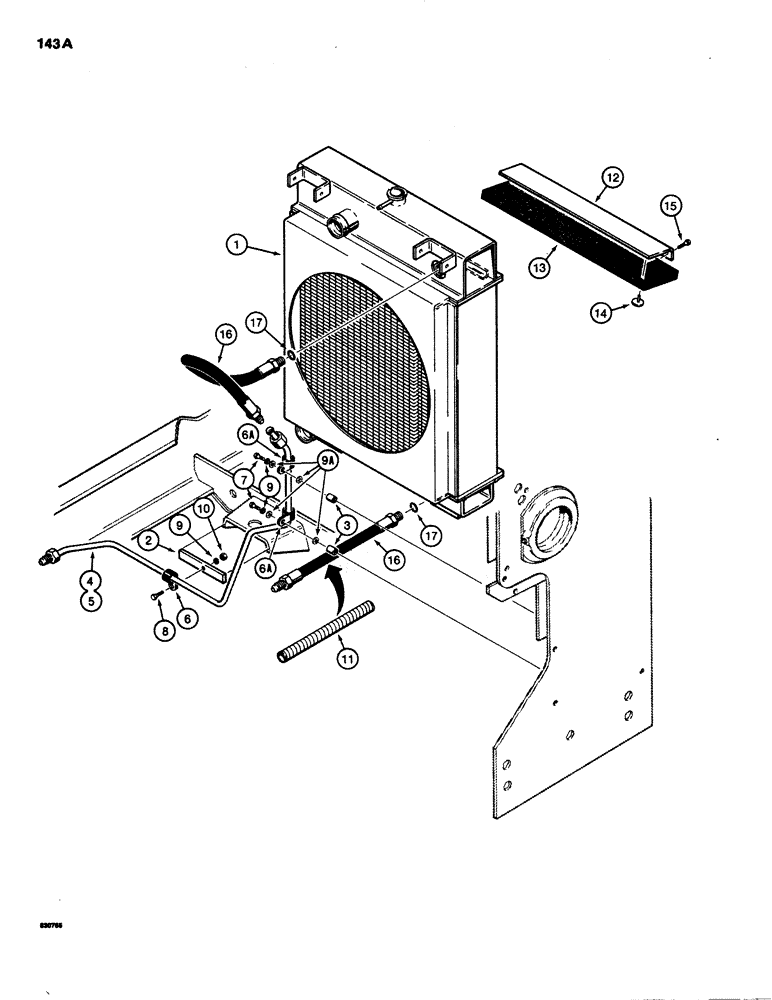

Запчасти Case 1150C (143A) - COOLING CIRCUIT, SPECIAL PARTS USED WITH HEAVY DUTY RADIATOR (06) - POWER TRAIN

R49598

RADIATOR

KIT - conversion parts for heavy duty radiator, includes instruction sheet, Includes: Ref. 1 - 14

1шт.

1

R49405

RADIATOR

ASSEMBLY - parts list Figure 054

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - tube mounting, welds to engine support

1шт.

3

D42505

BLOCK

SPACER - tapped block, welds to radiator shroud, right-hand side

2шт.

4

R49517

TUBE ASSY.

TUBE - to top of radiator, loader models only

1шт.

5

R49528

TUBE ASSY.

TUBE - to top of radiator, dozer models only

1шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P-style, tube, lower

1шт.

6a

51200329

CLIP

CLAMP - P-style, tube, upper

2шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

3шт.

9a

195-25

WASHER,3/8"

- flat, 1/2", one on each side of ref. 6A clamp

4шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

11

R43083

LOOM

WRAP - lower radiator hose

1шт.

12

R49683

LARGE PLATE

BAFFLE - heavy duty radiator, lower, used on dozer and drawbar models, Includes: Ref. 13 and 14

1шт.

13

REF

INSTRUCTION

PAD - antirecirculation, 5" (127 mm) x 29" (737 mm), cut from R30870 bulk, see below

1шт.

Part of Pad P/N R30870

1шт.

14

F64518

RETAINER

- pad

6шт.

15

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

3шт.

16

R27118

HOSE

- to radiator, 22" (559 mm) long, used with all radiators, Includes: Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm) Includes: Ref. 13

1шт.

345-44

ADHESIVE

- for attaching pads to metal surfaces, spray can, 23 fluid ounces

1шт.
