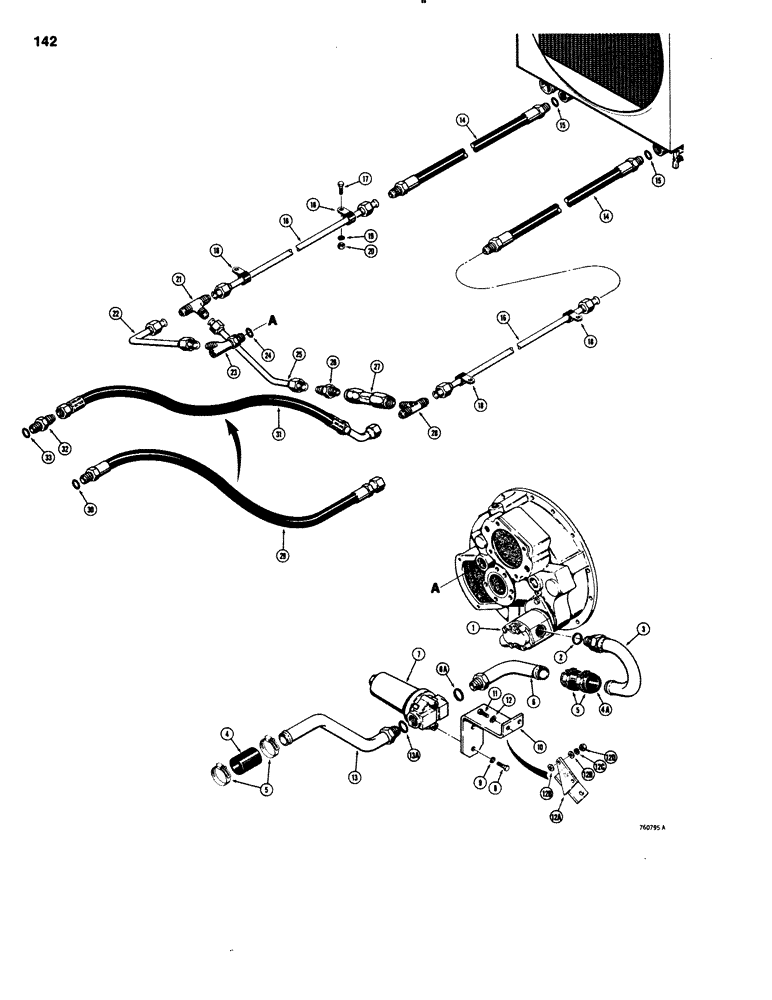

Запчасти Case 1150C (142) - CRAWLER HYDRAULIC CIRCUIT, TRANSMISSION TO TORQUE CONVERTER PUMP SUCTION LINE, COOLING CIRCUIT (06) - POWER TRAIN

1

R25586

PUMP

- torque converter, parts list Figue 150

1шт.

R25586R

REMAN-HYD PUMP

1150C

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- pump

1шт.

3

R27913

TUBE,38.1 mm OD x 152.4, 114.3 mm L

- at pump

1шт.

4

R44004

HOSE

- 1-1/2" (38 mm) ID x 3-1/2" (89 mm) long

1шт.

4a

R43922

HOSE

- 1-1/2" (38 mm) ID x 4" (102 mm) long

1шт.

5

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.

6

R36423

TUBE,1.5" OD x 4.62, 4" L

- to filter, dozer and drawbar models, Includes: Ref. 6A

1шт.

6

R36448

TUBE,1.5" OD x 6.5, 4.5" L

- to filter, loader models, Includes: Ref. 6A

1шт.

6a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- R36423 and R36448 tubes

1шт.

7

R36416

FILTER

- parts list page 145

1шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

R29521

BRACKET

- filter mounting, dozer and drawbar models, mounts on main frame

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

12a

R26381

BRACKET

- filter mounting, loader models, mounts on right-hand transmission brake housing

1шт.

12b

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

12c

92-6

LOCK WASHER,3/8"

2шт.

12d

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

R36452

TUBE,1.5" OD x 12.75, 3.93" L

- to transmission, dozer and drawbar models, Includes: Ref. 13A

1шт.

13

R36420

TUBE

- to transmission, loader models, Includes: Ref. 13A

1шт.

13a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- R36452 and R36420 tubes

1шт.

14

R27118

HOSE

- at radiator, 22" (559 mm) long, Includes: Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

16

R37526

TUBE,0.75" OD x 37.1, 1.2" L

- dozer and drawbar models

2шт.

16

R26057

TUBE,0.75" OD x 36" L

- loader models

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

21

218-596

TEE,1 1/16"-12 37 Degree

- male

1шт.

22

R27112

TUBE,0.75" OD x 10.5, 5.3" L

- at torque converter, dozer and drawbar models

1шт.

22

R26065

TUBE,0.75" OD

- at torque converter, loader models

1шт.

23

D44004

FITTING

TEE - special, Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

25

R27114

TUBE,0.75" OD x 14.4, 2.8" L

- crossover, dozer and drawbar models

1шт.

25

R26166

TUBE,0.75" OD x 14.8, 2.7" L

- crossover, loader models

1шт.

26

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

27

R27233

VALVE

RELIEF VALVE - cooling circuit

1шт.

28

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- male

1шт.

29

R26056

HOSE

- 35" (889 mm) long, loader models, Includes: Ref. 30

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

31

R27111

HOSE

- 36" (914 mm) long, dozer and drawbar models

1шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, dozer and drawbar models, Incl. Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.
