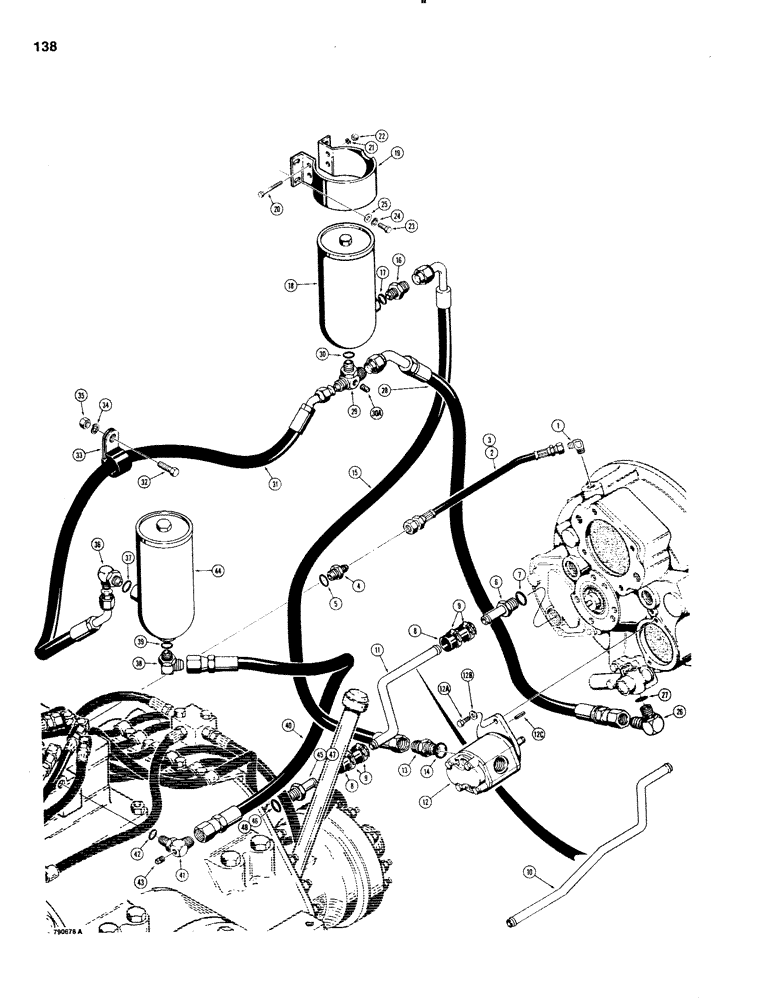

Запчасти Case 1150C (138) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

1

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

2

A51456

HYDRAULIC HOSE

HOSE - 28" (711 mm) long, dozer and drawbar models

1шт.

3

G35438

HYDRAULIC HOSE,25mm ID x 2000mm L, SAE 100R1

- Loader models 6.35 mm ID x 508.00 mm, SAE 100R1

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - male, straight, Incl. Ref. 5

1шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

6

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

BARB FITTING - 1-5/16" - 12 NF, Includes: Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- barb fitting

1шт.

8

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

2шт.

9

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

10

R27106

TUBE

- torque converter to transmission, dozer and drawbar models

1шт.

11

R26071

TUBE,0.75" OD

- torque converter to transmission, loader models

1шт.

12

R25586

PUMP

- torque converter, parts list Figure 150

1шт.

R25586R

REMAN-HYD PUMP

1150C

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12b

D32117

COPPER WASHER

WASHER, COPPER, Special

2шт.

12c

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

13

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - male, straight, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

15

R27923

HOSE

- filter to pump, dozer and drawbar models

1шт.

15

R26395

HOSE

- filter to pump, loader models

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

18

G102705

FILTER

OIL FILTER - parts list Figure 144

1шт.

19

D31217

BRACKET

CLAMP - filter

2шт.

20

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex head, 5/16" - 18 NC x 3-1/4"

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

195-25

WASHER,3/8"

- flat, 3/8"

8шт.

26

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- male, 90 degree, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

28

R27924

HOSE

- torque converter to filter, 36" (914 mm) long, dozer and drawbar models

1шт.

28

R26396

HOSE

- torque converter to filter, 29" (727 mm) long, loader models

1шт.

29

R33540

TEE - male, adjustable, Includes: Ref. 30

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

30a

221-11

PLUG,Sq Hd, 1/8"-27

- square, 1/8" NPT

1шт.

31

R29542

HOSE

- filter to filter, 50" (1270 mm) long

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

33

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

36

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, male, adjustable, Includes: Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

38

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, male, Incl. Ref. 39 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

40

R29541

HOSE

- filter to transmission, 28" (711 mm) long

1шт.

41

R30286

FITTING

ELBOW - 90 degree, special, part of G100422 and G103020 transmission assemblies, see Figure 186, ref. 35, Includes: Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

43

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, part of G100422 and G103020 transmission assemblies, see Figure 186, ref. 37

1шт.

44

G102705

FILTER

- oil, parts list Figure 144

1шт.

45

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

BARB FITTING - 1-1/16" - 12 NF OD thread, if used, Includes: Ref. 46

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- barb fitting

1шт.

47

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

BARB FITTING - 1-5/16" - 12 NF OD thread, if used, Includes: Ref. 48

1шт.

48

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- barb fitting

1шт.
