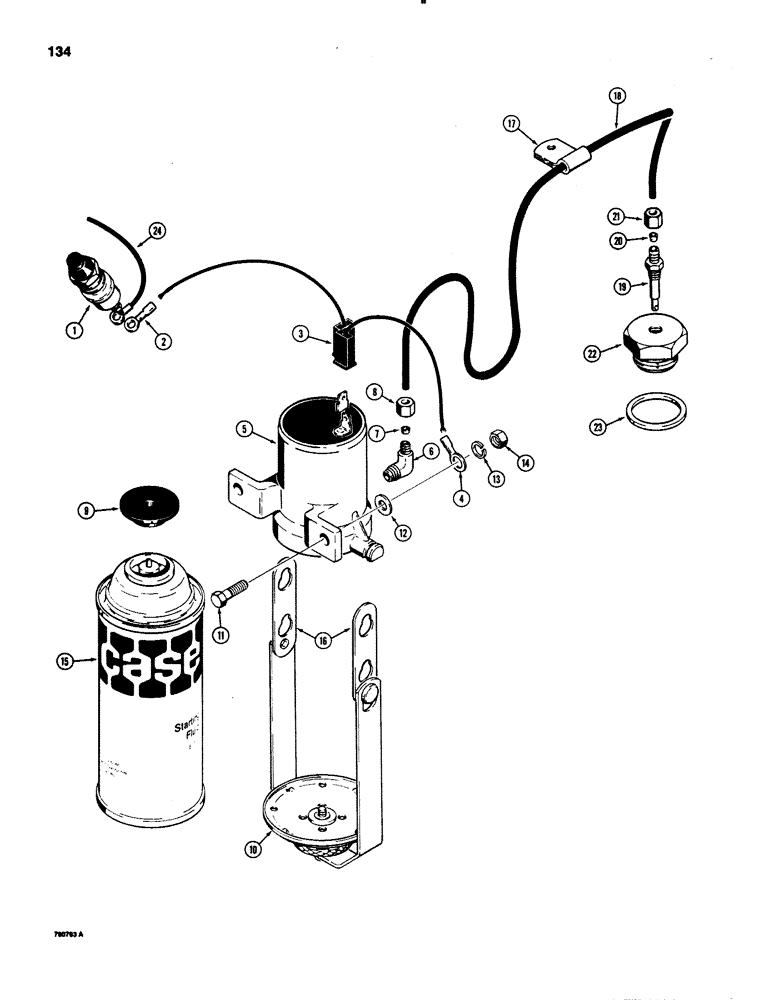

Запчасти Case 1150C (134) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- push button, cold start

1шт.

2

NSS

NOT SOLD SEPARAT

TERMINAL - eyelet, No. 10, buy locally

1шт.

3

R29794

CABLE

ASSEMBLY - electrical

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL - eyelet, 5/16", buy locally

1шт.

R29793

GLOW PLUG

SOLENOID AND BRACKET ASSEMBLY - cold start, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 7 & 8 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

9

R30786

GASKET

- fluid container

1шт.

10

A45687

CLAMP

HOLDER - fluid container

1шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

12

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

15

B17072

START SPRAY FLUID

FLUID - starting, 16 fluid ounces (473 ml)

1шт.

16

R30812

LINK

EXTENSION - holder

2шт.

17

D43839

CLAMP

- tube

2шт.

18

R27253

PLASTIC-RUBBER TUBE,0.125" OD x 46" L

TUBE - nylon, 1/8" (3 mm) OD x 46" (1168 mm) long, cut as required

1шт.

A145069

NOZZLE INJECTION

INJECTOR ASSEMBLY - models without turbocharger, Includes: Ref. 19 - 21

1шт.

A145070

NOZZLE INJECTION

INJECTOR ASSEMBLY - models with turbocharger, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

INJECTOR - A145069 and A145070 assemblies

1шт.

20

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

21

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

22

REF

INSTRUCTION

PLUG - reducing, see intake manifold, Figure 020 or 022

1шт.

23

REF

INSTRUCTION

GASKET - plug, see intake manifold, Figure 020 or 022

1шт.

24

F21342

ELECTRICAL WIRE

WIRE - push button to circuit breaker

1шт.
