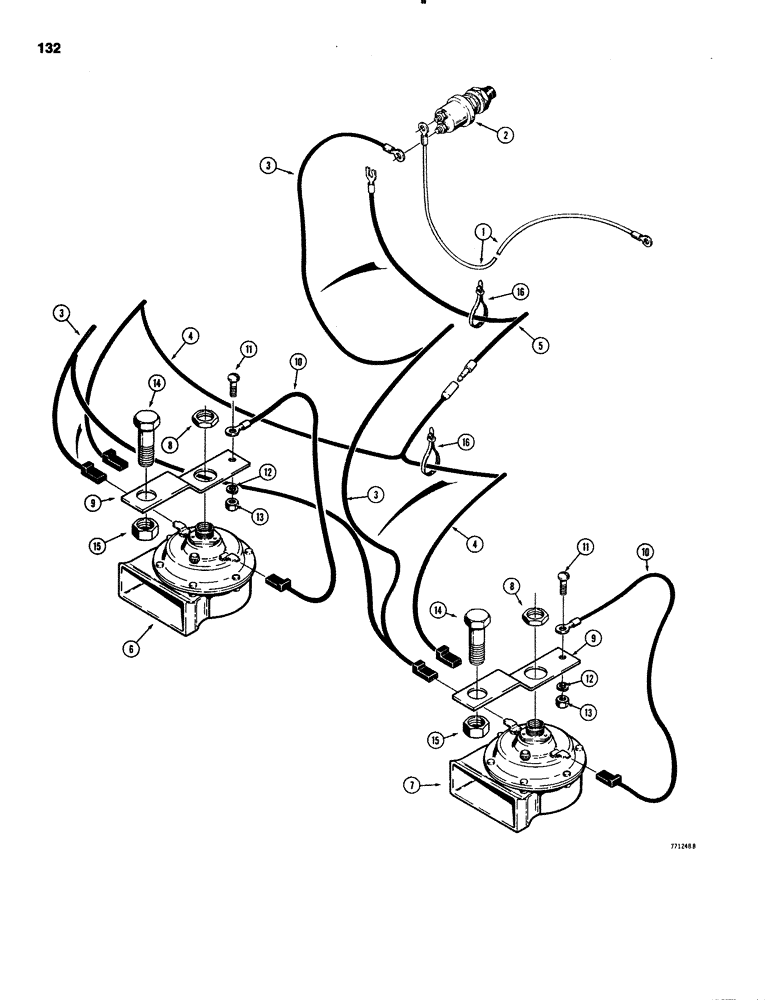

Запчасти Case 1150C (132) - HORN (04) - ELECTRICAL SYSTEMS

1

F21342

ELECTRICAL WIRE

WIRE - to ammeter terminal

1шт.

2

D34924

SWITCH

- push button, horn

1шт.

3

R41111

ELECTRICAL WIRE

WIRE - push button to horns, no longer used, service with R46014 and R46015 wires

1шт.

4

R46014

ELECTRICAL WIRE

WIRE, Serial Range: --horns

1шт.

5

R46015

ELECTRICAL WIRE

WIRE - from push button

1шт.

6

D77650

HORN

- right-hand, includes horn, ref. 8 nut, and a bracket that is not used on 1150C

1шт.

7

R45461

HORN

- left-hand, includes horn, ref. 8 nut, and a bracket that is not used on 1150C, Includes: Ref. 8

1шт.

8

L30866

LOCK NUT

- special, D77650 and R45461 horns

1шт.

9

R39064

BRACKET, SUPPORTING

BRACKET - horn mounting

2шт.

10

R36131

ELECTRICAL WIRE

WIRE - ground

2шт.

11

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - slotted, No. 10 - 24 NC x 1/2"

2шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

2шт.

14

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Used without brush sweeps Hex, 3/4"-10 x 1 1/2", G5

2шт.

14

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

used with brush sweeps Hex, 3/4"-10 x 2", G8

2шт.

15

25-1012

NUT,3/4"-10, G5

2шт.

16

R40745

STRAP

TIE STRAP - wires

1шт.
