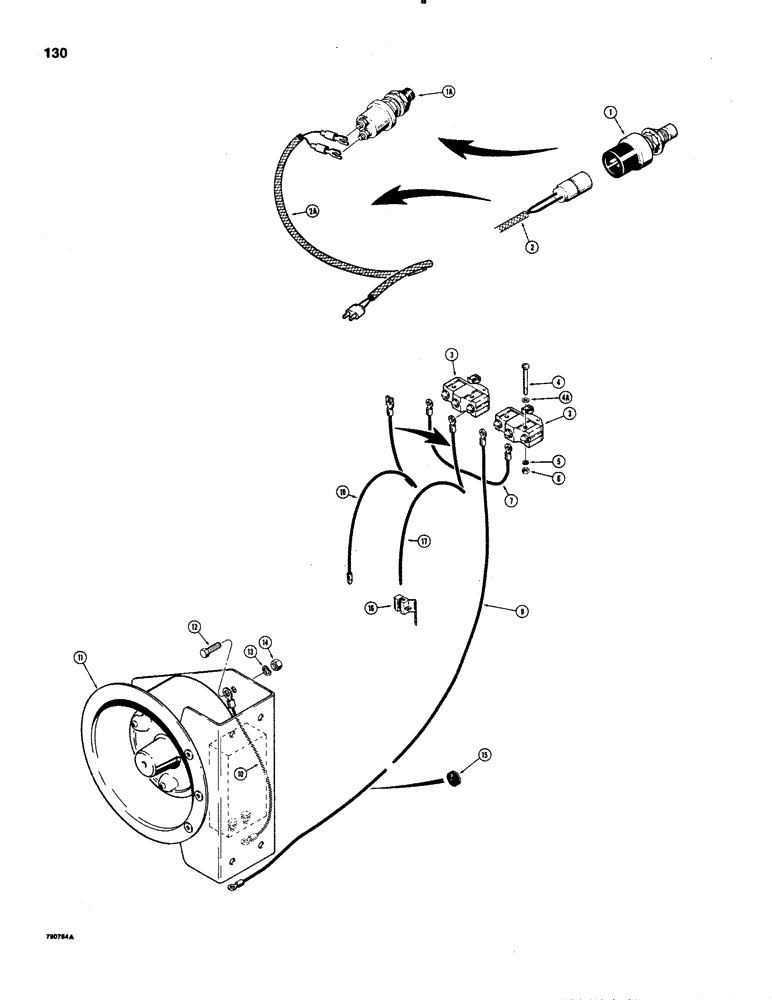

Запчасти Case 1150C (130) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

R40432

SWITCH

- push button start, uses plug connection, if used

1шт.

1a

D34924

SWITCH

- push button start, uses spade-type connection, if used

1шт.

2

R40985

ELECTRICAL WIRE

WIRE - push button switch with plug connector, if used

1шт.

2a

R27209

ELECTRICAL WIRE

WIRE - push button switch with spade-type connectors, if used

1шт.

3

L54683

SWITCH

- backup alarm

2шт.

4

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- Fillister head, slotted, No. 6 - 32 NC x 1-1/4"

4шт.

4a

195-7

WASHER,#6

- flat, No. 6

4шт.

5

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

4шт.

6

129-15

NUT,#6-32

4шт.

7

R32483

ELECTRICAL WIRE

WIRE - alarm switch to alarm switch

1шт.

8

R46516

ELECTRICAL WIRE

WIRE - alarm switch to alarm, 88" (2235 mm) long, may replace 72" (1829 mm) long wire on some models

1шт.

10

R41006

ELECTRICAL WIRE

WIRE - ground, alarm, 4" (102 mm) long

1шт.

11

S223033

BUZZER

BACKUP ALARM - electrical

1шт.

12

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

25-104

NUT,1/4"-20, G5

3шт.

15

A23870

GROMMET

- wire

1шт.

16

R41086

CONNECTOR, ELEC

CONNECTOR - electrical, used with ref. 17 wire, if used

1шт.

17

R40987

WIRE - backup alarm switch, splices into main wiring harness, if used

1шт.

18

R43836

ELECTRICAL WIRE

WIRE - backup alarm switch, connects to main wiring harness connector (see rear wiring figures), if used

1шт.
