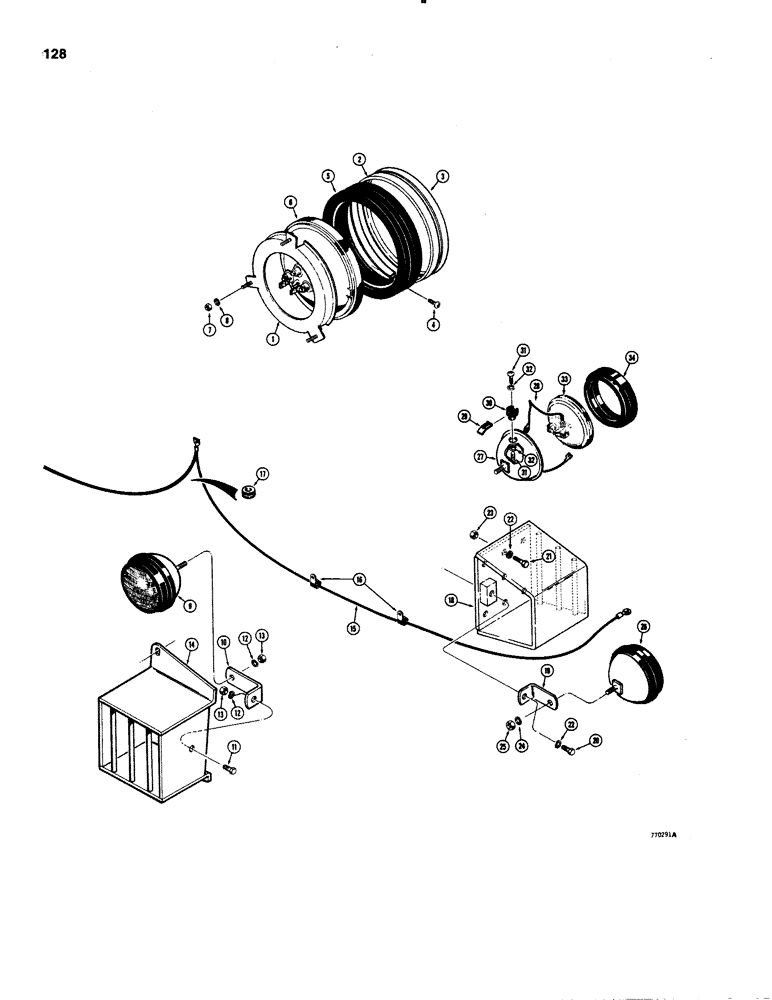

Запчасти Case 1150C (128) - LAMPS, HEAD LAMPS, REAR LAMP, SIDE LAMPS, L45149 LAMP ASSY (04) - ELECTRICAL SYSTEMS

D41701

LAMP

HEAD LAMP ASSEMBLY - 24 volt, Includes: Ref. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

FRAME - lamp

1шт.

2

A40693

HUB CAP

RETAINING RING - bulb, rear

1шт.

3

A40694

RETAINER

RETAINING RING - bulb, front

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

MACHINE SCREW - round head slotted, No. 10 - 24 NC x 3/4", plated

2шт.

5

A40695

RING

RETAINER - lamp, rubber

1шт.

6

D37920

LAMP

BULB - sealed beam, 24 volt, No. 4578

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

6шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

9

L45149

HEADLIGHT

LAMP ASSEMBLY - rear, 24 volt, parts list below

1шт.

10

R30019

BRACKET

- lamp mounting

1шт.

11

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

14

R30018

GUARD

- rear lamp

1шт.

15

R27912

HARNESS

- electrical, loader models

1шт.

15

R27721

HARNESS

- electrical, dozer models

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- behind instrument panel, loader models

2шт.

17

D42106

GROMMET

- loader models

1шт.

18

R27720

GUARD ASSY.

GUARD - lamp

2шт.

19

R27714

BRACKET

- lamp mounting

2шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Dozer models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Loader models Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

6шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

26

L45149

HEADLIGHT

LAMP ASSEMBLY - side, 24 volt, parts list below, Includes: Ref. 27 - 34

2шт.

L45149

HEADLIGHT

LAMP ASSEMBLY - 24 volt, Includes: Ref. 27 - 34

1шт.

27

NSS

NOT SOLD SEPARAT

BODY AND WIRE - lamp

1шт.

28

A40033

ELECTRICAL WIRE

WIRE -, Serial Range: bulb-insulator

1шт.

29

10927

SPRING

BRACKET - retainer

1шт.

30

B50293

TERMINAL CONNECTOR

- lamp

1шт.

31

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

MACHINE SCREW - round head slotted, No. 8 - 32 NC x 1/4"

2шт.

32

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

33

L10499

LAMP

BULB - sealed beam, 24 volt, No. 4589

1шт.

34

D31441

RETAINER

-, Serial Range: bulb-body

1шт.
