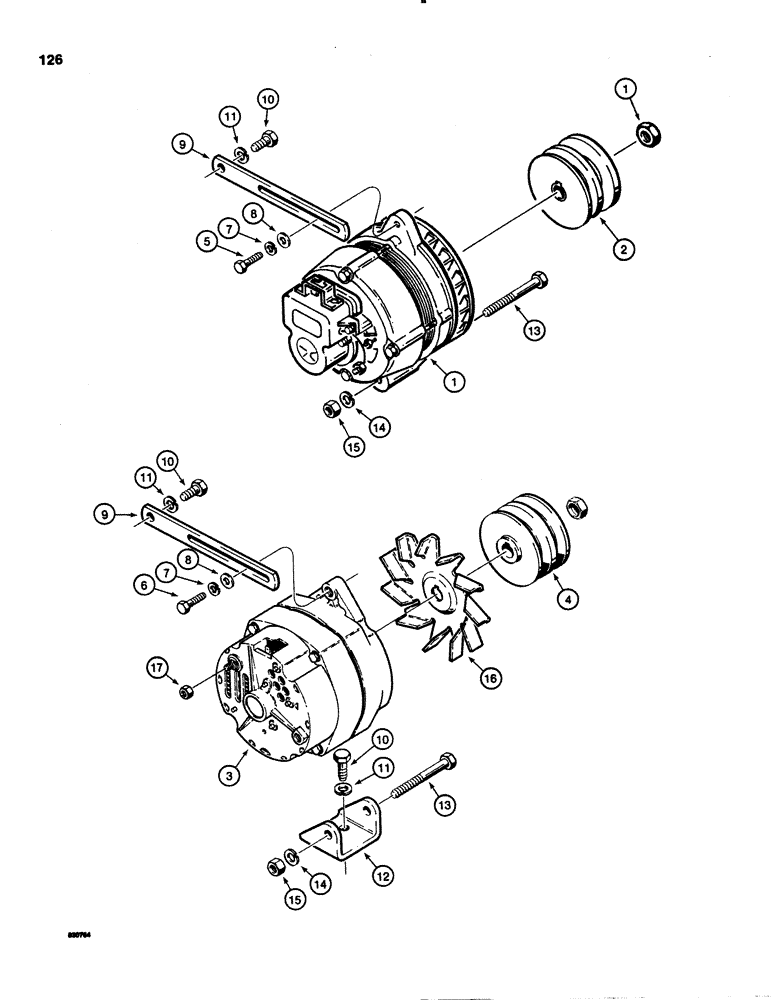

Запчасти Case 1150C (126) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

R36588

ALTERNATOR

- 16 amp, 24 volt, Motorola No. 70D44966E01, parts list Figures 080 and 082, not shown, if used

1шт.

1

R36587

ALTERNATOR

- 42 amp, 24 volt, Motorola No. 8HC3017G, parts list Figures 084 and 086, if used

1шт.

2

A41361

PULLEY

- Motorola alternators only

1шт.

3

L101465

ALTERNATOR

- 40 amp, 24 volt, Delco No. 1103123, parts list Figure 088, if used

1шт.

4

L59716

PULLEY

- Delco alternator only

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Motorola alternators only Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

6

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm, grade 8, Delco alternator only

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

9

R40121

STRAP

- alternator adjusting

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

A160391

BRACKET

- alternator mounting

1шт.

13

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

16

A43384

FAN

- Delco alternators only

1шт.

17

825-1006

NUT,M6, Cl 8

- hex, 6 mm - 1, grade 8.8, output terminal, Delco alternator only

1шт.
