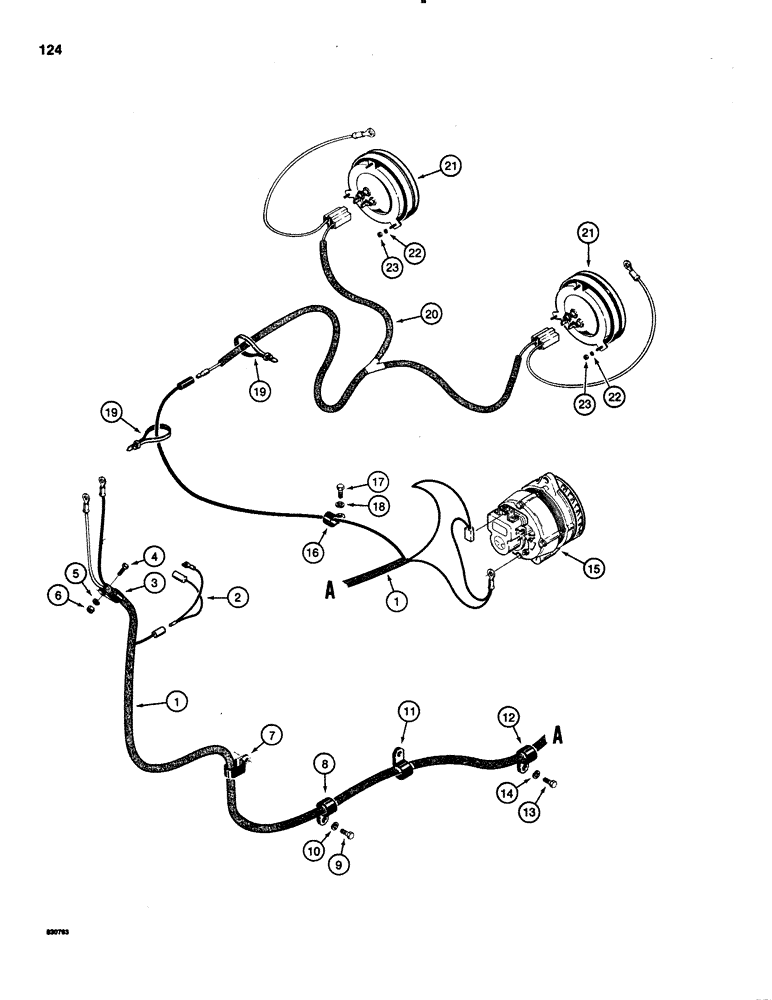

Запчасти Case 1150C (124) - FRONT ELECTRICAL WIRING, INSTRUMENT PANEL TO ALTERNATOR & HEAD LAMPS, USED ON TRAC SN 7308701 & AFT (04) - ELECTRICAL SYSTEMS

1

R45666

HARNESS

- front wiring

1шт.

2

R43547

CABLE

WIRE - with diode, front harness to pressure switch

1шт.

3

49838

CLAMP

- harness, at instrument panel

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

7

D49498

CLAMP

- harness, uses manifold hardware

1шт.

8

S86530

CLAMP

- harness, at circuit breaker mounting plate

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

49845

CLAMP

- harness, uses manifold hardware

1шт.

12

49845

CLAMP

- harness

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

REF

INSTRUCTION

ALTERNATOR - for correct assembly and components see Figures 080 - 088, for mounting see Figure 126

1шт.

16

NLS

NO LONGER SERVICED

- harness, above alternator

1шт.

17

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

18

92-7

LOCK WASHER,7/16"

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

D35912

ELECTRICAL WIRE

HARNESS - head lamps

1шт.

21

D41701

LAMP

HEAD LAMP ASSEMBLY - parts list Figure 128

2шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

23

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

6шт.
