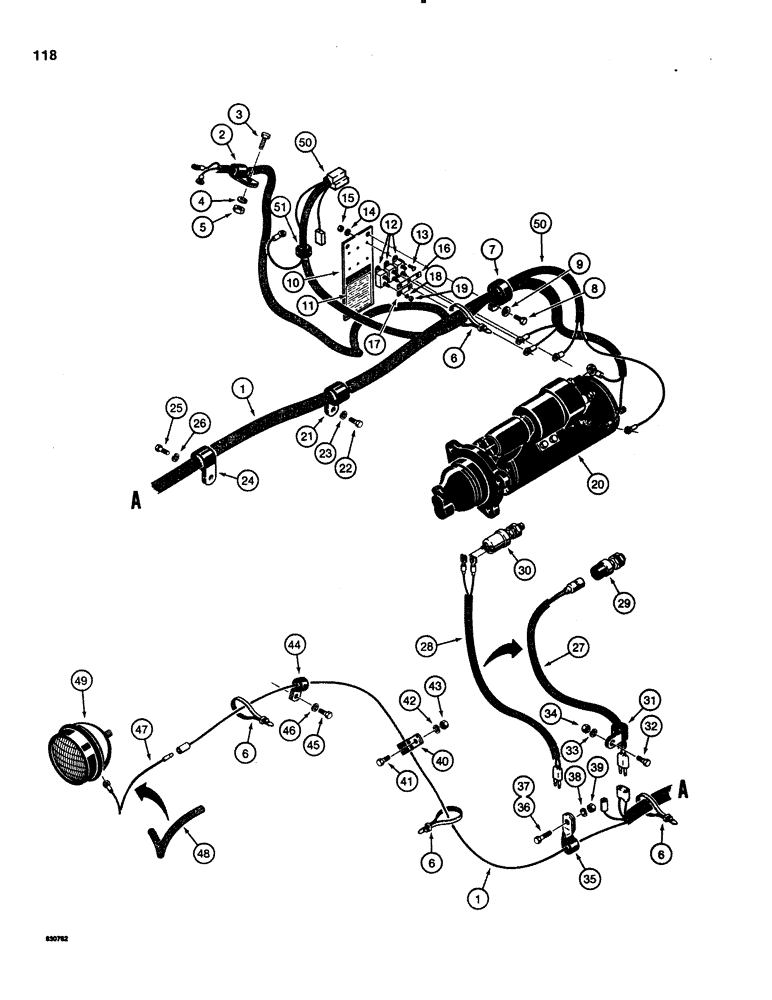

Запчасти Case 1150C (118) - REAR ELECTRICAL WIRING, REAR WIRING HARNESS AND CIRCUIT BREAKERS, USED ON TRACTOR SN 7308701 & AFTER (04) - ELECTRICAL SYSTEMS

1

R45935

HARNESS - rear wiring

1шт.

2

49845

CLAMP

- harness, at instrument panel

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

7

S86530

CLAMP

- harness, at circuit breaker plate

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

R45469

PLATE

- circuit breaker and decal mounting, Includes: Ref. 11

1шт.

11

321-5974

DECAL

- booster battery at starter

1шт.

12

R45475

BREAKER

CIRCUIT BREAKER - 40 amp, 24 volt, two used without cab, three used with cab

2-3шт.

13

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW - Phillips head, No. 8 - 32 NC x 3/8", plated

4-6шт.

14

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4-6шт.

15

129-16

NUT,#8-32

4-6шт.

16

R45467

PLATE ASSY.

PLATE - circuit breaker retaining, with three holes, upper

1шт.

17

R45468

PLATE ASSY.

PLATE - circuit breaker retaining, with two holes, lower

1шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

19

129-37

NUT,#10-32

2шт.

20

REF

INSTRUCTION

STARTER - for correct assembly and components see Figures 090 - 102, for mounting hardware see Figure 116

1шт.

21

S86530

CLAMP

- harness, at brake mounting frame

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

S86530

CLAMP

- harness to main frame, loader models only

1шт.

25

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Loader models only Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

loader models only 3/8"

1шт.

27

R40985

ELECTRICAL WIRE

WIRE - starter switch, with plug connector, if used

1шт.

28

R27209

ELECTRICAL WIRE

WIRE - starter switch, with spade-type connector, if used

1шт.

29

R40432

SWITCH

- starter, push button, uses plug connection, if used

1шт.

30

D34924

SWITCH

- starter, push button, uses spade-type connection,if used

1шт.

31

49838

CLAMP

- starter switch wire

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

33

92-5

LOCK WASHER,5/16"

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

35

R43926

CLAMP

- twist, below key switch

1шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Dozer models only (at dozer tube bracket) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Loader models only Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8" -16 NC

1шт.

40

R14668

CLAMP

- below key switch, loader models only

1шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

44

R14668

CLAMP

- harness

1шт.

45

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.

47

A14733

ELECTRICAL WIRE

WIRE - rear lamp

1шт.

48

D42919

LOOM

- rear lamp wire

1шт.

49

L45149

HEADLIGHT

LAMP - rear, parts list and mounting parts on Figure 128

1шт.

50

R46028

HARNESS - circuit breaker to cab wiring harness, used on non-pressurized cabs only

1шт.

For cab wiring harness, see Figure 432 or 450.

1шт.

50

R44262

HARNESS

- circuit breaker to cab wiring harness, used on pressurized cabs only

1шт.

For cab wiring harness, see Figure 432 or 450.

1шт.

51

353-702

GROMMET

- rubber, 7/8", R46028 harness at instrument panel, non-pressurized cabs only

1шт.

51

353-703

GROMMET

- rubber, 5/8", R44262 harness at instrument panel, pressurized cabs only

1шт.
