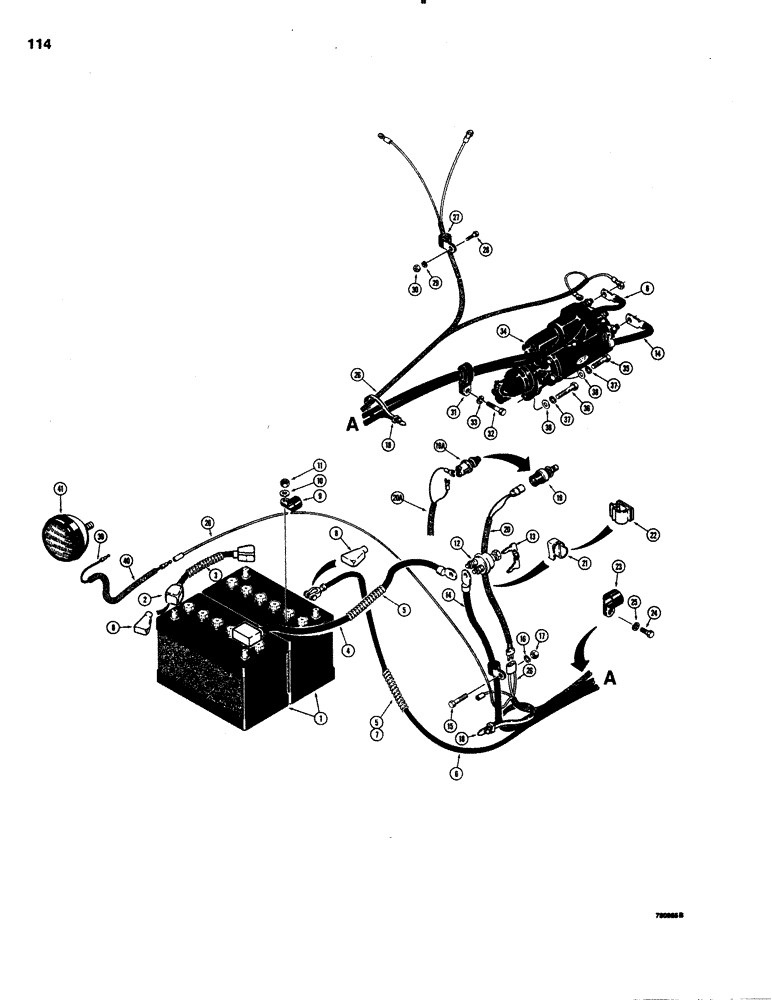

Запчасти Case 1150C (114) - REAR ELECTRICAL WIRING, INSTRUMENT PANEL TO STARTER, BATTERY USED B4 TRAC SN 7308701 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BATTERY - see Figure 112 for battery and mounting parts

2шт.

2

R47202

CABLE

- jumper, batteries, with teminal covers, may replace R27210 cable without covers

1шт.

3

R40777

CONDUIT

- plastic, battery jumper cable

1шт.

4

R47203

CABLE

- battery, negative, with terminal covers, may replace R26953 cable without covers

1шт.

5

R40572

CONDUIT

- plastic, 25" (635 mm) long, negative and positive battery cables, at battery

2шт.

6

R40473

CABLE

- battery, positive

1шт.

7

R40573

LOOM

CONDUIT - positive battery cable, 49" (1245 mm) long, use two to cover length of cable up to the engine

2шт.

8

A27072

COVER

- terminal, rubber, if used

2шт.

9

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- negative battery cable and rear harness at batteries

1шт.

10

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

11

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

12

R47440

SWITCH

KEY SWITCH - ignition, includes keys, Includes: Ref. 13

1шт.

13

R30074

SET

KEY - switch, set of two

1шт.

14

R40474

CABLE

- ground, key switch to starter, includes clamp

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

R40432

SWITCH

- starter, push button, uses plug connection, if used

1шт.

19a

D34924

SWITCH

- starter, push button, uses spade-type connection, if used (S/B R34924)

1шт.

R40985

ELECTRICAL WIRE

WIRE - starter switch, with plug connector, if used

1шт.

20a

R27209

ELECTRICAL WIRE

WIRE - starter switch, with spade-type connector, if used

1шт.

21

F43611

CLIP

- wire, if used

1шт.

22

F43611

CLIP

- wire, adhesive, if used

1шт.

23

S86530

CLAMP

- cables and wire at brake mounting frame

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

REF

INSTRUCTION

HARNESS - without connector for backup alarm, no longer available, order R44049 harness (see next ref.) and R43836 backup alarm wire (see Figure 130), not shown

1шт.

26

R44049

HARNESS

- rear, with connection for backup alarm

1шт.

27

49845

CLAMP

- harness, at instrument panel

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

31

D40471

CLAMP

- cables and harnesses, above starter

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

33

92-5

LOCK WASHER,5/16"

1шт.

34

REF

INSTRUCTION

STARTER - for correct assembly and components see Figures 090 - 102

1шт.

35

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

36

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

37

92-8

LOCK WASHER,1/2"

3шт.

38

R24323

WASHER

- flat, 1/2"

3шт.

39

A14733

ELECTRICAL WIRE

WIRE - rear lamp

1шт.

40

D42919

LOOM

- rear lamp wire

1шт.

41

L45149

HEADLIGHT

LAMP - rear, parts list and mounting parts on Figure 128

1шт.
