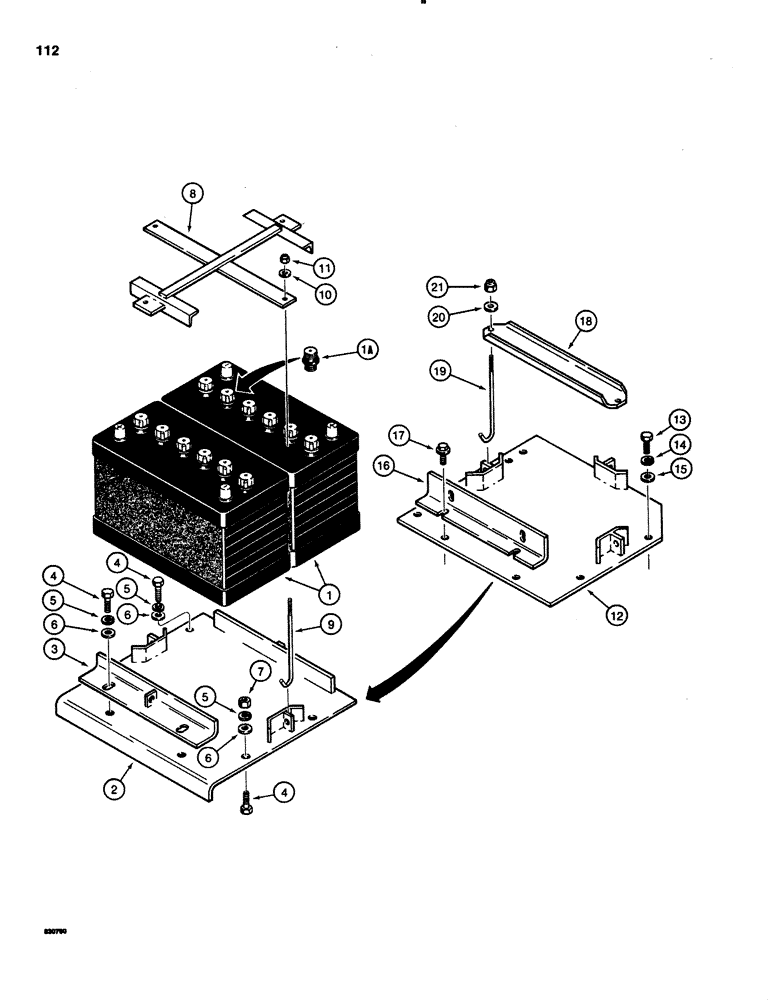

Запчасти Case 1150C (112) - BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

12 volt, service replacement

2шт.

When replacing battery, use the six nonspill caps from the existing battery or order six new nonspill caps.

1шт.

1a

A60553

CAP

battery, nonspill

12шт.

When replacing battery, use the six nonspill caps from the existing battery or order six new nonspill caps.

1шт.

2

REFERENCE

SPARE PART

PLATE - battery support, with weld nuts, used on models w/ 4 j-type bolts

1шт.

If replacing Ref. 2 or 8, you must use Ref. 12 (plus two 25-108 nuts) and Ref. 18. These items must be used together in sets as shown.

1шт.

3

R27660

BRACKET

used on models w/ 4 j-type bolts

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used on models w/ 4 j-type Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

5

92-8

LOCK WASHER,1/2"

used on models w/ 4 j-type bolts 1/2"

6шт.

6

195-33

WASHER,1/2"

flat, , used on models w/ 4 j-type bolts 1/2"

6шт.

7

25-108

NUT,1/2"-13, G5

hex, 1/2" - 13 NC, used on models w/ 4 j-type bolts

2шт.

8

R27662

BRACKET

cross, top, used on models w/ 4 j-type bolts

1шт.

If replacing Ref. 2 or 8, you must use Ref. 12 (plus two 25-108 nuts) and Ref. 18. These items must be used together in sets as shown.

1шт.

9

R27652

ROD

used on models w/ 4 j-type bolts

4шт.

10

195-21

WASHER,5/16"

- flat, , Used on models w/ 4 j-type bolts 5/16"

4шт.

11

131-651

NUT,5/16"-18, GB

NUT - hex, self, 5/16" - 18 NC, used on models w/ 4 j-type bolts

4шт.

12

R45628

PLATE

battery support, without weld nuts, used on models w/ 2 j-type bolts

1шт.

If replacing Ref. 2 or 8, you must use Ref. 12 (plus two 25-108 nuts) and Ref. 18. These items must be used together in sets as shown.

1шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on models w/ 2 j-type Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

used on models w/ 2 j-type bolts 1/2"

4шт.

15

195-33

WASHER,1/2"

flat, , used on models w/ 2 j-type bolts 1/2"

4шт.

16

R46489

ANGLE

BRACKET - battery retaining, used on models w/ 2 j-type bolts

1шт.

17

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Used on models w/ 2 j-type bolts Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

18

R46490

BRACKET

top, battery retaining, used on models w/ 2 j-type bolts

1шт.

If replacing Ref. 2 or 8, you must use Ref. 12 (plus two 25-108 nuts) and Ref. 18. These items must be used together in sets as shown.

1шт.

19

R27652

ROD

used on models w/ 2 j-type bolts

2шт.

20

195-21

WASHER,5/16"

- flat, , Used on models w/ 2 j-type bolts 5/16"

2шт.

21

131-351

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16" - 18 NC, used on models w/ 2 j-type bolts

2шт.
