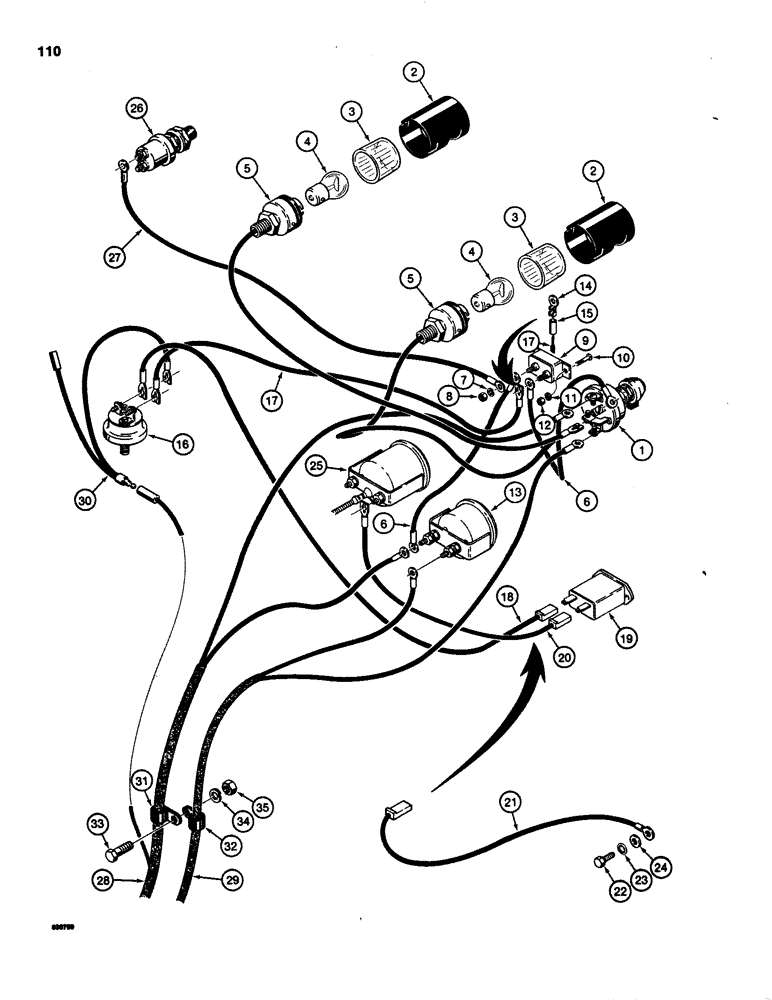

Запчасти Case 1150C (110) - INSTRUMENT PANEL WIRING, USED ON TRACTOR SN 7308701 AND AFT (04) - ELECTRICAL SYSTEMS

1

R27539

SWITCH

- lamp

1шт.

D35815

LAMP

ASSEMBLY - instrument panel, Includes: Ref. 2 - 5

2шт.

2

D37918

COVER

- lamp

1шт.

3

D37919

LENS

- lamp

1шт.

4

R19897

BULB

- No. 623

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - includes wire

1шт.

6

51200220

ELECTRICAL WIRE

WIRE - circuit breaker, instrument panel

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

8

129-37

NUT,#10-32

2шт.

9

L104328

BREAKER

CIRCUIT BREAKER - 25 amp, 24 volt

1шт.

10

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

- round head, slotted, No. 8-32 NC x 3/8", plated

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

12

129-16

NUT,#8-32

2шт.

13

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

14

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - electrical

1шт.

15

223-83

SLEEVE

- insulating

1шт.

16

D28798

SWITCH

PRESSURE SWITCH - engine oil, includes wire, Includes: Ref. 17

1шт.

17

D28797

ELECTRICAL WIRE

WIRE - switch, 18" (457 mm) long, use with refs. 14 and 15, may replace 11" (279 mm) long wire with spade terminals used in production

1шт.

18

R27252

HARNESS

WIRE - pressure, Serial Range: switch-hourmeter

1шт.

19

L49907

GAUGE

HOURMETER - engine

1шт.

20

R38765

ELECTRICAL WIRE

WIRE - hourmeter ground, to engine temperature gauge, if used, this is a 40" (1016 mm) long wire used to service a 9" (229 mm) long wire used in production, if used

1шт.

21

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, to main frame, 14"(356 mm) long, if used

1шт.

22

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

23

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , If used Int Tooth, 1/4"

1шт.

24

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, if used

1шт.

25

R42267

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

26

D34924

SWITCH

PUSH BUTTON - ether injection

1шт.

27

F21342

ELECTRICAL WIRE

WIRE - push button to circuit breaker

1шт.

28

REF

INSTRUCTION

HARNESS - front wiring, see Figure 124

1шт.

29

REF

INSTRUCTION

HARNESS - rear wiring, see Figure 118

1шт.

30

R43547

CABLE

WIRE - with diodes, pressure switch to main wiring harness

1шт.

31

49838

CLAMP

- front harness

1шт.

32

49845

CLAMP

- rear harness

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
