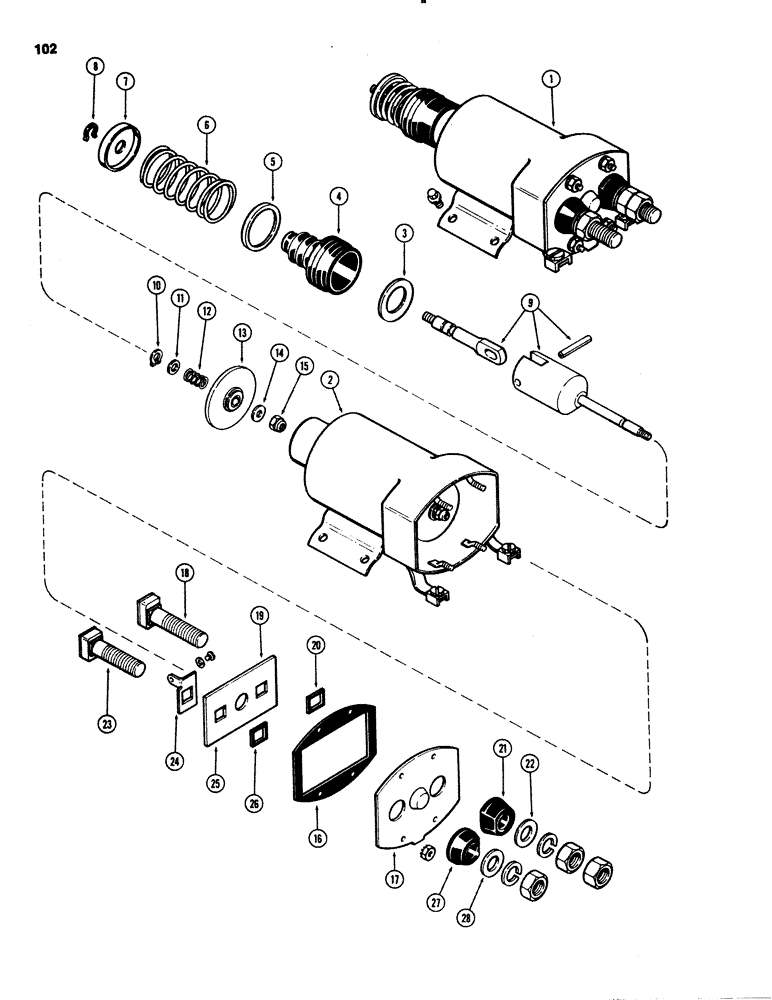

Запчасти Case 1150C (102) - SOLENOID (04) - ELECTRICAL SYSTEMS

1

A48338

SOLENOID

ASSEMBLY - Prestolite #SAT-4105 (Serviced as complete assembly only), Includes: Ref. 2 - 28

1шт.

1

A45656

SOLENOID

ASSEMBLY - (Prestolite #SAT-4103) (Order A48338), Includes: Ref. 2 - 28

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY

1шт.

A47589

KIT

SPRING KIT - solenoid return, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - solenoid

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - yoke end (rubber boot)

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - return spring, inner

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - solenoid return

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - return spring, outer

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, spring kit retaining

1шт.

9

A47590

KIT

SOLENOID KIT - (Includes ref. 10)

1шт.

A47588

ELEC CONNECTOR

CONTACT KIT - solenoid, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap, contact stop

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - No. 10 flat

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - contact return

1шт.

13

NSS

NOT SOLD SEPARAT

CONTACT ASSEMBLY

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - 1/4 inch ID

1шт.

15

NSS

NOT SOLD SEPARAT

NUT - contact kit retaining

1шт.

A47583

KIT

COVER KIT, Includes: Ref. 16 - 28

1шт.

16

A47585

GASKET

KIT - solenoid cover (Set of 4)

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

A47586

TERMINAL CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

TERMINAL - battery stud

1шт.

19

NSS

NOT SOLD SEPARAT

INSULATION - terminal plate

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - battery terminal

1шт.

21

NSS

NOT SOLD SEPARAT

INSULATOR - battery terminal

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - battery terminal (steel)

1шт.

A47587

KIT

TERMINAL KIT - starter, Includes: Ref. 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

TERMINAL - starter stud

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - terminal contact

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATION - terminal plate

1шт.

26

NSS

NOT SOLD SEPARAT

SPACER - starter terminal

1шт.

27

NSS

NOT SOLD SEPARAT

INSULATOR - starter terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - starter terminal (steel)

1шт.
